Quick Learner from Medford, NY

Sep 16, 2024 10:47 am

I am looking for part that window hooks into. Thank you

2 user uploaded images

6 Replies

Casey from SWISCO

Sep 19, 2024 11:34 am

Hello,

It sounds like you may be looking for new pivot shoes. We can't confirm the correct replacement with the hardware still installed but the 15-216 would be a good place to start. This shoe is often used with the 15-044 balance attachment. Take a look and compare the specifications to yours. Thanks for posting.

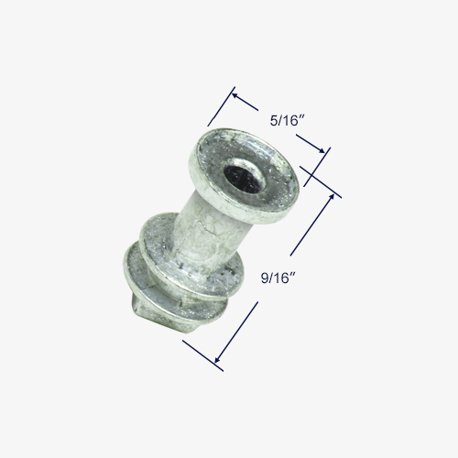

Alternate image for 15-216

Alternate image for 15-044

Quick Learner from Medford, NY

Sep 20, 2024 10:35 am

Thanks for replying. Those are indeed the parts. Is there a video on replacing the shoe?

Casey from SWISCO

Sep 20, 2024 12:30 pm

See our pivot shoe removal video below. The pivot shoe shown in the video is a different style and is used with a different type of balance but the removal process would be the same.

Quick Learner from Medford, NY

Sep 22, 2024 9:11 am

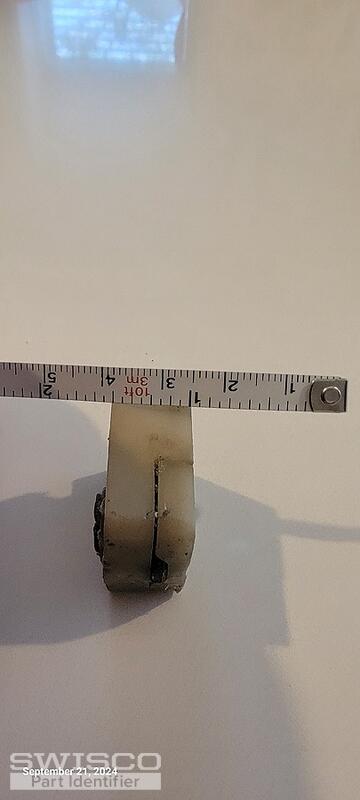

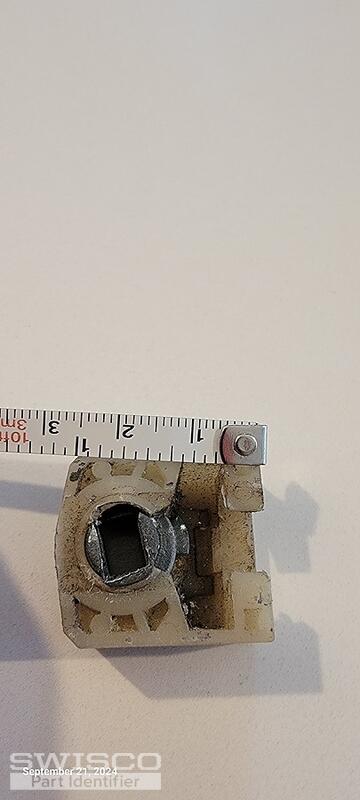

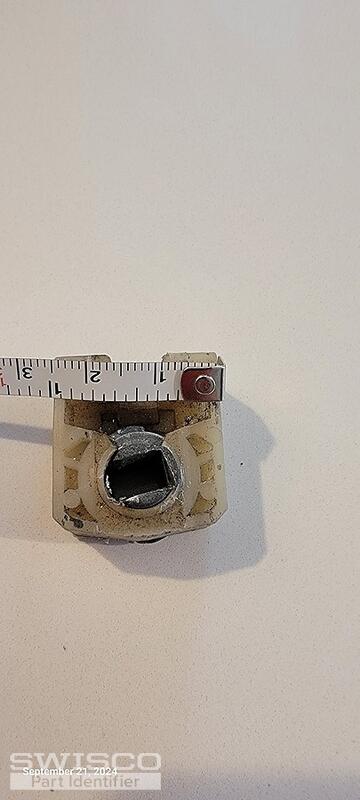

Hello. Thanks for video and I was able to remove existing piece. Attached are pictures showing dimensions. I can't seems to locate something to replace it. Thanks for your help.

4 user uploaded images

Casey from SWISCO

Sep 23, 2024 1:39 pm

Thanks for getting back to us with additional photos. You should be able to use your 15-044 attachment with the 15-167 pivot shoe. The height isn't a big deal as long as the width and thickness match. Take a look and see what you think.

Alternate image for 15-167
