Window part

Quick Learner from Pittsburgh, PA
Oct 30, 2016 10:27 pm

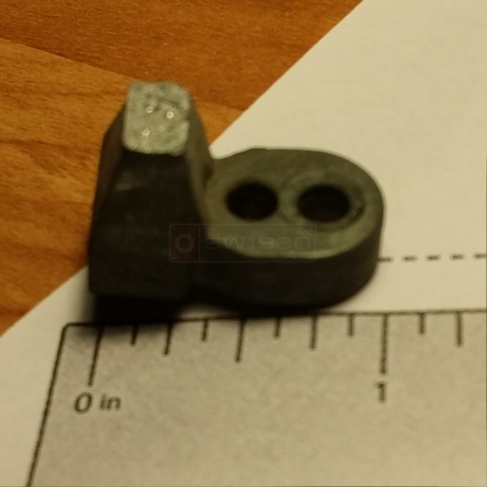

This part appears to be cast aluminumm (broken in two pieces), and it's attached via screws to the bottom/lower slash.

It goes on the bottom of the sash, and the slot fits into a sliding bracket that is inside the window frame.

Thanks!
User submitted image of their window hardware.
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
Nov 1, 2016 2:00 pm
SWISCO
EXPERT
Hello! There are a lot of possible replacement options, but it would depend on the style of your pin that as broken off. I've assembled a list for you to consider, which can be viewed on the right hand side of this page.
+ Add a Comment
Products and resources found in this discussion
RH Cam Pivot, 7/16"
RH Cam Pivot, 7/16"
17-035
$4.97
LH Cam Pivot, 9/16"
LH Cam Pivot, 9/16"
17-036
$2.95
RH Cam Pivot, 9/16"
RH Cam Pivot, 9/16"
17-037
$2.95
LH Cam Pivot, 3/8"
LH Cam Pivot, 3/8"
17-038
$1.97
RH Cam Pivot, 3/8"
RH Cam Pivot, 3/8"
17-039
$1.97
