Window part needed

Landlord from Kerrville, TX

Apr 2, 2020 6:55 pm

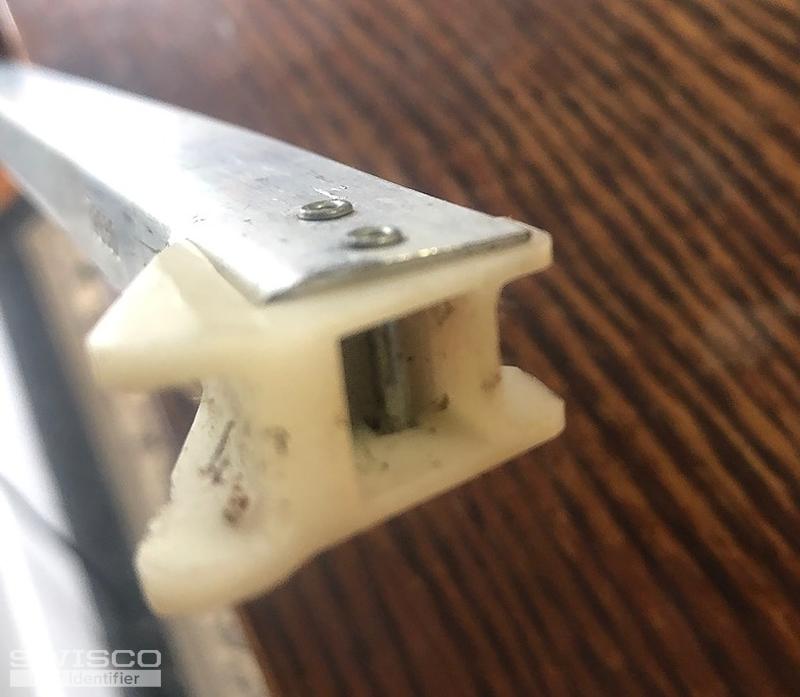

Looking for the name of this part from a Jordan window and what other part might be needed along the one pictured to make the repairs. Numbers on the part are 2830

4 Replies

Casey from SWISCO

Apr 3, 2020 8:33 am

I am confident we can help you locate the replacement you need. Before we start, is there any way we can see two more photos showing the nylon fittings on both ends? I tried zooming in on the photo and I could not see the details needed in order to make a recommendation. The nylon fittings on the balance help determine which Series balance will work in place of the existing one.

Landlord from Kerrville, TX

Apr 5, 2020 11:39 am

Hope this helps

4 user uploaded images

Bob from SWISCO

Apr 6, 2020 10:09 am

Thanks for getting back to me. This looks like an S390-29, or perhaps an S351-29. The only difference between these two balances is the depth of the bottom nylon shoe, or what can be thought of as the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. You will need a stamp option of 2830.
