Window part replacement needed

Question

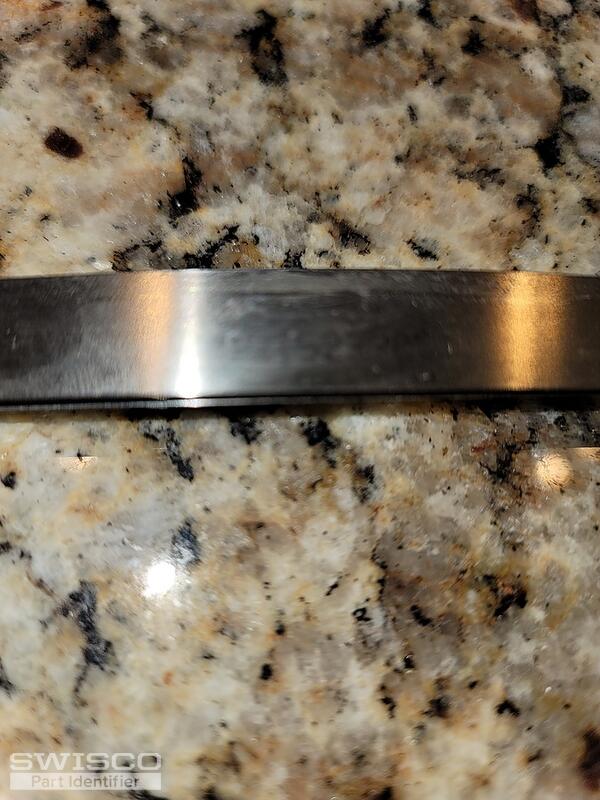

Hi I have two windows I found needing new balance coils, tilt latches, and maybe even anchors and spiral pivot locks. I just need help finding which parts I should buy. Attached are the broken ones in the windows currently.

Emily · Accepted Answer

Hello there!

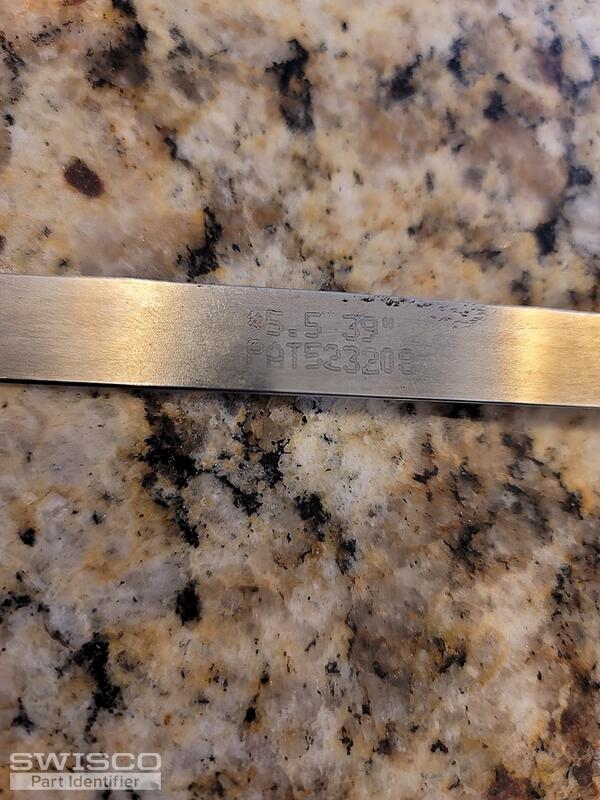

Your pivot shoe looks like a match for the 15-111 which uses the 1/2" S160 coil balances. Since the old spring is stamped #5.5, see the S160-05 5.5-pound spring.

As for the tilt latch, take a look at the 26-243 and 26-244 to see if the specifications match what you need.
