Pivot Shoe Replacement

Quick Learner from Iowa

Dec 26, 2018 2:02 pm

I am looking for a replacement part for some vinyl double hung windows. The part is in one of the two photos. It is the bottom piece that the window locks into with the gray pegs. I also included the only markings on the windows.

Thanks

Derek

1 user uploaded image

4 Replies

Bob from SWISCO

Dec 26, 2018 3:32 pm

Thanks for contacting SWISCO. I think we can help you replace this pivot shoe, but I'm going to need a little more information first. Could you provide a photo of it removed from your window, along with the width and thickness? This will help us narrow down what you might need. If you need help removing your pivot shoe, check out the video below.

Quick Learner from Iowa

Dec 27, 2018 10:18 am

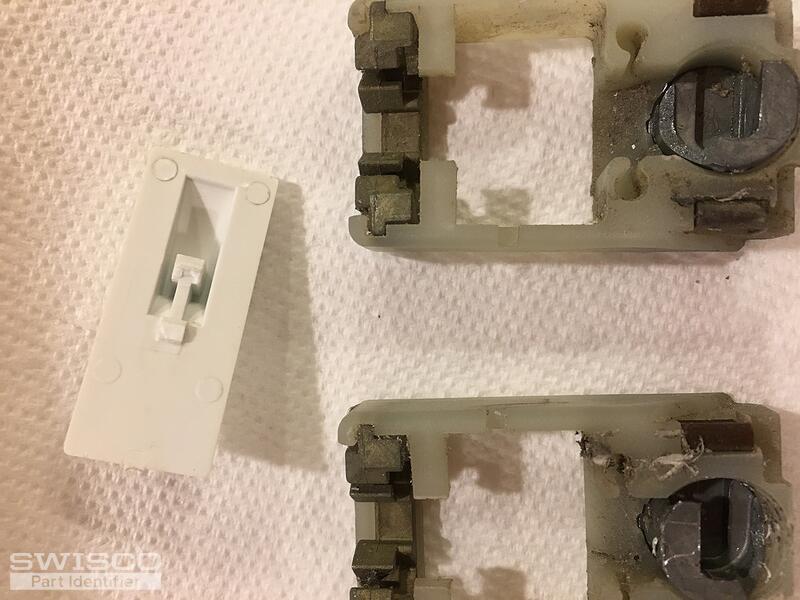

Here are some photos of the removed parts. The dimensions are 2 1/8 tall, 1 1/4 wide and 1/2 inch deep.

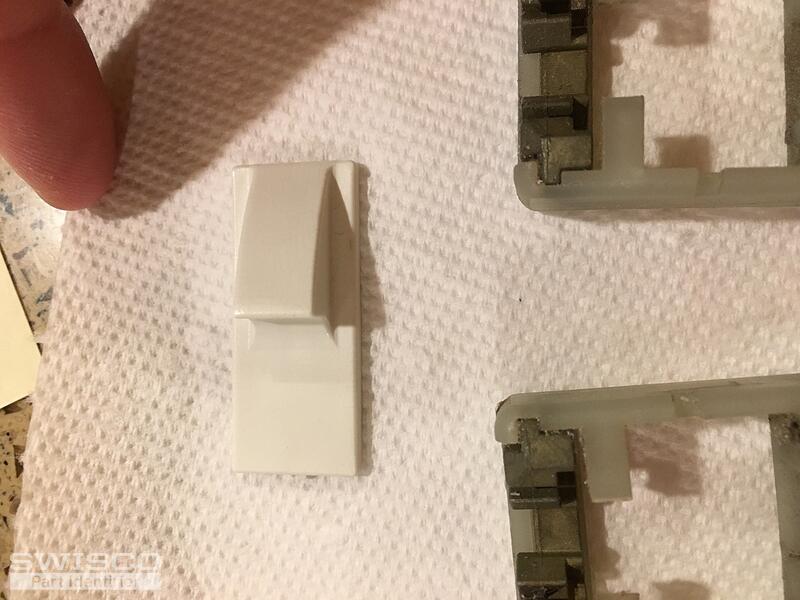

Also, do you sell replacement latches to tilt out the windows. See pic. They are 1 5/8 by 5/8.

Thanks

Derek

4 user uploaded images

Paul from SWISCO

Dec 28, 2018 11:40 am

Greetings. The pivot shoe will be our 15-178 with a brown brake. As for the top tilt latches, did you mean 2-5/8" long? If so, you will need the 26-243 and 26-244. Our top tilt latches don't have the extra top finger lever your old parts had, but ours will still work.
