Window parts

A professional from New York says:
January 7, 2021
Simonton windows

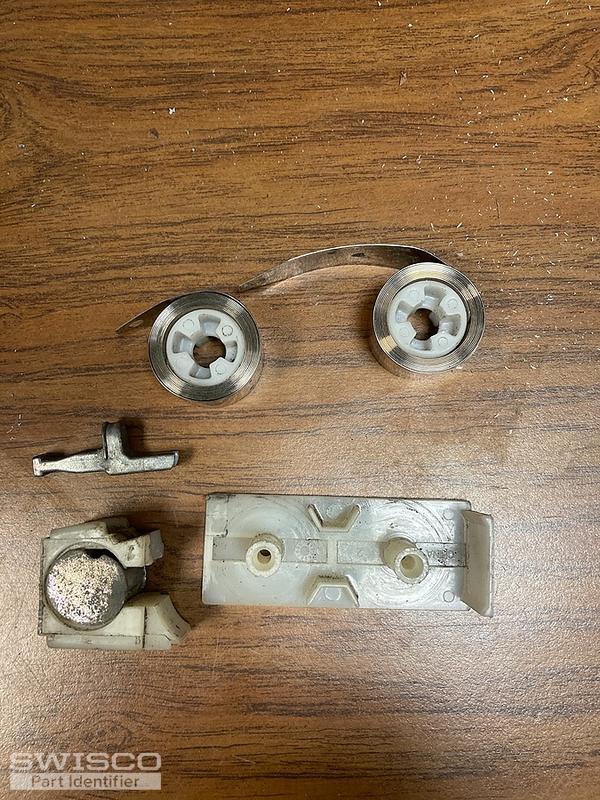

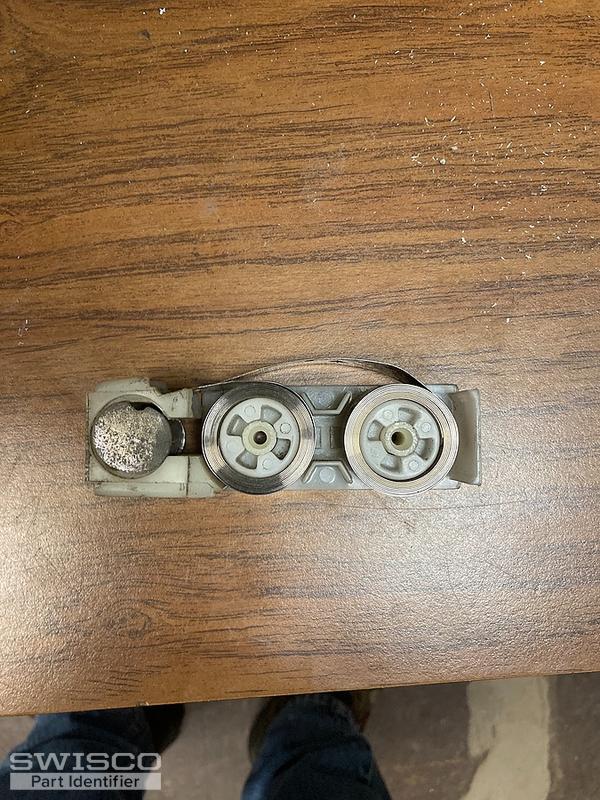

Can you help identify parts the spring has 407 stamped on it so I think it would be a 170-407 and 171-407
But I don't know about the rest
Thumbnail of the uploaded file named 271DB3D6-8742-46F7-A69D-ED7BE3578227.jpeg
Thumbnail of the uploaded file named D3B4D23E-C581-43CD-AC24-CCB0D17AD56E.jpeg
Profile picture of Paul
Paul from SWISCO responded:
January 7, 2021

Hello there. You are correct in identifying the coil springs, the S170-407 & S171-407 . Now, Simonton has replaced your pivot bar with the 26-336 . We don't have the exact Simonton pivot shoe, but you can use the 15-192 , but the metal cam is slightly different, so we recommend swapping it out with the one from your old shoe.

A professional from New York says:
January 7, 2021
Thank you
What about the plastic spring holder is there one for holding 2 springs or do you use 2 single holders
Profile picture of Bob
Bob from SWISCO responded:
January 8, 2021

We use individual spring covers for this balance system. See the 15-156 , as well as the 15-157 Drum. These 'sandwich' around the coil balance.
