Window parts

Quick Learner from Missouri

Jan 18, 2021 4:35 pm

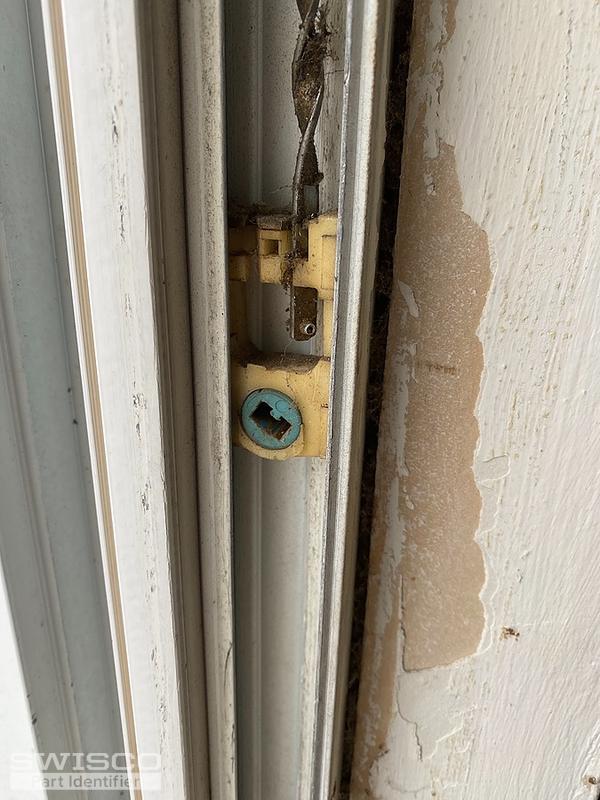

I have an apartment building with a bunch of these windows. I'd need the guide that the coil attaches too. The latches that allow it to tilt outwards and a spare coil tube as well.

4 user uploaded images

4 Replies

Bob from SWISCO

Jan 20, 2021 2:09 pm

For the tilt latch, take a look at our 26-169. For the Pivot Shoe, you'll need to remove it from the window and show us a picture, as well as measure out its width and thickness. For the spiral balance, you'll need to obtain the length and diameter of its outer tube. See the videos I've listed on this page for details.

Quick Learner from Missouri

Jan 22, 2021 7:08 pm

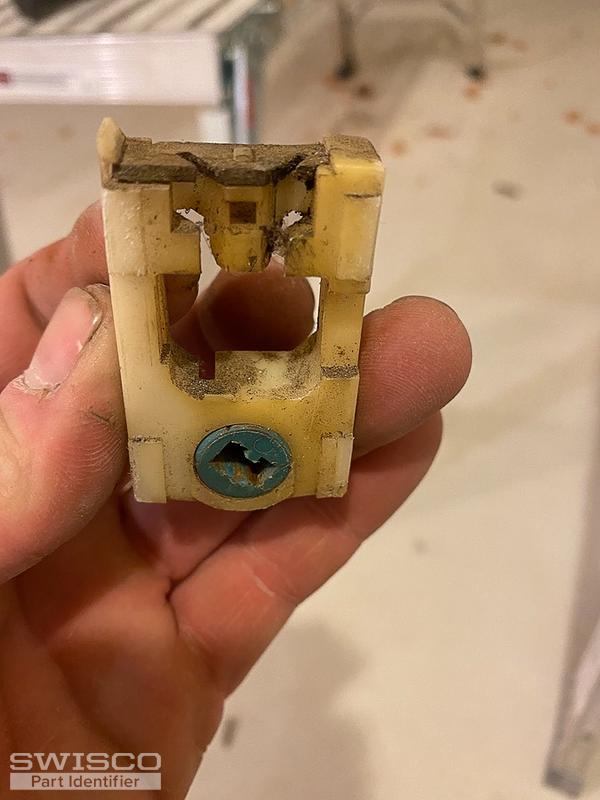

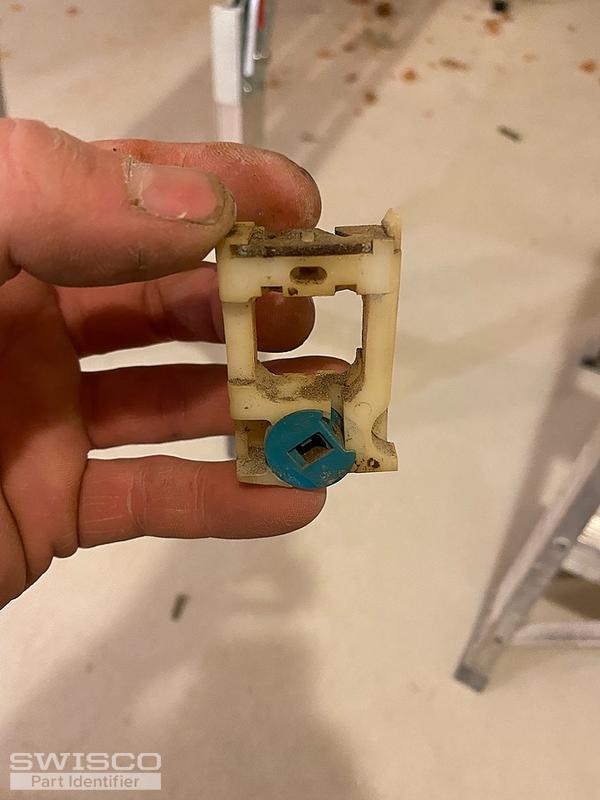

The width is 1-1/4" length 2" and thickness 9/16. The round blue piece in the pivot shoe has the number 200 852.

Spiral tube is 1/2" X 24"

2 user uploaded images

Bob from SWISCO

Jan 25, 2021 10:21 am

The body reminds me of our 15-015. Double-check the dimensions to see if this pivot shoe matches up. For the spiral balance, I believe you have an S600-24. If you need help choosing the Color Tip, obtain the exact weight of the window sash, then match that exact weight with one of the weight ranges listed alongside each color tip option on the shop page.
