Window parts

A quick learner from Blue Springs,Missouri says:
June 30, 2022

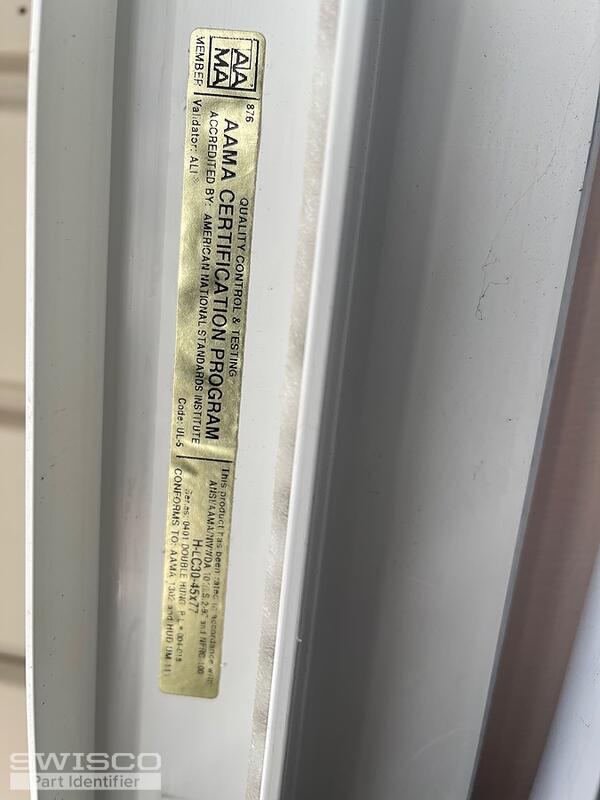

Please help identify these window parts so I can order the correct ones.

Thank you , Scott

Thumbnail of the uploaded file named AD3E663E-2C3E-4847-8AD9-17D991CEC2BA.jpeg
Thumbnail of the uploaded file named DD59B8AA-A452-42CC-A0D8-804FECB624C9.jpeg
Thumbnail of the uploaded file named 3A13AFB2-D093-4593-A4AB-9964E714D262.jpeg
Thumbnail of the uploaded file named C5B26036-F850-48BD-825D-146A08B3A7E1.jpeg
Thumbnail of the uploaded file named A7AC34A1-829E-4153-A69F-D837249A8234.jpeg
Profile picture of Emily
Emily from SWISCO responded:
July 5, 2022

Hey, Scott.

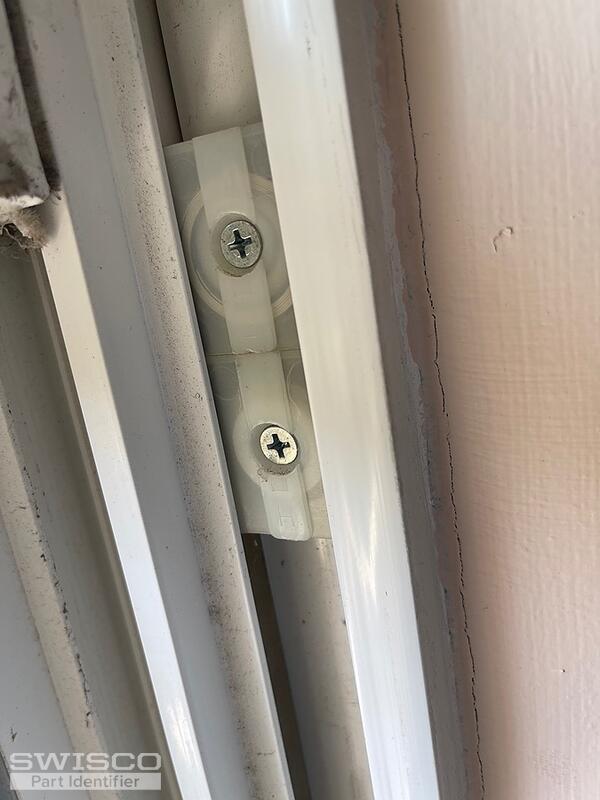

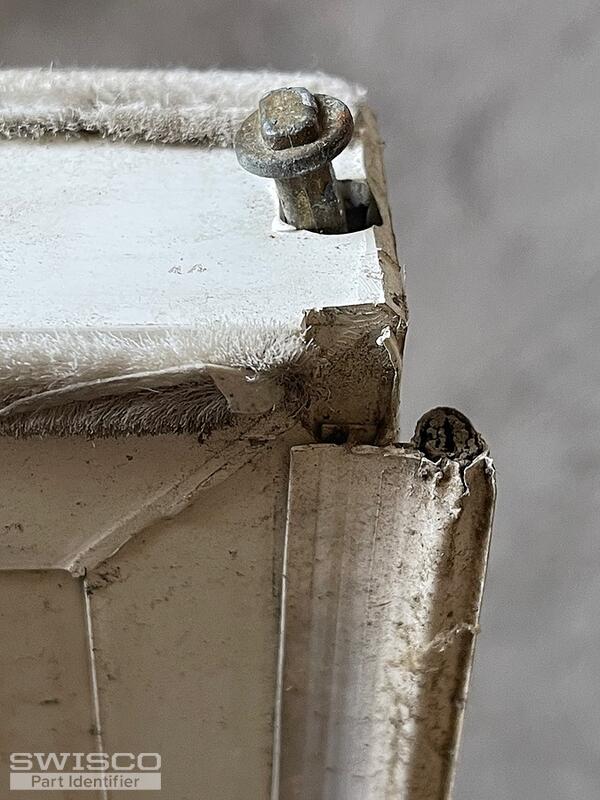

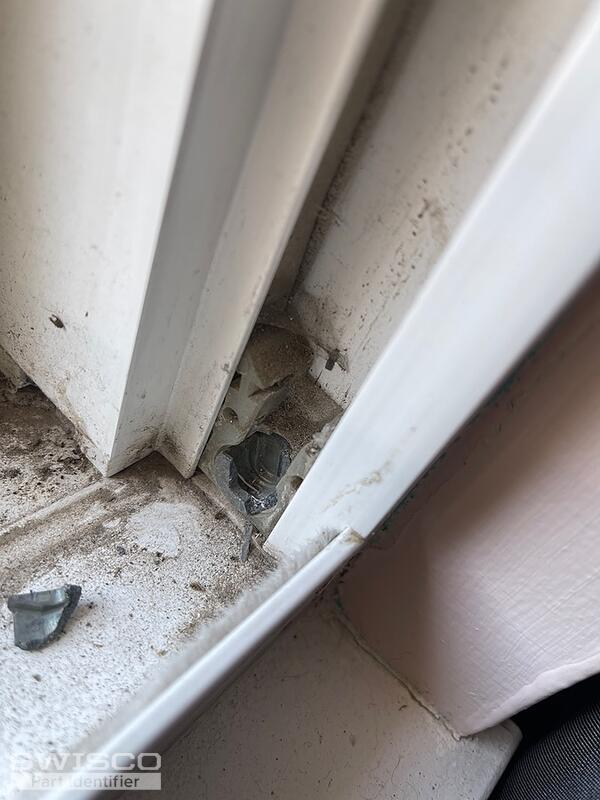

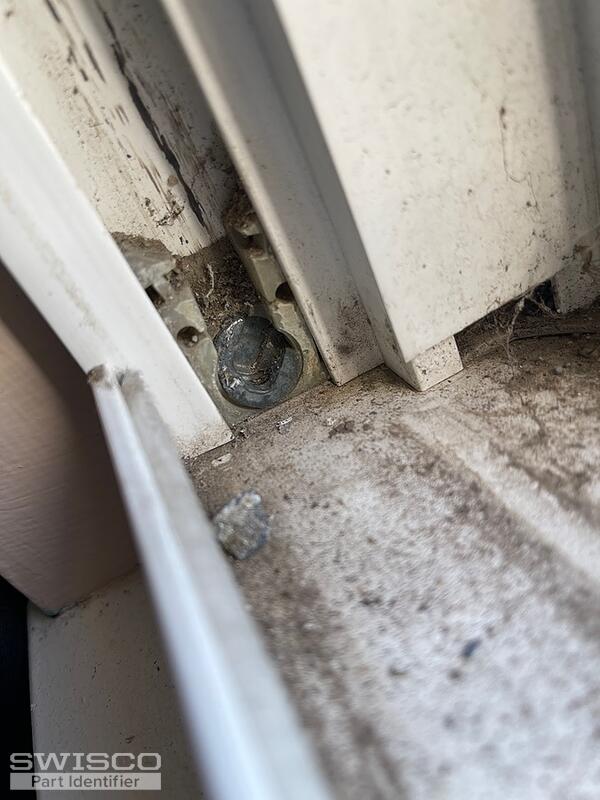

Your hardware looks like a match for our 15-175 that's designed to use the Series 152 coil springs. If you need new coil supports, see our 15-143 bushing, 15-144 cap and 15-145 barrel. As for the pivot bar, start by taking a look at our 26-226 and 26-352. You'll need to remove yours from the sash and compare the dimensions to determine if one of these matches up.
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
Pivot True Pivot Bar
Pivot True Pivot Bar
26-352
$1.90
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Bushing
Coil Bushing
15-143
$0.97
How to replace a window pivot bar
How to replace a window pivot bar
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
