Window parts

A home owner from Cicero NY says:
Cannot ID brand of windows. Purchased house July 2021 parts are missing and/or falling apart. 10 windows various size.
1. 2 windows are missing 1 vent latch ea.
2. 1 window missing the part to turn and lock window.
3. All windows need weather stripping replaced. Some missing most are ripped and falling apart. Bottom of windows; outside edges top/ sides.

I've tried showing in pictures. Wind comes through during winter.

Let me know what else you need.
Thanks Patti
Thumbnail of the uploaded file named D456970E-2C76-4D9C-B42B-3F3B92538678.jpeg
Thumbnail of the uploaded file named F2F88C76-7BB2-40CC-AFF9-A2A7FDB99C4B.jpeg
Thumbnail of the uploaded file named 8E15383D-9C3C-4E03-AFED-F98D83D9D347.jpeg

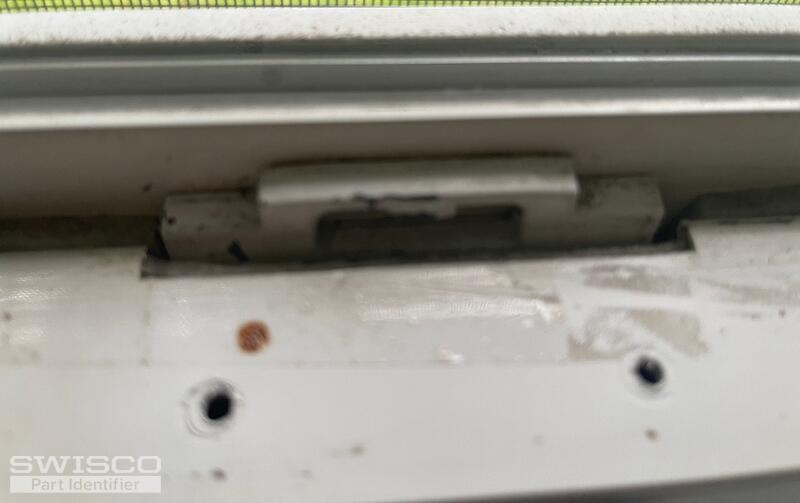

Thumbnail of the uploaded file named D3EB38A7-F4AC-4F41-8187-80424EF7BE6D.jpeg

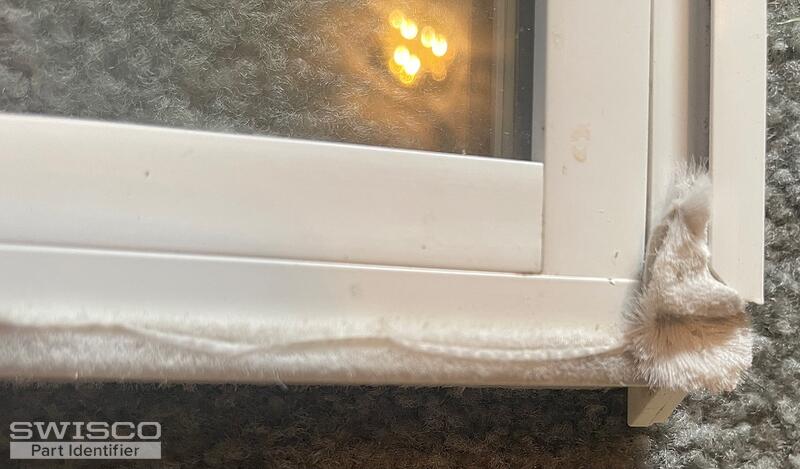

Thumbnail of the uploaded file named 25D89C02-F4CF-4EEB-9769-C1D006E22749.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hi, Patti.

Start by comparing your vent latch's dimensions to our 26-122 and see if this matches up. Is there an identical window in the house with an intact sash lock? If there is, can you show us some photos of that? We will also need you to write out the distance between the two installation holes, measured from center to center.

As for the weatherstripping, can you remove an undamaged sample and show us a clear view of the end profile? For the pile, we will need you to write out the pile height and base width to help narrow down your options.

Thank you!

A home owner from Cicero NY says:
Hi Emily
Yes 26-122 appears the same size.

Sash lock center to center - I measure 2"
But not quite to an 1/8" I added pix

Lock pix from another window.

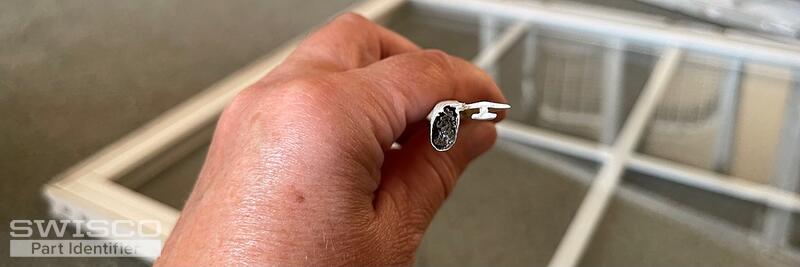

As for weather stripping - the bottom piece is missing on most windows and the ones left are badly torn. The pix is the end once removed.

I don't know how to remove the pile on sides of windows. Do I take the plastic part out to get it out? See pics.

Thank you

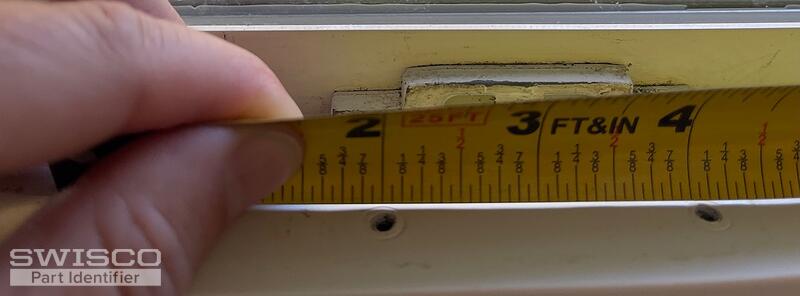

Thumbnail of the uploaded file named 4BA7C9B2-6E99-42B1-B527-6DB767D55B78.jpeg
Thumbnail of the uploaded file named B79A2729-CDAB-4C34-84D2-78D3E3FDB0AC.jpeg
Thumbnail of the uploaded file named B1DEBABC-A303-4750-AC19-E72348C8DCD5.jpeg

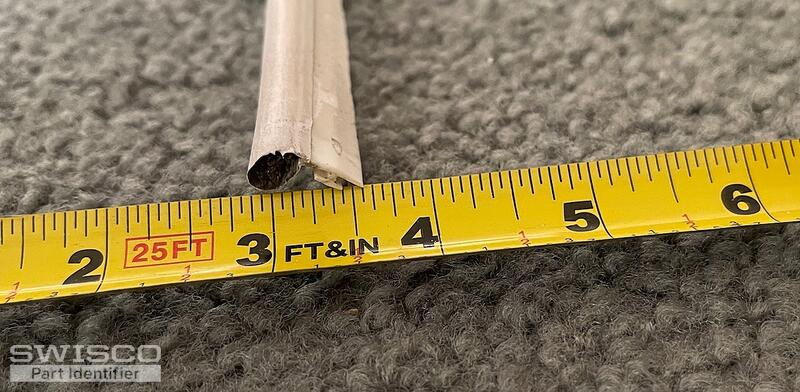

Thumbnail of the uploaded file named 5FCC4546-EC2F-4B1C-A3E8-348E37CD251E.jpeg

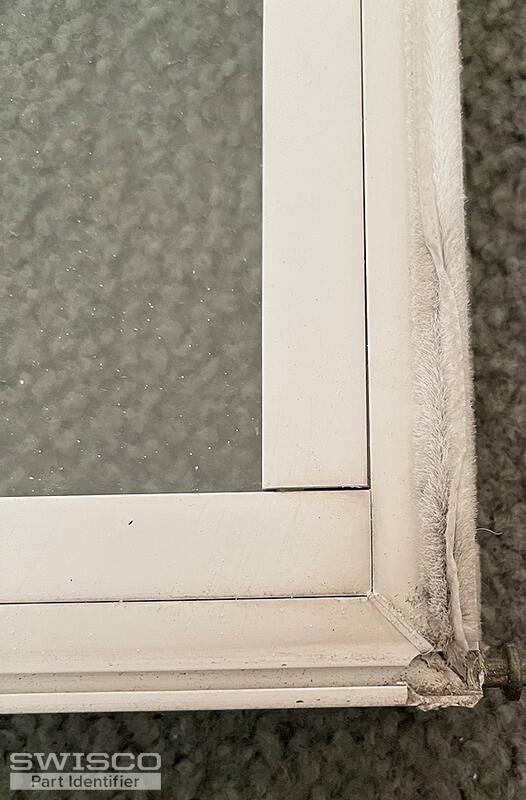

Thumbnail of the uploaded file named 3C67C827-BD17-46A6-B24F-4E364C169080.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Patti. Emily isn't here today but I will do my best to advise you.

Starting with the bubble seal, our best option will be either the 58-171 or 58-182 , depending on the size of the "T" that goes into the base. The diagrams below will help you choose between them.

Profile diagram of 58-171
Profile diagram of 58-171

Profile of 58-182
Profile of 58-182

As for the wool pile, in most cases you should be able to just slide it out of the window channel from the end. However there are many manufacturers that seal that channel closed, making replacement difficult. If that's your situation then you will need to make your own openings in order to access the pile. The video guide below will show you how we do it. Hopefully it helps. In the meantime, you can see our full selection of wool pile sizes here .

A home owner from Cicero NY says:

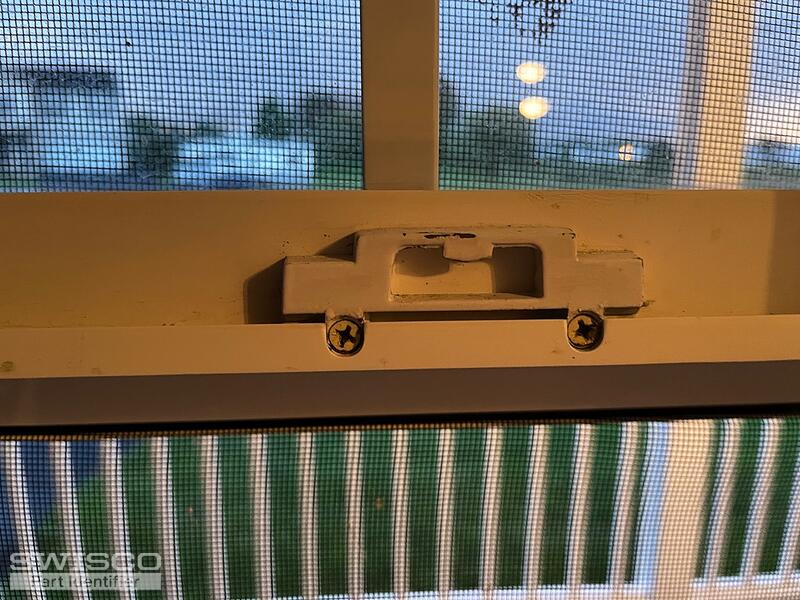

I need 2 locks. I have the keeper and holes are 1-7/8 apart. They are face mounted.

Locks on other windows holes are 2-1/16 apart.

Not sure if 90-077A or 90-278 . Nothing else looks close

Thanks Patti
Thumbnail of the uploaded file named F6ED300B-DE32-4DEB-9AAA-F6130887DA9E.jpeg

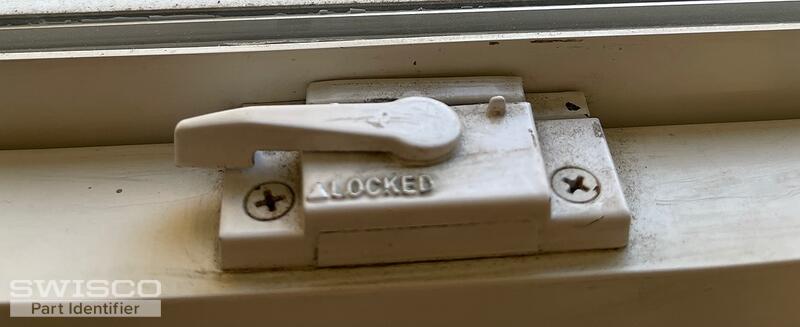

Thumbnail of the uploaded file named 3D69B581-25C6-4FBE-97D6-FAF7700B94B2.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Thanks, Patti! It appears our 90-278 with 2-1/16" hole center spacing is our best match but compare our dimensions with yours to see if they align for what you need. I'm afraid we don't have this exact keeper, however. Our 90-237 would be our best option but I cannot guarantee it will work. I am sorry we cannot offer a better match.

A home owner from Cicero NY says:
Trying to figure out the last few items for now.

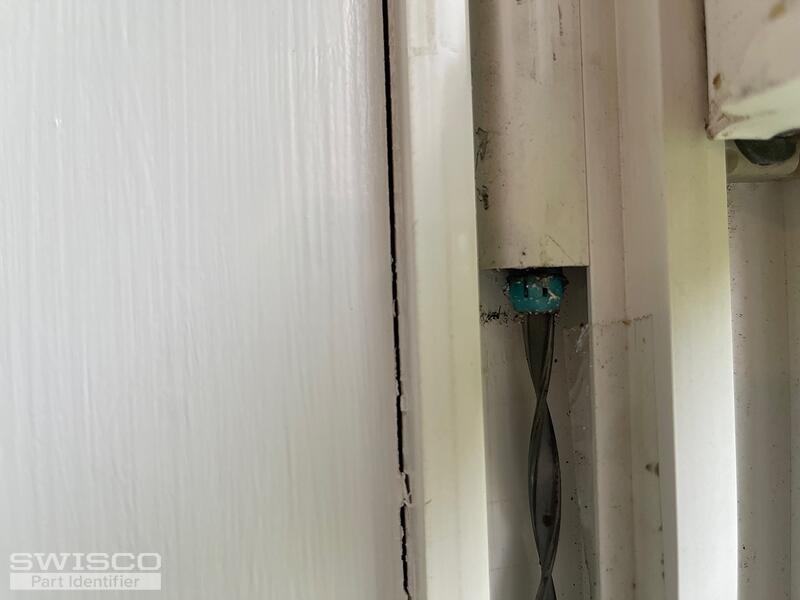

Pivot shoe for tilt windows with blue tip spiral spring. Tube is 3/8" I haven't measured length.

Shoe stays at bottom of channel on many windows. Don't know if they can be reattached and work or need replacement. I tried measuring shoe 2 1/16" long 5/8" deep 1/2" wide. That is with it in windows I don't know how to remove it. So maybe not 100% accurate in size.

Thank you
Patti

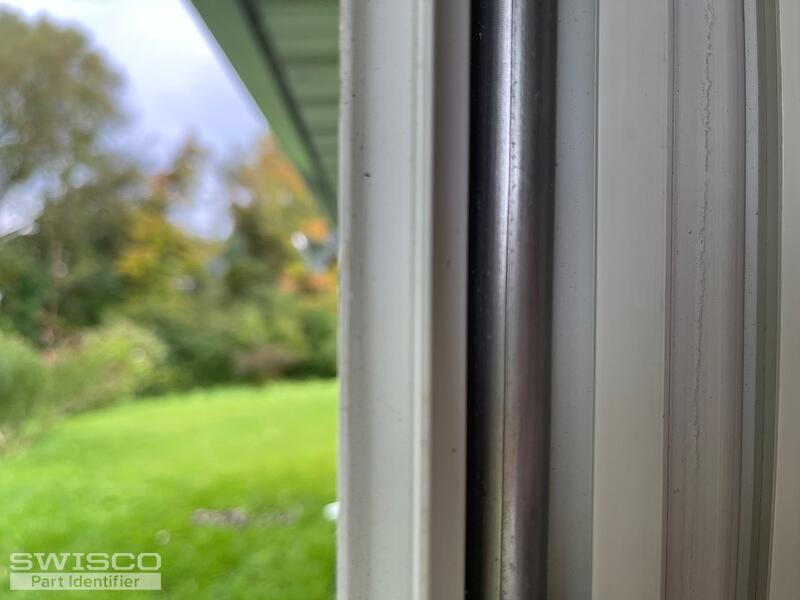

Thumbnail of the uploaded file named 3E680E17-7D08-4438-9777-6E73FEDDD1B8.jpeg
Thumbnail of the uploaded file named 07715BF7-39AB-4788-B6C6-59E449F02FB2.jpeg

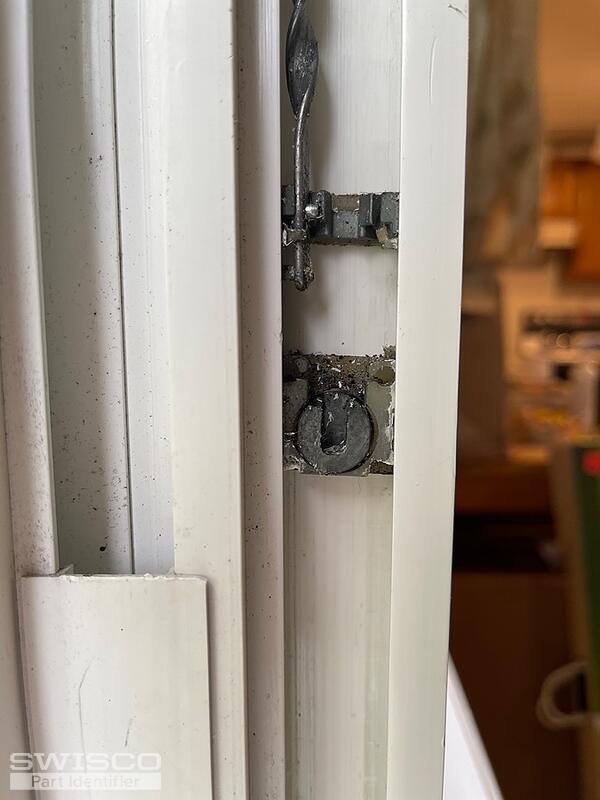

Thumbnail of the uploaded file named BCB179EB-452A-414C-89B8-2D8BFA2C26F6.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Since your outer tube measures 3/8" in diameter, I recommend our Series 900 tilt spiral balance with the blue tip option. For the charging tool, see the 75-006 . When determining the length, you'll only want to measure the outer tube.

As for the pivot shoe, take a look at our 15-178 and 15-188 . I also recommend watching the video below which will walk you through how to remove yours from the window track. Once you have it removed, re-measure your pivot shoe and compare your measurements to our 15-178 and 15-188 to see which one matches up.

A home owner from Cicero NY says:
There are no spiral springs in this window any longer. Nothing to measure. How do I determine the length now? Wood holds the window up and it won't open without holding it open.

When I'm ready to order do I do it on my own? Or through you? How long does it take to get items?
THANK YOU
PATTI
Profile picture of Paul
Paul from SWISCO responded:

Hi, Patti.  Looking at your photos and pivot shoe, I can see your tilt balances are not 3/8" thick, but 5/8", which means you would need the Series 600 . Is there an identical window in the house? If there is, you can take the measurement of that window's balance to determine what length you would need.
