Window parts

Home Owner from Beach park
Apr 27, 2023 12:56 pm

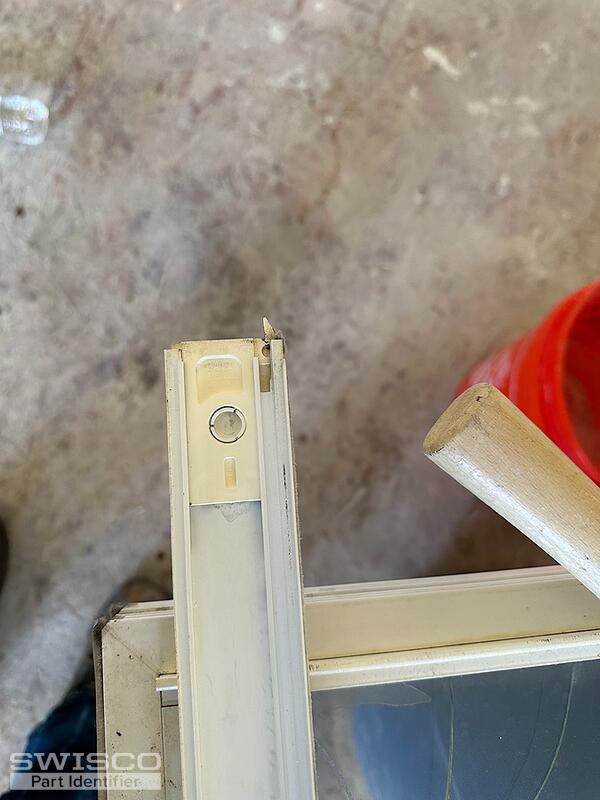

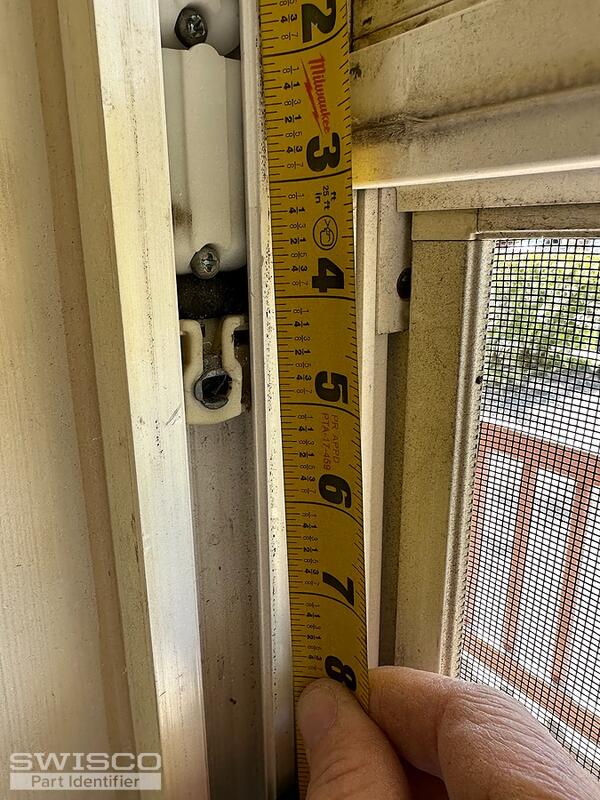

Need help finding some window parts for tilt windows
IMG_6579 IMG_6568 IMG_6567 IMG_6578 IMG_6576
5 user uploaded images
2 Replies
+ Add a Comment
Home Owner from Beach park
Apr 27, 2023 12:58 pm

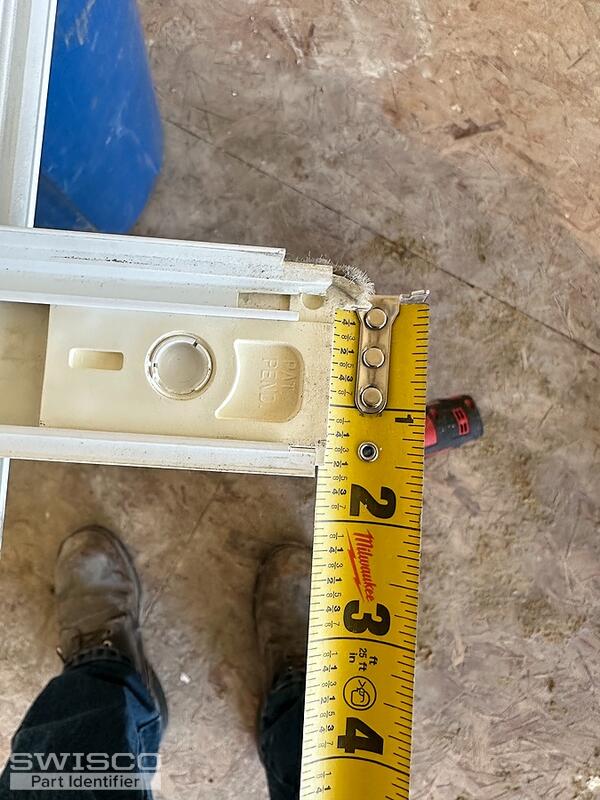

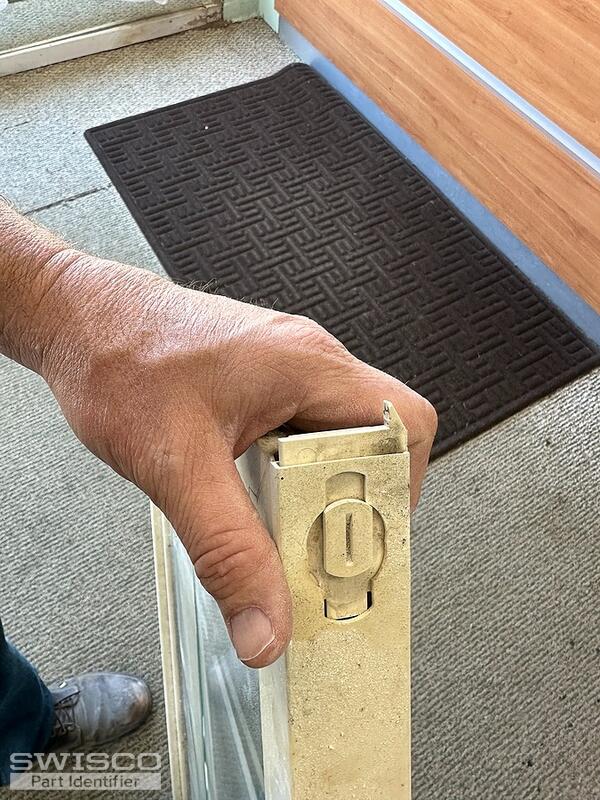

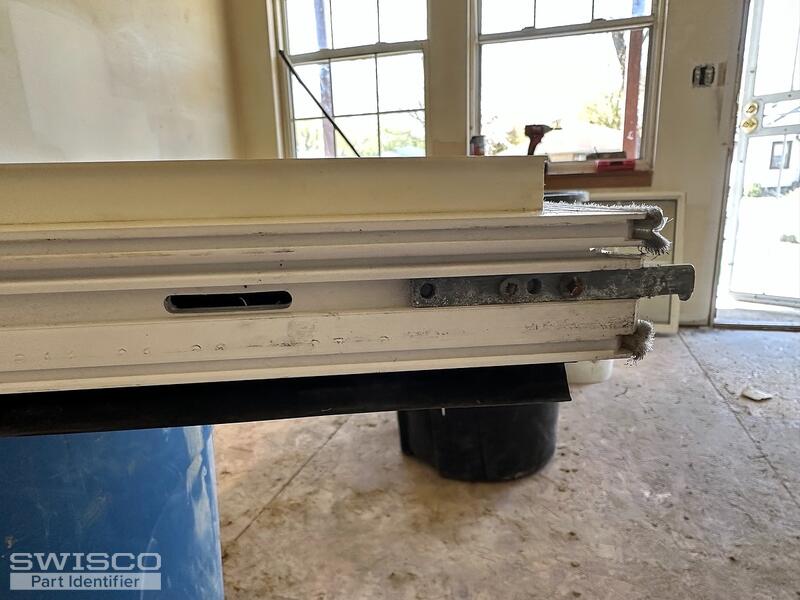

Additional pictures
IMG_6575 IMG_6564 IMG_6568 (1)
3 user uploaded images
Lauren
Lauren from SWISCO
Apr 27, 2023 3:55 pm
SWISCO
EXPERT

Hello, thank you for posting,

Your balance assembly resembles the 15-111 pivot shoe that is compatible with either the 1/2" thick Series 160 coil springs or the 3/8" thick Series 165 coil springs. Please review the overall dimensions to confirm a good fit!

Alternate image for 15-111
Alternate image for 15-111

Take a look and compare the 26-241 pivot bar.

Alternate image for 26-241
Alternate image for 26-241

Unfortunately we are not able to provide a suitable replacement for the tilt latches shown. Is the 4th pictures showing the same latch just without the cover?

Please review and let us know if you have any additional questions!
