Window parts

Start a new Discussion

Handy Person from Greenville

Aug 11, 2017 10:38 am

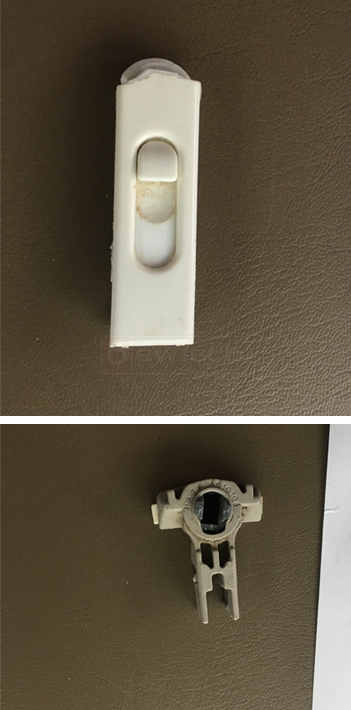

Inside parts for window sash

4 Replies

Tom from SWISCO

Aug 15, 2017 4:14 pm

Thank you for posting. Take a look at our 15-195 t-lock balance shoe. For your tilt latches, you may want to take a look at our 26-393 and 26-393B. If neither of these are a match for you, please provide us with the measurements of your tilt latch. We'll search for additional latches based on your specifications.

Quick Learner from Myrtle Beach

Sep 16, 2017 12:40 pm

Whats the trick to installing the 15-195 1-1/4" t-lock balance shoe I had a bear of a time getting the old one out? Whats the difference between the 26-393 tilt latch and the 26-393B tilt latch?

Thank You,
David

Paul from SWISCO

Sep 19, 2017 1:10 pm

Look at the new 15-195 T-Lock shoe. On the sides are nylon pins. To remove, push in the pins from the balance channel holes and swing it up to disengage. Reverse the process to install. The difference between the top tilt latches is the locking tooth. Look at yours and compare it to ours.
