Window parts from sash type windows

Question

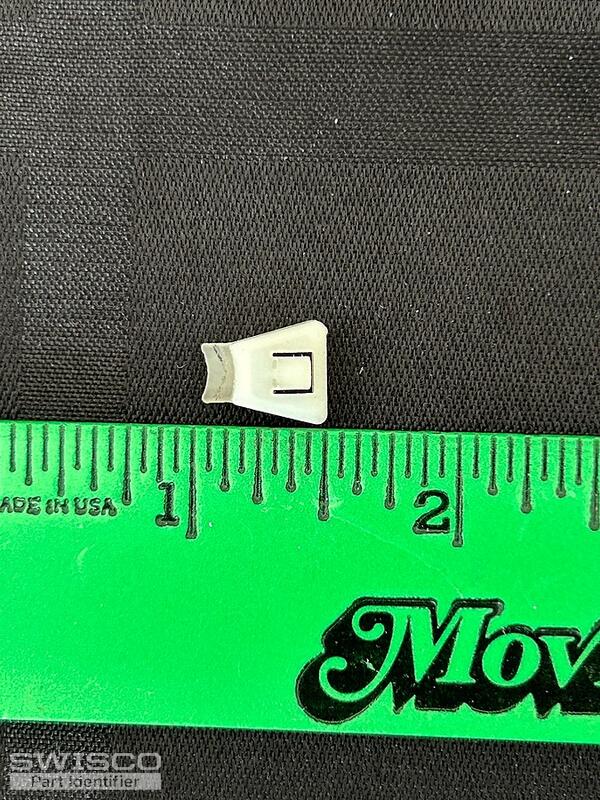

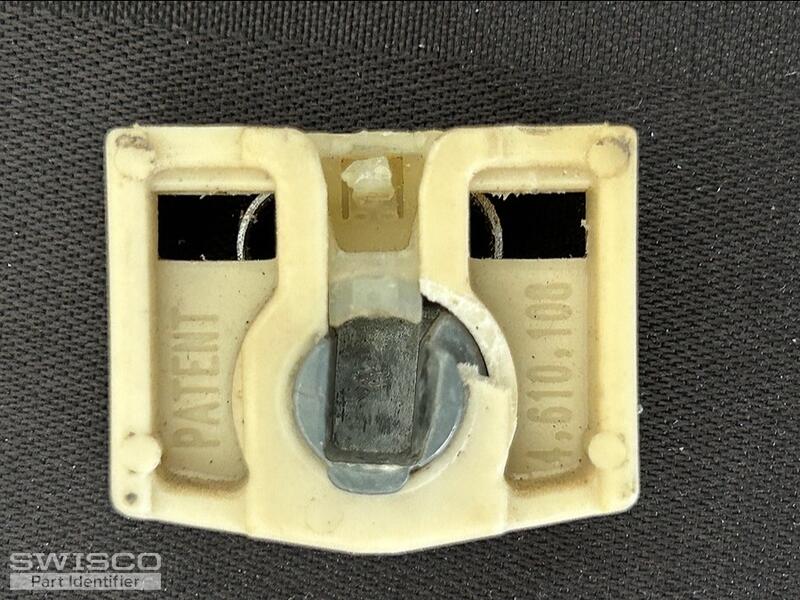

You maybe able to see the parts number from the pics I uploaded. 2 Coils came out of left side of sash. 1 coil stamped OMEGA #3, 5, 33 the 2 coil markings were unreadable. The housing for the coil had markings, Patent 4,610,108 on the side and either a 6 or 9 on the backside. Depending if looking at it from one side up or the other side down. The steel pin had no markings. The small trianglier plastic part had no markings, but looks as if it slides into the housing.

Casey · Accepted Answer

Hello,

Your pivot shoe resembles the 15-111, which is used with the S160 coil springs. The #3.5 stamp would correspond to the S160-03. We also offer the 26-241 pivot bar. Review the specifications to confirm they match up to your original hardware. Thanks for posting!

Alternate image for 15-111

Alternate image for 26-241
