Window parts help needed

Question

Please help!

I have up to 7 windows needing new parts but they don't have any MFG tags, parts numbers or anything to identify them.

The first parts in question are these shoes. Each window has 4 of them. All are in bad shape.

We need the pivot pins to mate with these shoes. Sorry for the horrible pic you're about to see but the pins didn’t come out. Each window needs 4 pivot points.

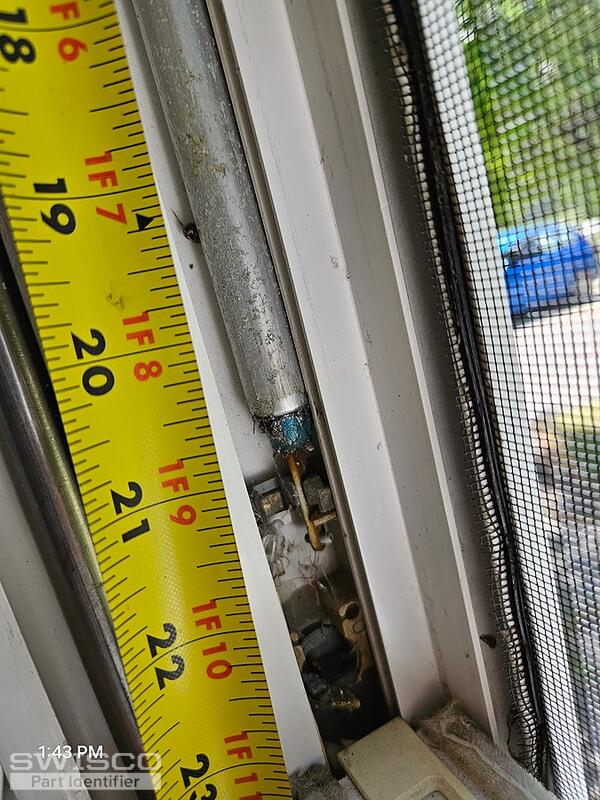

I also need 4 balancers for each window. They vary in length but all have the light blue cap and appear to be the same diameter shaft which looks to be about half an inch.

Hopefully this is enough to get us working. If not, please advise and I'll go get more pics.

Casey · Accepted Answer

Hello,

We can't be sure of the pivot shoe you need with the original still installed, but the 15-188 and 15-178 would be a good place to start. Review the width and thickness measurements below compared to yours.

Alternate image for 15-188

Dimensions for 15-178

As for the pivot bars, we may be able to supply them but we would need to see one of yours uninstalled.

Take a look at the (5/8") S600 and (3/8") S900 spiral balances. You'll need to carefully measure the housing tube to confirm the correct replacements. Thank you!
