Window parts needed

Question

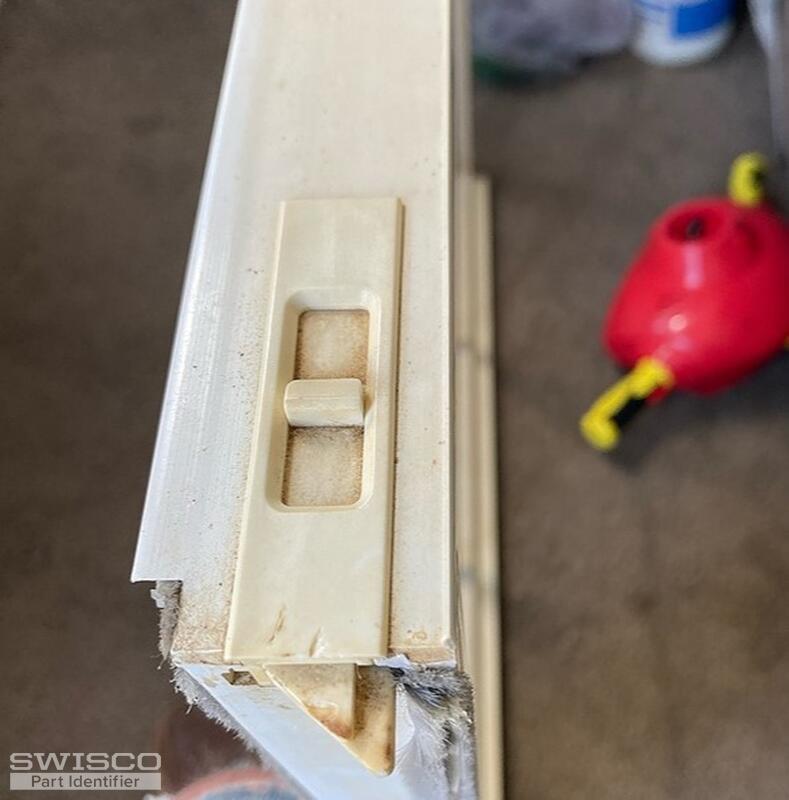

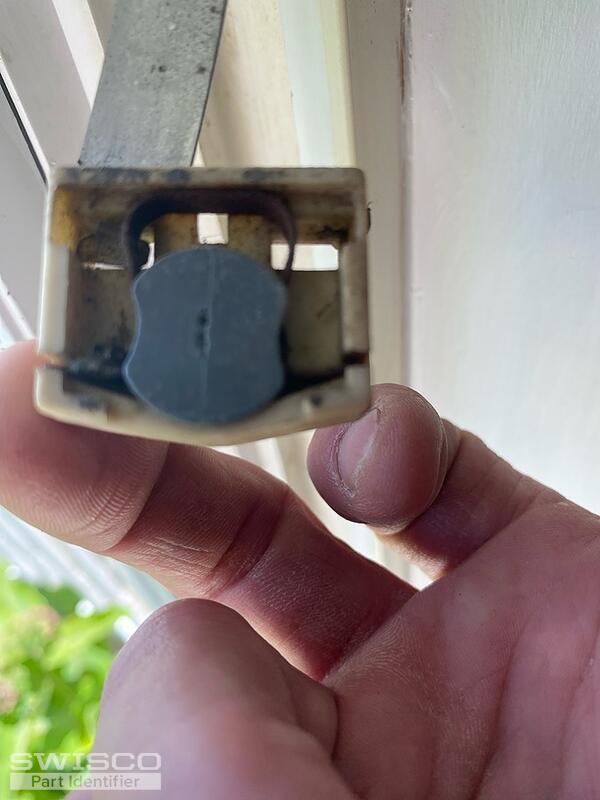

Request # 36978919, Sorry, I didn't get back to you in time with these photos. I have two window sashes, each one weights 18 pounds a piece. I have attached the photos of the pivet shoe that I need 4 of and the 1/2" coil spring, I will need two left and two right of the coil springs. I need the latches that are in the image 5401, I will need 4 of those as well.
Thank you,
Joe

Paul · Accepted Answer

Hello,

For an 18 lbs. sash, you'd need one S160-09 coil spring on each side, which attaches to the 15-191 pivot shoe. If you need the coil spring covers, see the 15-150S.

Alternate image for 15-191

The top tilt latch resembles the 26-243A and 26-244A, depending on how the specifications below compare to yours. Thanks for posting.

Dimensions for 26-243A
