Hello, I am trying to find window pivot lock shoe replacements for my Soft-Lite windows. Would you be able to confirm the appropriate replacement part based on these photos? The coils are fine, but I wouldn't mind getting a few just in case as well while I'm on the topic... Thanks so much, Brad
Window pivot lock shoe replacement
Quick Learner from Potomac, MD
Apr 12, 2018 7:01 am

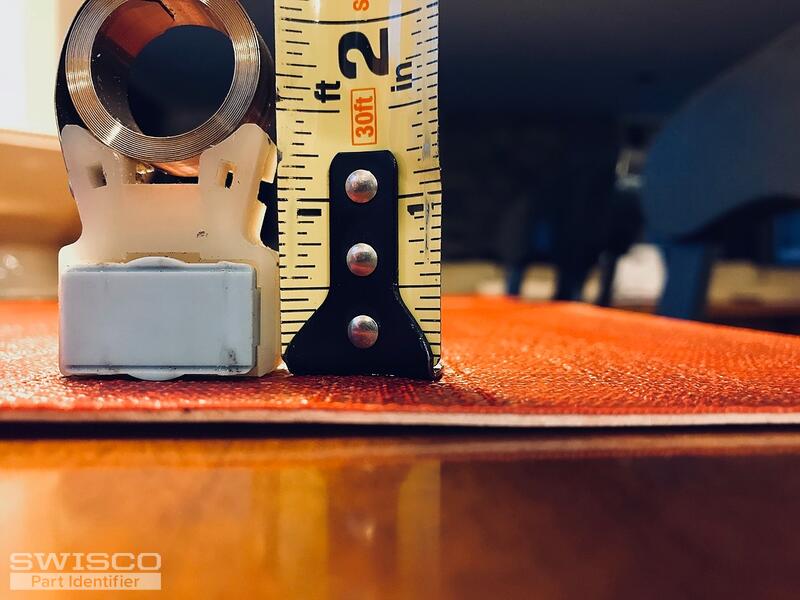

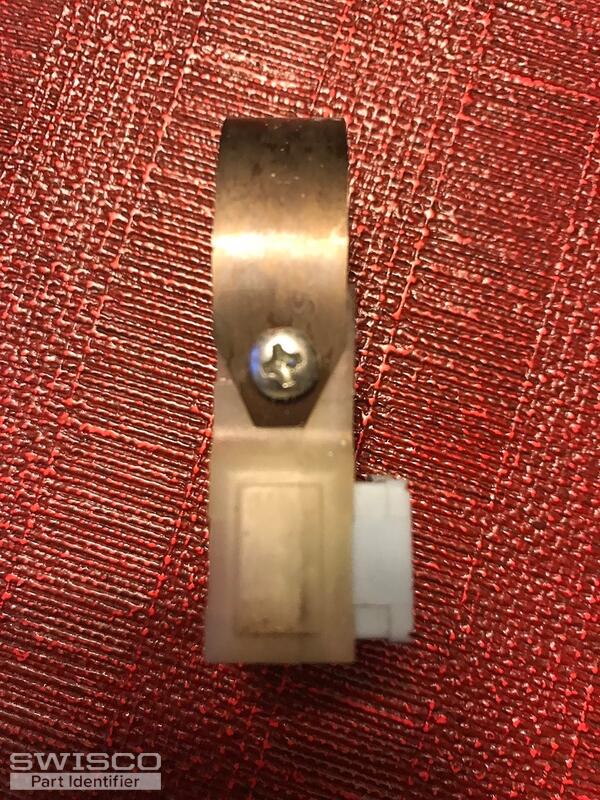

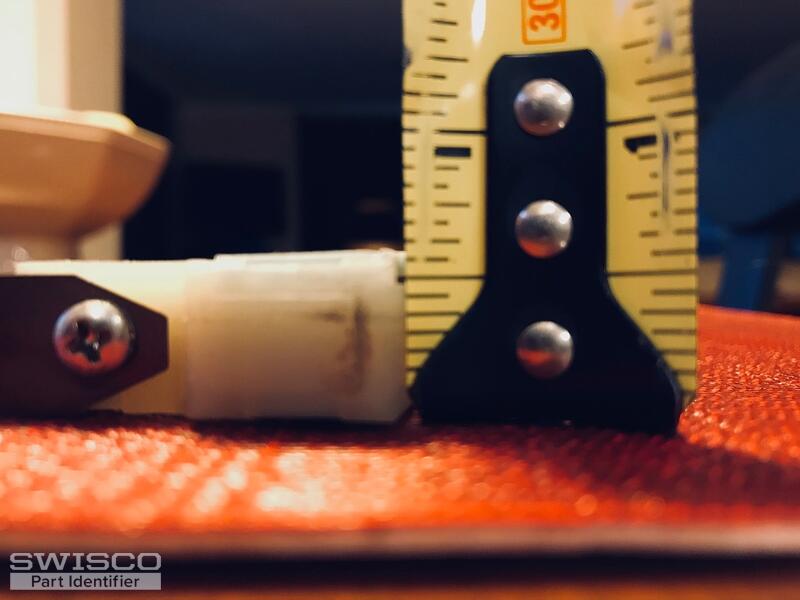

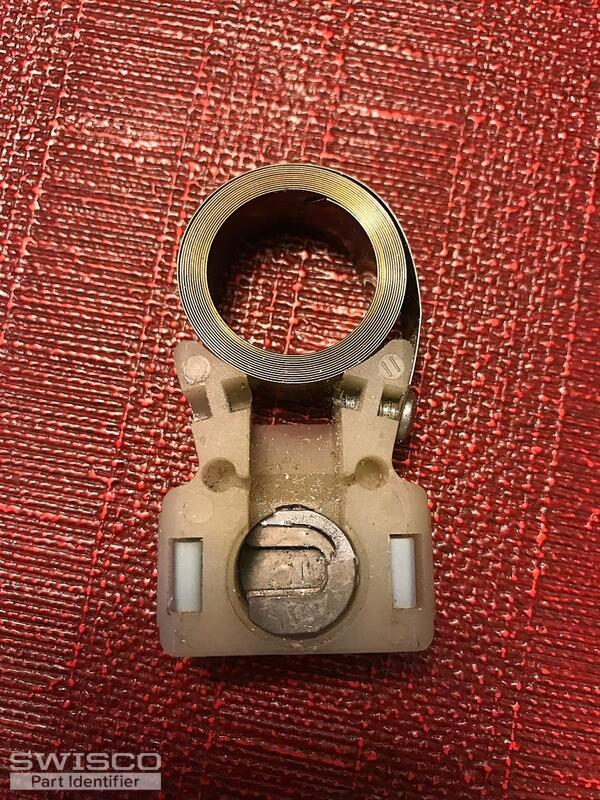

4 user uploaded images
2 Replies
Tom from SWISCO
Apr 16, 2018 11:41 am
Hey, Brad. The pivot shoe itself appears to match our 15-175. See what you think. If you do end up wanting new springs, this shoe is compatible with our Series 152 coil balance. You'll need the number printed on the old springs to determine the best Series 152 option.
