Window pivot pin and spring mount

A quick learner from Elizabeth, nj says:
Hi,

looking for this part with the spring coil that is connected with it.
A quick learner from Elizabeth, nj says:
looking for pivot bar and spring coil that is attached to window frame.
Thumbnail of the uploaded file named WhatsApp Image 2021-11-09 at 2.46.25 PM (4).jpeg
Thumbnail of the uploaded file named WhatsApp Image 2021-11-09 at 2.46.25 PM (3).jpeg
Thumbnail of the uploaded file named WhatsApp Image 2021-11-09 at 2.46.25 PM (2).jpeg

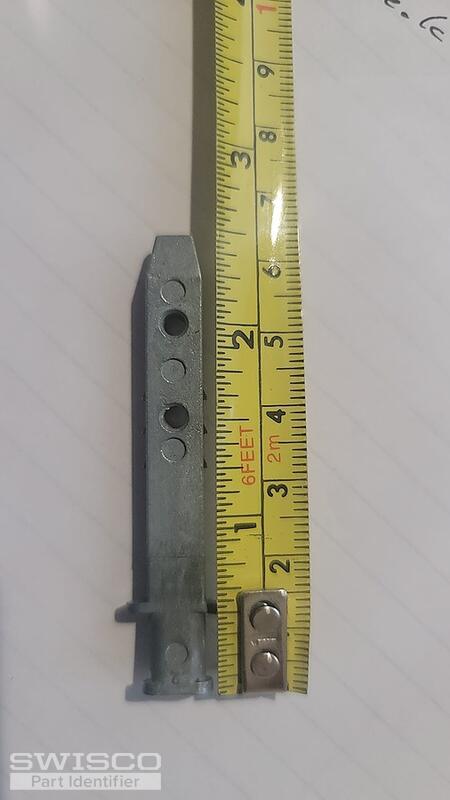

Thumbnail of the uploaded file named WhatsApp Image 2021-11-09 at 2.46.25 PM (1).jpeg

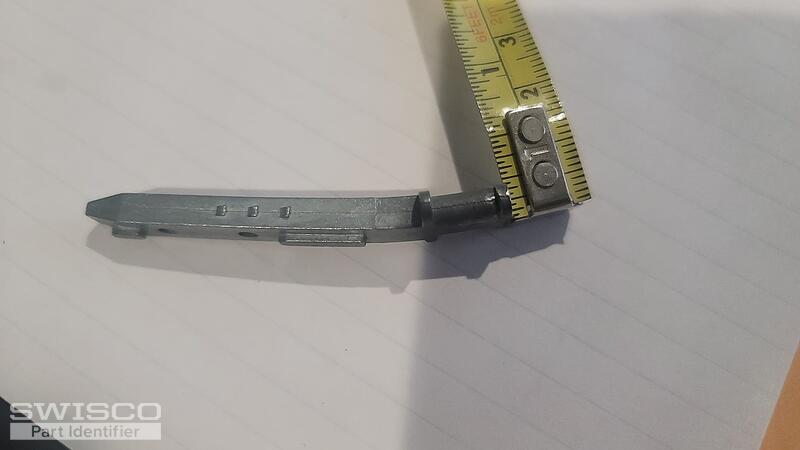

Thumbnail of the uploaded file named WhatsApp Image 2021-11-09 at 2.46.25 PM.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for your post. I don't recognize this pivot bar at first glance, but we may be able to help. Can you show me how it attaches to the window sash, and also the pivot shoe and coil balance assembly it interacts with? We will do our best to assist you from there.

A quick learner from Elizabeth, nj says:
Hi,

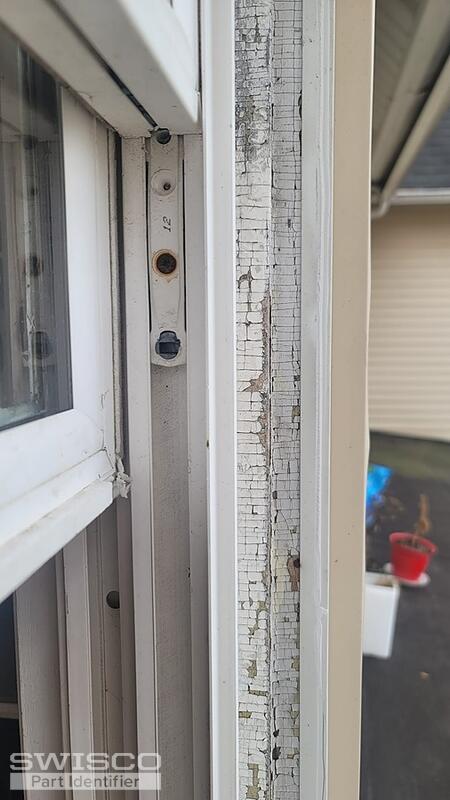

here is the window sash and pivot shoe
Thumbnail of the uploaded file named Window sash.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thank you. Based on the design of your pivot shoe, I believe you can get our 26-021 to work. This only has one "horn," compared to your original that has two, but it should still work the same way.

A quick learner from Elizabeth, nj says:
thank you, how about the pivot shoe? i need that as well.
Profile picture of Bob
Bob from SWISCO responded:

This appears to be the 15-251 Single Support, 15-252 Dual Support, or 15-253 Triple Support, depending on how many coils your window uses per side. These supports use Series 160 Coil Springs. Let me know if you have further questions.
