Window replacement parts

A quick learner from franklin, tn says:

I'm wanting to order what parts I need for a 31 3/4" sash. I think thats the spring length, 22.2 lb sash. I would like enough parts for 3 identical sashes / windows. I also need one more with a sash that's 20" and 15 lb., it's the bathroom sash ( see pictures.)

Thanks for your help,

Brian

Thumbnail of the uploaded file named 22.2 lb sash 1  (1).jpg
Thumbnail of the uploaded file named 22.2 lb sash 1  (2).jpg
Thumbnail of the uploaded file named 22.2 lb sash 1  (3).jpg

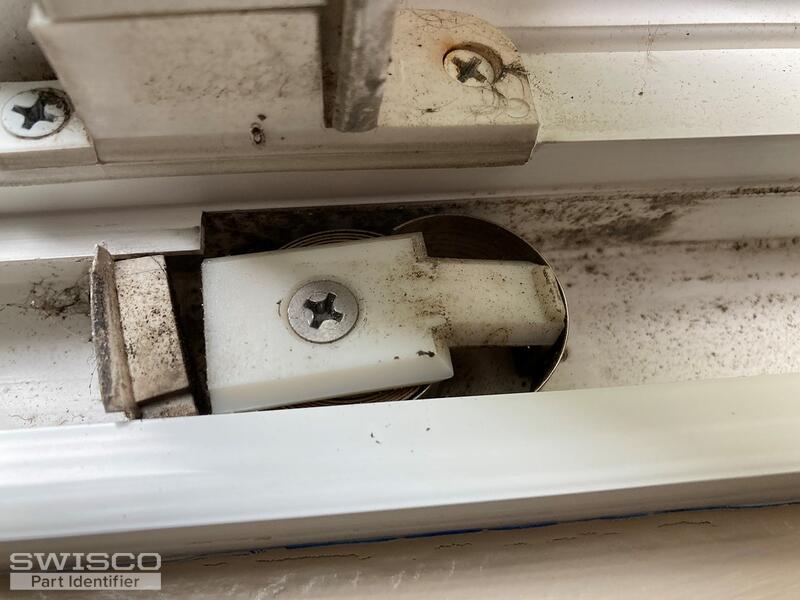

Thumbnail of the uploaded file named bathroom sash 1.jpg

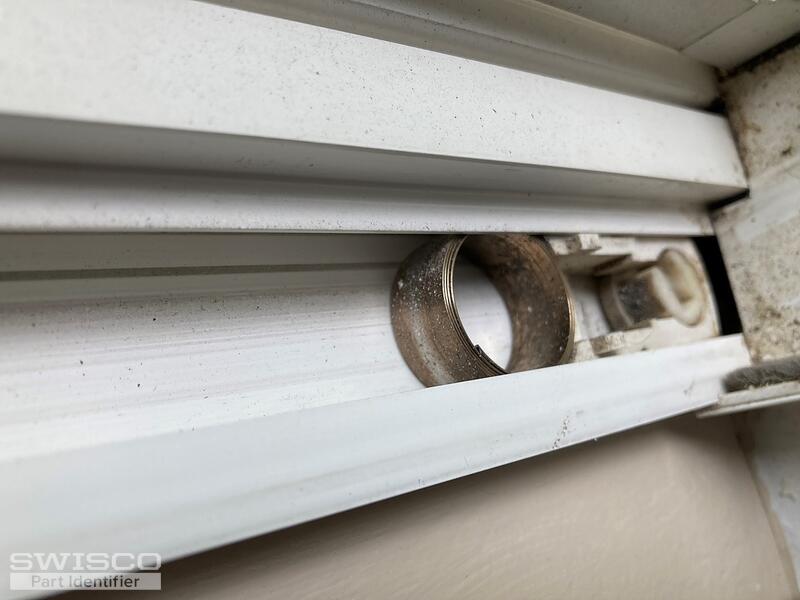

Thumbnail of the uploaded file named bathroom sash 2.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Brian. We can definitely supply the components needed to make these balance assemblies. See our 15-180 pivot shoe and Series 190 coil springs, which are the main two parts. We also sell the 15-181 double spring clip and the 15-186 single spring clip. It looks like your windows use both so you will have to pick accordingly. Finally, see our 15-182 bushing.

Please note that you can reuse undamaged components. In many cases you may only need a new Series 190 spring.

Finally, in each case I recommend using the stamp listed on the old spring to confirm the correct Series 190 option.
