Window replacement parts

A home owner from North Myrtle beach, SC says:
October 16, 2022

Hi my name is Ralph looking for window replacement parts.

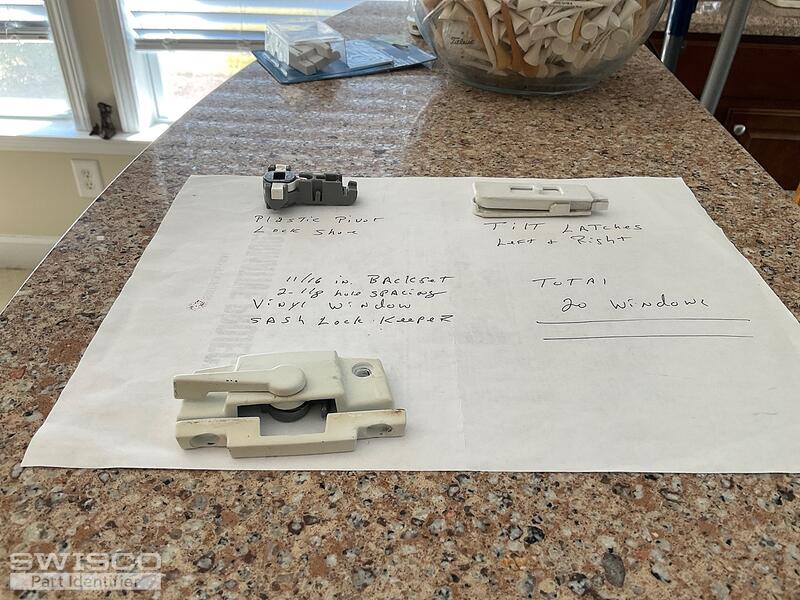

I hope the picture helps showing the parts I need. Plastic pivot lock shoe. Tilt latches left and right.

Shish lock keeper vinyl windows 11/16 in Bracket

Hole spacing 2-1/8

Total of 20 windows

Windows - Stanley= silverline PVC, Number on the inside of the window 17087965*86*1

Thanks Ralph

Thumbnail of the uploaded file named image.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 21, 2022

Hello,

Take a look and compare the specifications of the 15-195B open cam T-lock shoe and 26-393 tilt latch pair to your original hardware.

As for your sash lock, unfortunately, we do not carry anything with 2-1/8" hole spacing but your photo does resemble the 90-278 with 2-1/16" hole spacing and the same 11/16" backset. Take a look and see if this could work for your repair. Thanks for posting!

Dimensions for 90-278
Dimensions for 90-278
1-1/4" T-Lock Balance Shoe, Open Cam
1-1/4" T-Lock Balance Shoe, Open Cam
15-195B
$1.97
Lock & Keeper, 2-1/16"
Lock & Keeper, 2-1/16"
90-278
$3.49
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
