They were installed in 2005.
The windows are single hung model.

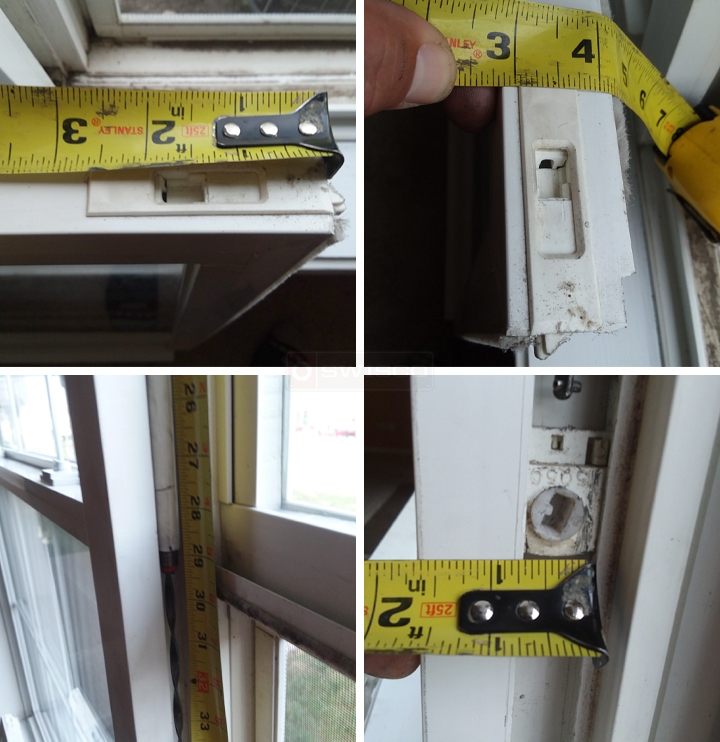

I need to know the correct length for the spiral balance, pivot shoe and the other part that holds the window in place on the track.
Parts for Rockwell, Berber & Ross windows
Home Owner from Naperville
Jun 15, 2017 2:20 pm
These windows may have been Rockwell or Berber and Ross.
They were installed in 2005.
The windows are single hung model.
I need to know the correct length for the spiral balance, pivot shoe and the other part that holds the window in place on the track.
They were installed in 2005.
The windows are single hung model.
I need to know the correct length for the spiral balance, pivot shoe and the other part that holds the window in place on the track.
2 Replies
Tom from SWISCO
Jun 19, 2017 3:11 pm
Thank you for reaching out to us for your hardware needs. For your tilt latches, see if our 26-243 and 26-244 could work for you. Depending on the outer tube diameter of your spiral balance will determine whether you need our Series 900 for 3/8", or our Series 600 for the 5/8". As for your pivot shoe, we are not certain on what to recommend to you. Could you remove it and get back to us with the width and thickness measurements of it?
