Hi,

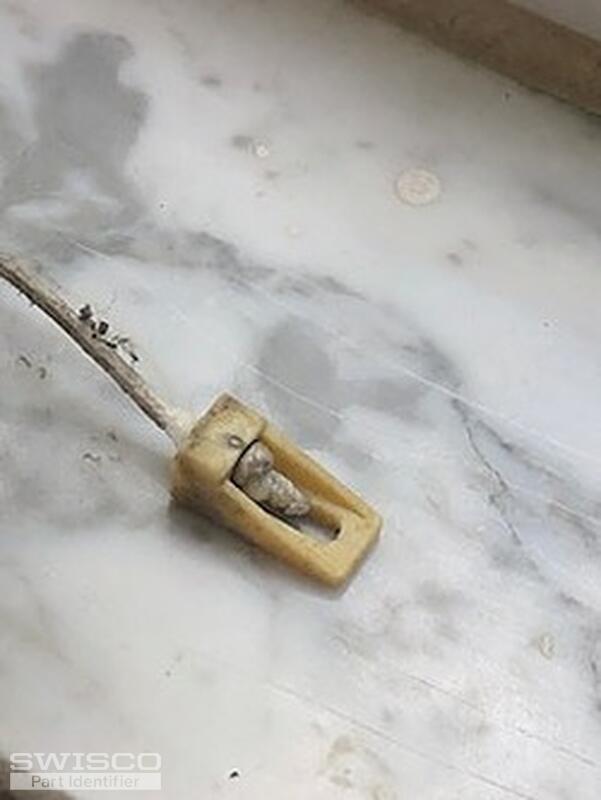

I'm replacing my 22" Series 350 Channel Balance Product Code: S350-22 which I got doing a search for the 2160 number on the current channel balance. I would also like to replace Sash Carrier lower clip which looks something like Sash Carrier Assembly Product Code: 15-272 but not sure. I've included some photos which are not great but hoping you know what I need.
Window replacement parts Channel Balance with Part Number 2160 on it
Home Owner from usa
Oct 22, 2023 1:18 pm
5 user uploaded images
5 Replies
Emily from SWISCO
Oct 24, 2023 8:56 am
Hello!
Thanks for reaching out to us. This doesn't look like the Series 350. Your balance appears to use a pivot shoe whereas the S350 does not. Would it be possible for us to see an undamaged balance assembly removed from the window? We'd also like to see a close-up photo of how the balance attaches to the pivot shoe.
Home Owner from usa
Oct 29, 2023 1:45 pm
Hi Emily,

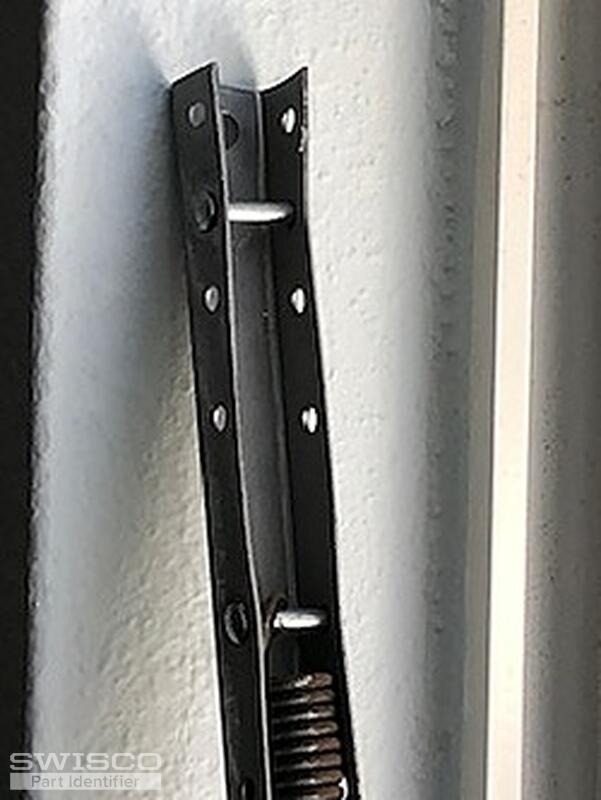

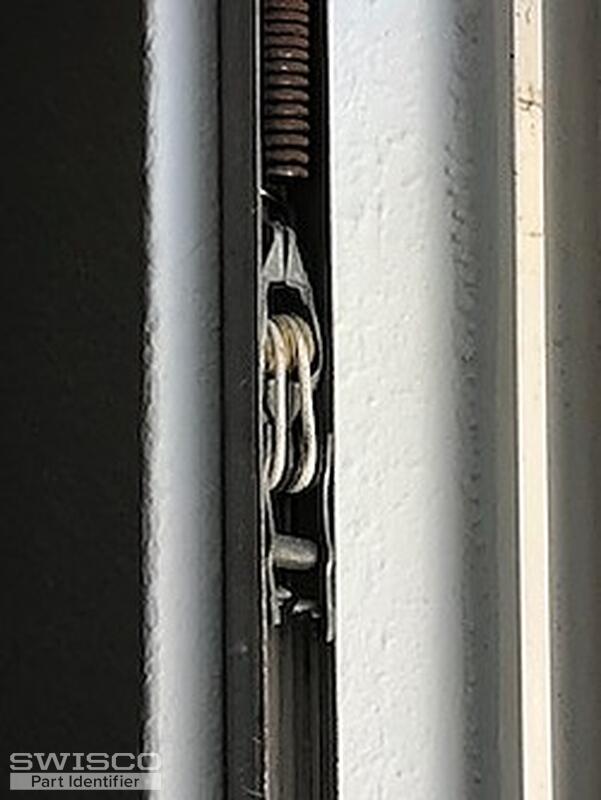

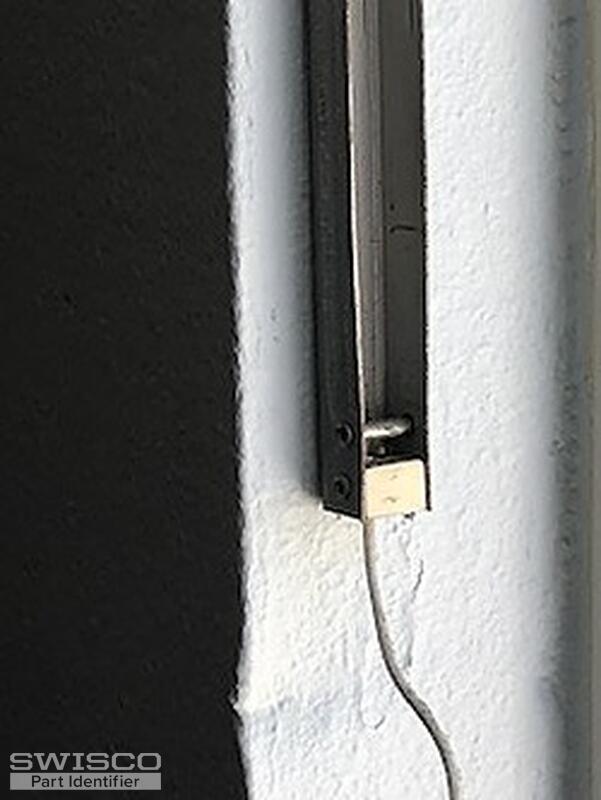

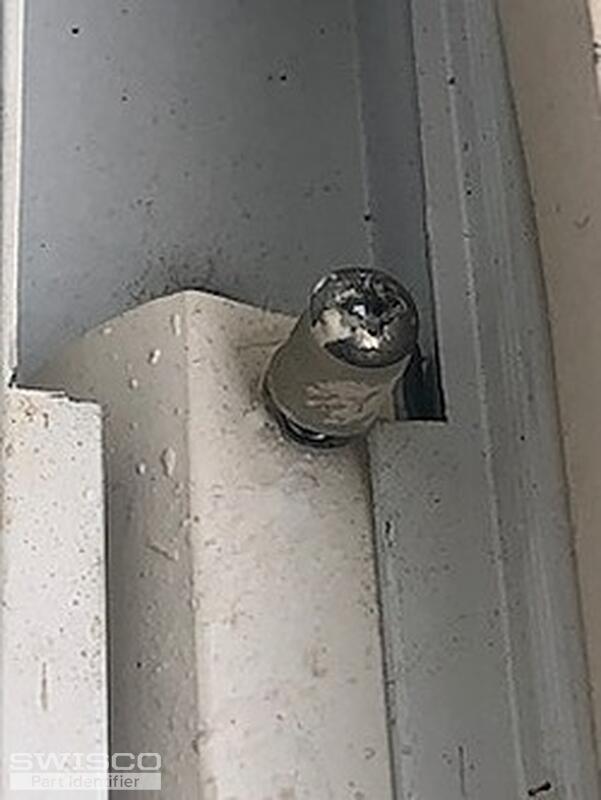

Here's some more photos from an unbroken balance. IMG_0666 is the top attachment point which is just a screw with a small nylon grommet/washer. IMG_0667 is the back side of the top attachment point of the balance. IMG_665 is the bottom end of the balance still in the track. IMG_0668 is the back side of the bottom of the balance. IMG_0669 is the center pulley of the balance.
Sending separate message with more photos and thanks so much for your help.
Here's some more photos from an unbroken balance. IMG_0666 is the top attachment point which is just a screw with a small nylon grommet/washer. IMG_0667 is the back side of the top attachment point of the balance. IMG_665 is the bottom end of the balance still in the track. IMG_0668 is the back side of the bottom of the balance. IMG_0669 is the center pulley of the balance.
Sending separate message with more photos and thanks so much for your help.
5 user uploaded images
Quick Learner from FL
Oct 29, 2023 2:26 pm
Hi again Emily,
Here's more photos.

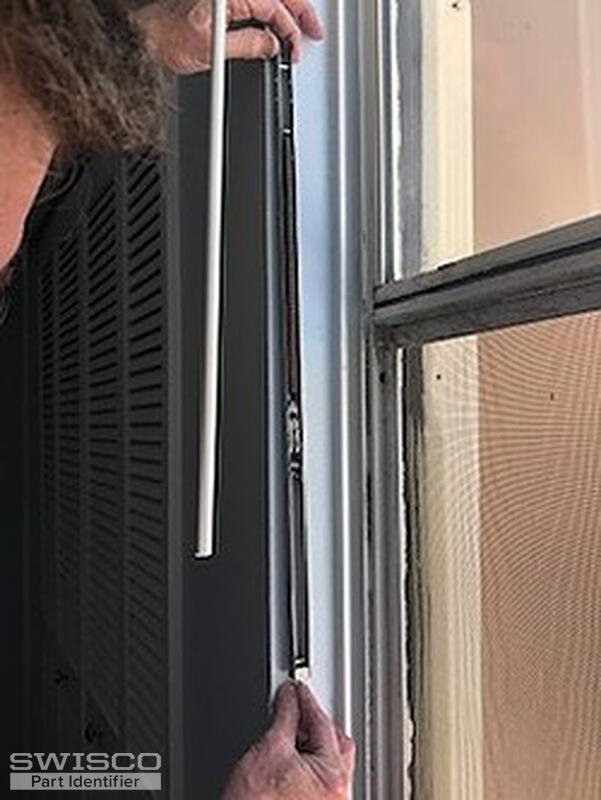

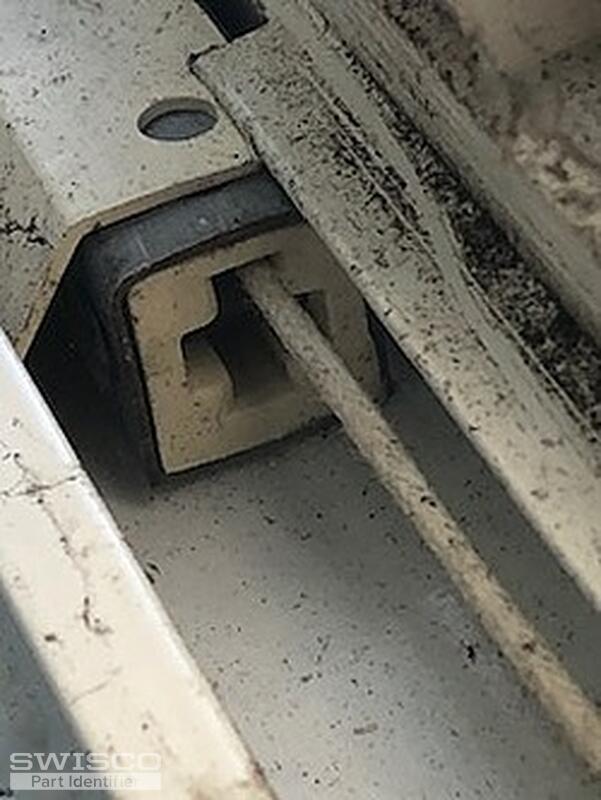

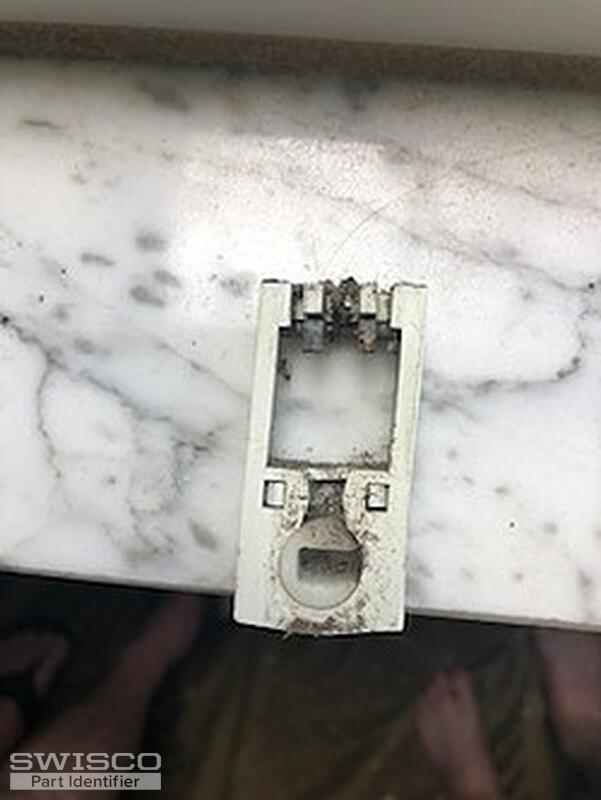

Image IMG_0677 is an overall picture of the back of the balance. IMG_0672 is what connects the balance to the bottom piece (Pivot shoe?) where the bottom of tilt window goes into. IMG_0673 is the bottom piece (Pivot shoe?) where the bottom of the tilt window goes into.

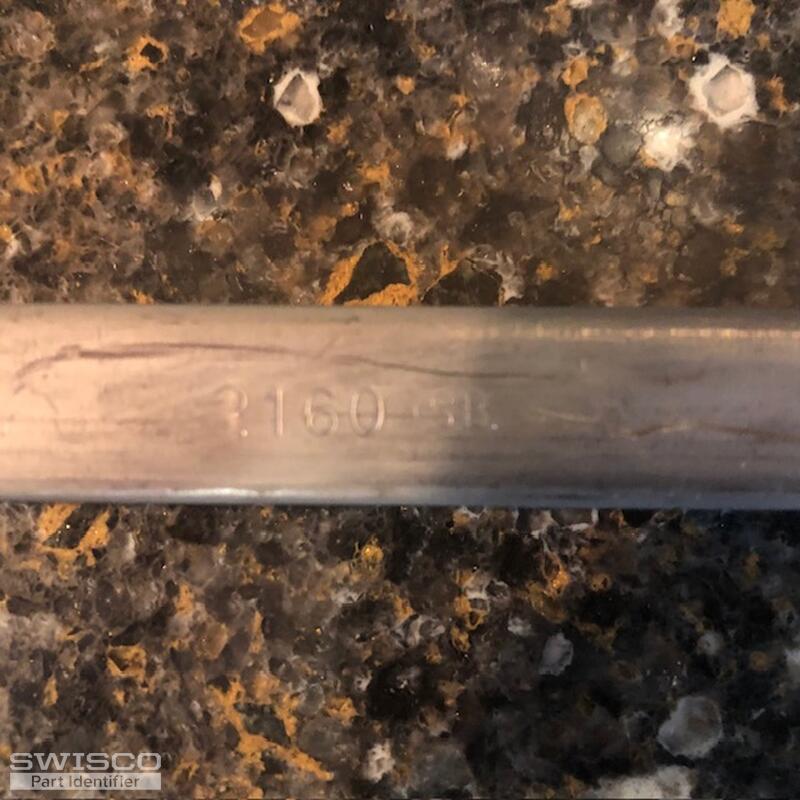

The number on the balance does appear to be 2160 SB but can't tell if there is another character between the 2160 and the SB. See IMG_0674
IMG_0675 is the white plastic trim I had to remove to get the balance out so would like to know if you have replacement trim.
So, I am repairing 2 identical windows and need 4 balances, 4 Pivot Shoes? And 4 pieces of white trim if you have e them.
Again, thanks for all your help.
Gordon
Here's more photos.
Image IMG_0677 is an overall picture of the back of the balance. IMG_0672 is what connects the balance to the bottom piece (Pivot shoe?) where the bottom of tilt window goes into. IMG_0673 is the bottom piece (Pivot shoe?) where the bottom of the tilt window goes into.
The number on the balance does appear to be 2160 SB but can't tell if there is another character between the 2160 and the SB. See IMG_0674
IMG_0675 is the white plastic trim I had to remove to get the balance out so would like to know if you have replacement trim.
So, I am repairing 2 identical windows and need 4 balances, 4 Pivot Shoes? And 4 pieces of white trim if you have e them.
Again, thanks for all your help.
Gordon
5 user uploaded images
Emily from SWISCO
Oct 31, 2023 2:49 pm
Thank you for the additional pictures and information! This is a huge help. I recommend the Series 770 channel balance. This isn't an identical match but it appears to function the same as your old balance. Take a look at the specifications and see what you think.
Note that your stamp doesn't translate to any of our options so you will need to weigh the window sash on a scale to determine the accordant strength option. As for the pivot shoe, yours was discontinued but the 15-179 may be worth considering. Compare the thickness and width with yours to see how they align.
The trim you're referring to is called a balance cover but I'm sorry to say that we don't sell replacements for that.
