Window replacement spiral balance and pivot shoe

A home owner from MA says:
May 29, 2018
I need 6 replacement parts for my windows. Photos above.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
June 1, 2018

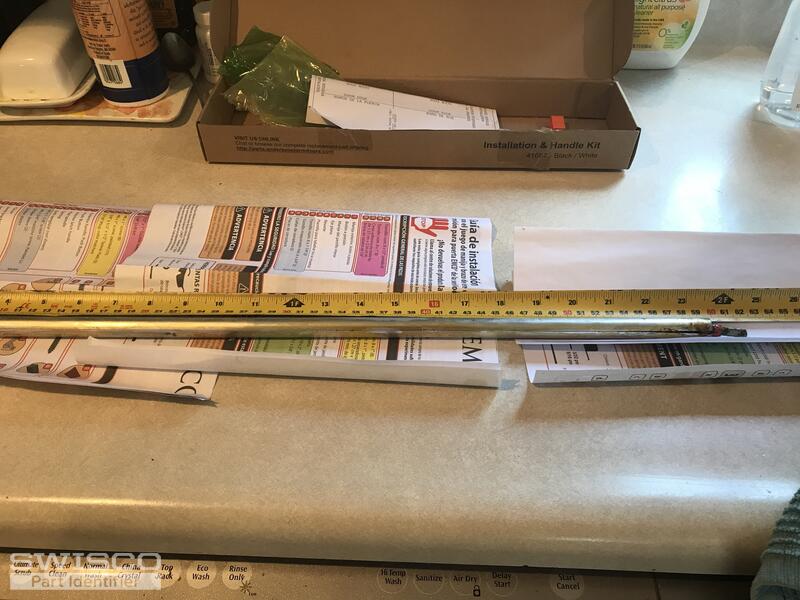

It looks like you have a 5/8" Series 600 tilt balance with either a 23" or 24" tube: S600-23 or S600-24 . Measure closely and choose the right one.

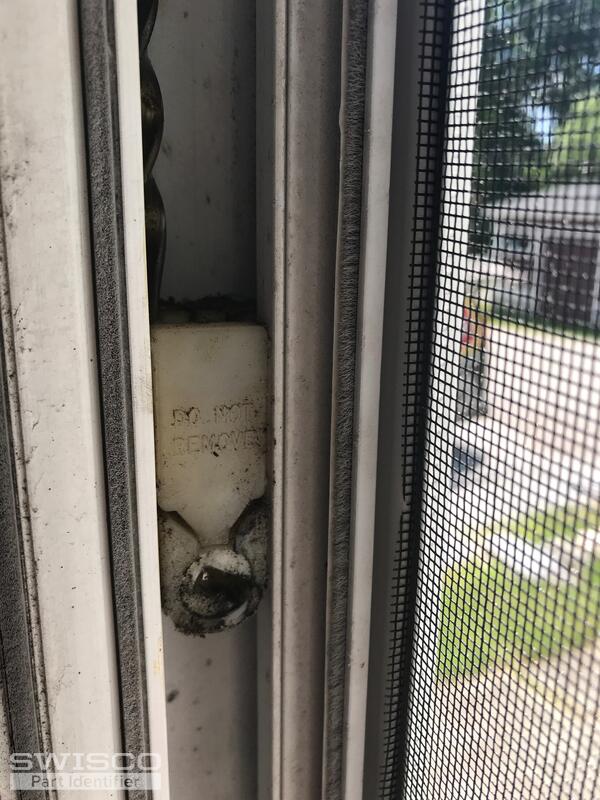

I don't recognize the pivot shoe, though. It has a safety cover that you need to snap off to remove the spiral. Remove it and take a look. We will need the width and thickness of your pivot shoe to identify it. Check out our guide on how to do that:

A quick learner says:
June 3, 2018
The width is 1 1/4 inch, thickness is 5/8.


A quick learner says:
June 5, 2018
They are 5/8 in thickness and 1 1/2 inch width.
Profile picture of Paul
Paul from SWISCO responded:
June 6, 2018

Thanks for the additional photos! I took a look at everything, and I believe the pivot shoe will be the newer-style 15-048 , and the Tamp-R-Lok is our 26-028 . Take a look and let me know what you think.

Pivot Shoe
Pivot Shoe
15-048
$2.79
Tamp-R-Lok
Tamp-R-Lok
26-028
$0.92
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
23" Series 600 Spiral Tilt Window Balance
23" Series 600 Spiral Tilt Window Balance
S600-23
$8.85
24" Series 600 Spiral Tilt Window Balance
24" Series 600 Spiral Tilt Window Balance
S600-24
$8.92
