Window rollers

Home Owner from USA

Oct 19, 2020 11:10 am

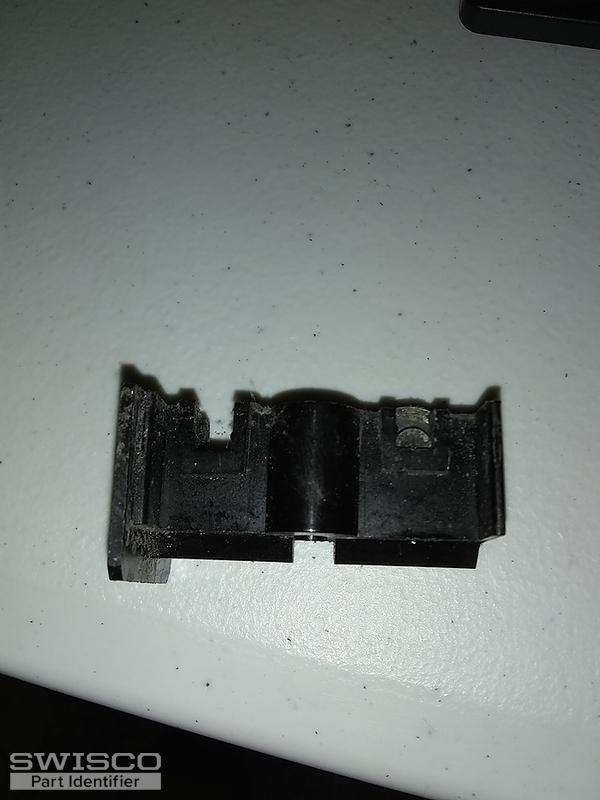

Anything like this available? Sliding windows part of a solarium added to house sometime in past - not sure what date, manufacturer, who installed, etc. All brass rollers have flat spots. Alternatively, the roller is brass 1/2 inch in diameter. Axle is 3/16 in diameter and 3/8 long. Replacing rollers rather than assembly could work.

Thank you,

Bob

4 user uploaded images

6 Replies

Casey from SWISCO

Oct 21, 2020 1:53 pm

Hello,

I don't recognize this roller at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available. Thank you!

Paul from SWISCO

Oct 22, 2020 10:37 am

Unfortunately, we do not carry an exact replacement for your window roller but take a look at our 87-203 roller and see if you think the dimensions and specifications could work for your application. Thank you!

Home Owner from USA

Oct 22, 2020 11:25 am

Thank you for checking, but the dimensions on my assembly that fit into the aluminum channel are 7/8 wide by 5/8 tall. I suppose if I got something close I could shim it in. Would have to have a spot for a screw to hold it in place. I think the easiest way would be finding a wheel with similar dimensions. Half inch diameter with 3/16 center hole. I can reuse the axle and the black nylon piece - I just have to replace the current wheels that have flat spots.

Home Owner from USA

Oct 22, 2020 11:32 am

Your Product Code: 87-193 is very close. The current wheel is about 5/32 wide in a 3/16 slot. Otherwise the current axle may fit. Can I order one of those?

Paul from SWISCO

Oct 22, 2020 12:59 pm

I was considering the 87-193 as well. You are welcome to order one and give it a try.
