Window sash balance

Home Owner from Scottsdale

Oct 18, 2024 6:50 pm

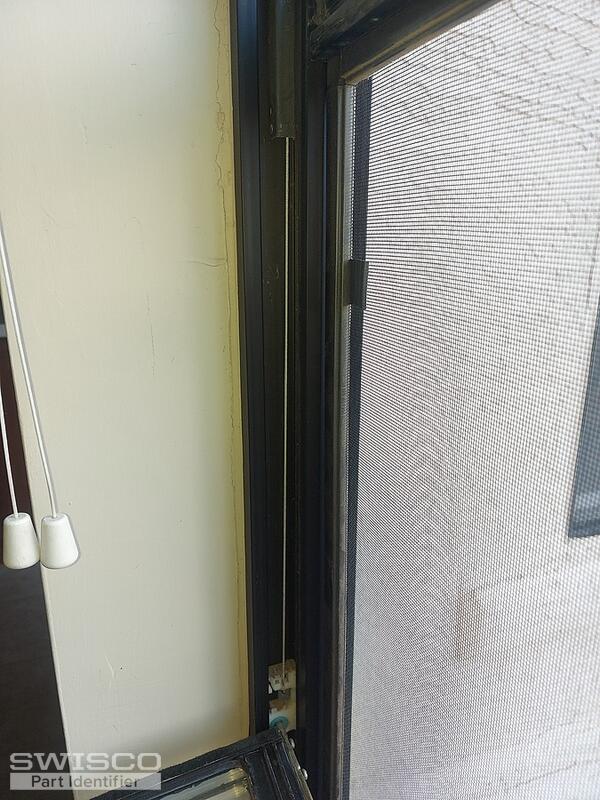

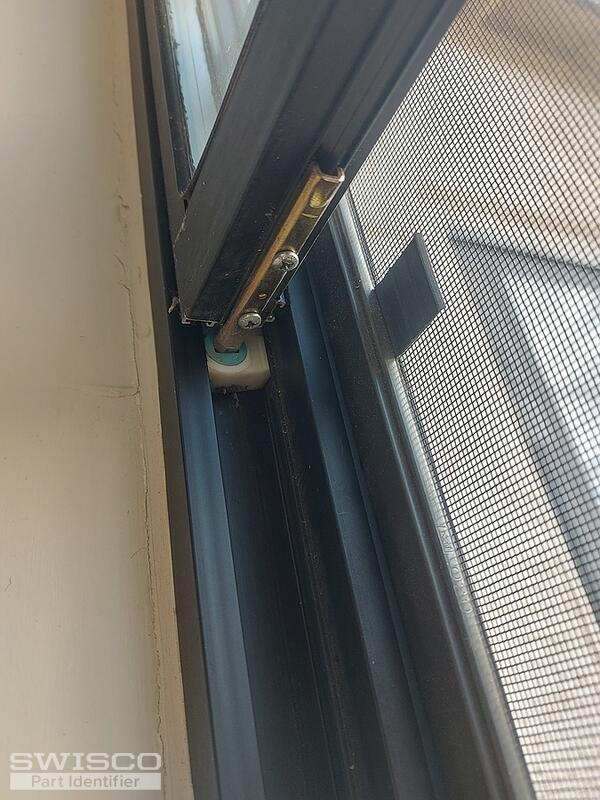

We have older Imperial brand windows and need some components to. The spring that balances the vertical slide window broke on two windows and I am trying to locate replacements. I would purchase 4 if possible.

Thanks

Joel

4 user uploaded images

10 Replies

Jasmine from SWISCO

Oct 23, 2024 11:32 am

Hi Joel,

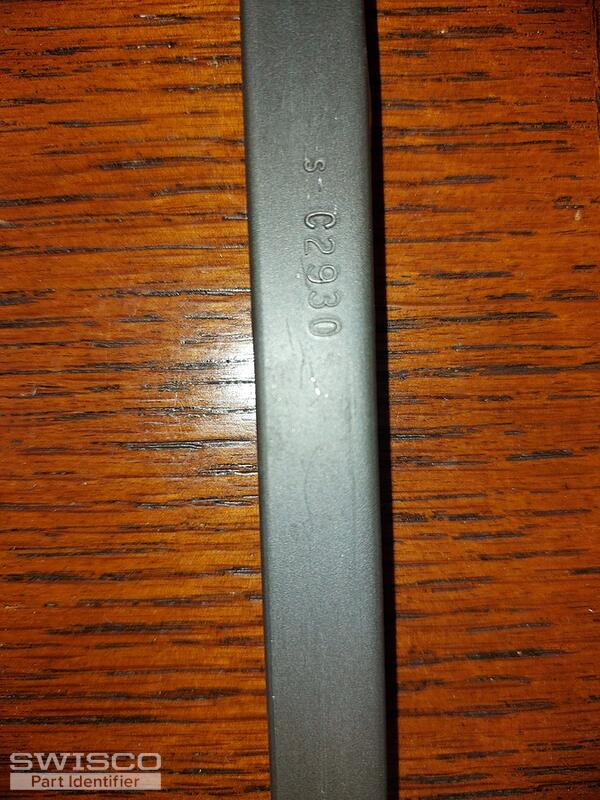

Thanks for reaching out! The channel balance you have appears to be the Series 770 Balance. To get you set up with the correct replacements, there are a few details I'll need to know about the balance.

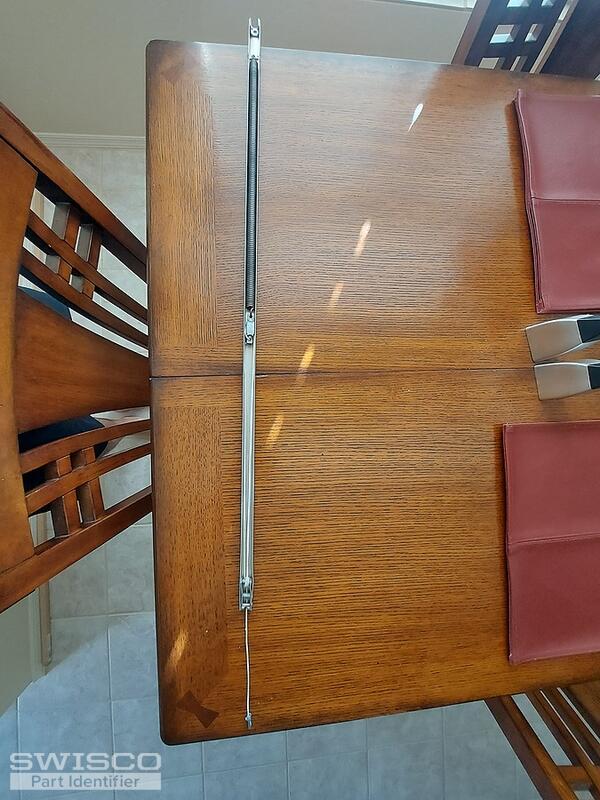

To start, please confirm the length of the metal channel not including the attachments. You'll also need to confirm the exact weight of your sash since our replacements have a different rating system for the stamp. Be sure to double check this information for both of the windows you are repairing.

Please feel free to reach out with any questions.

Home Owner from Scottsdale

Oct 27, 2024 2:15 pm

Hi Jasmine
In response to your questions, the metal channel is 30" long and the two windows are 16.2 lbs and 15.8 lbs.
Let me know if you need anything else.
Joel

Jasmine from SWISCO

Oct 28, 2024 9:19 am

Hi Joel,

Thanks for confirming this information. Your balances can be replaced with the S770-30 Balance with a 30B stamp option. This stamp can support a sash weighing 13 to 19lbs.

Be sure to double check that your balances have a 9/16" width.

Home Owner from Scottsdale

Oct 28, 2024 10:45 am

Thanks Jasmine
In measuring our current balances I would consider them closer to 5/8" as an outside measurement so a 9/16" unit would fit easily.
What is my process now to order 4 of the balances you noted?
Joel

Jasmine from SWISCO

Oct 28, 2024 11:05 am

Okay, great! You can use either the link in my response or the one tagged below to purchase them from the website, at your convenience. If you need assistance with placing the order, you are more than welcome to call (888) 991-1929 to speak with a member of customer service.

Have a good day.

Home Owner from Scottsdale

Oct 30, 2024 2:57 pm

Hi again
As I was about to order the parts, I thought of one more question. Given there are two balances on each window, should we be ordering a lighter gauge unit i.e. since each balance only needs to deal with approximately 8 lbs?
Joel

Jasmine from SWISCO

Oct 30, 2024 3:29 pm

Hi Joel,

The sash weight ranges on the website are based on (2) balances per sash. I've confirmed the correct stamp for balances that would support your 15.8lb and 16.2lb sashes.

Home Owner from Scottsdale

Oct 30, 2024 3:38 pm

Thanks very much again. I have placed our order.
Joel

Jasmine from SWISCO

Oct 30, 2024 4:30 pm

My pleasure to assist. Please don't hesitate to reach out with any other hardware repair projects you might have.

Have a great weekend!
