Window sash balance

A home owner from Florida says:
June 16, 2020

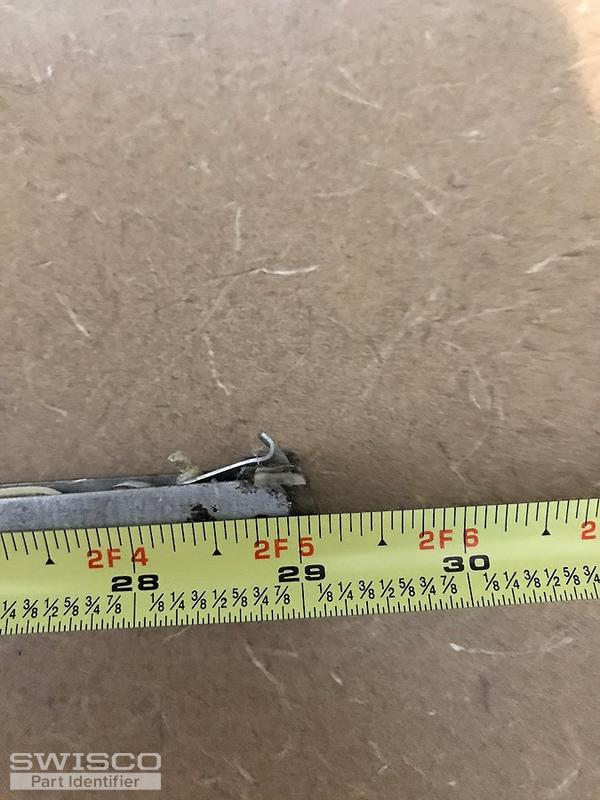

I have sash balances non tilting that are in the same size windows but some are labeled 28B USB and others are 28D USB I need to know which complete sash balancer I need to order
Thumbnail of the uploaded file named D2A05026-356C-4EF5-B617-0889DED0795D.jpeg
Thumbnail of the uploaded file named 56B10C6B-FC96-47BF-9E98-9B7DD0075BB6.jpeg
Thumbnail of the uploaded file named 56BC1F86-9100-4929-ACA3-495925A1C304.jpeg
Thumbnail of the uploaded file named 521713BD-7D8E-4442-825C-722BB749B906.jpeg
Thumbnail of the uploaded file named 691CD95F-06B7-4ECC-A0A0-2164AA69751E.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 19, 2020

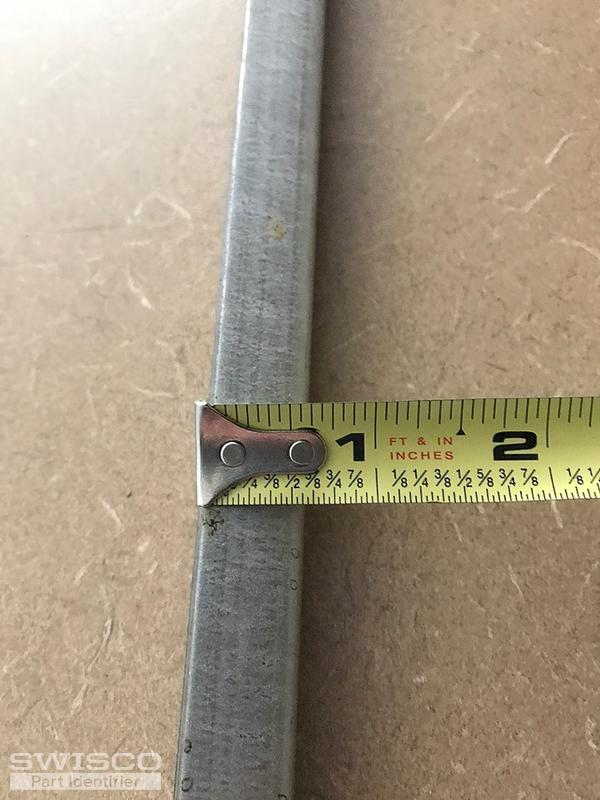

This looks like an S389-29 balance, with a stamp option of 2840. However, check the bottom nylon shoe's depth, or 'heel-to-toe' measurement. The Series 380 uses our 15-005 1" deep shoe; but if yours is 7/8" instead, you'll need balances custom built with the 15-029 7/8" deep shoe. We'd be happy to do this, but just let us know.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
Winged Channel Balance Shoe, 1" Depth
Winged Channel Balance Shoe, 1" Depth
15-005
$0.74
Winged Channel Balance Shoe, 7/8" Depth
Winged Channel Balance Shoe, 7/8" Depth
15-029
$0.82
