Window sash balance

Quick Learner

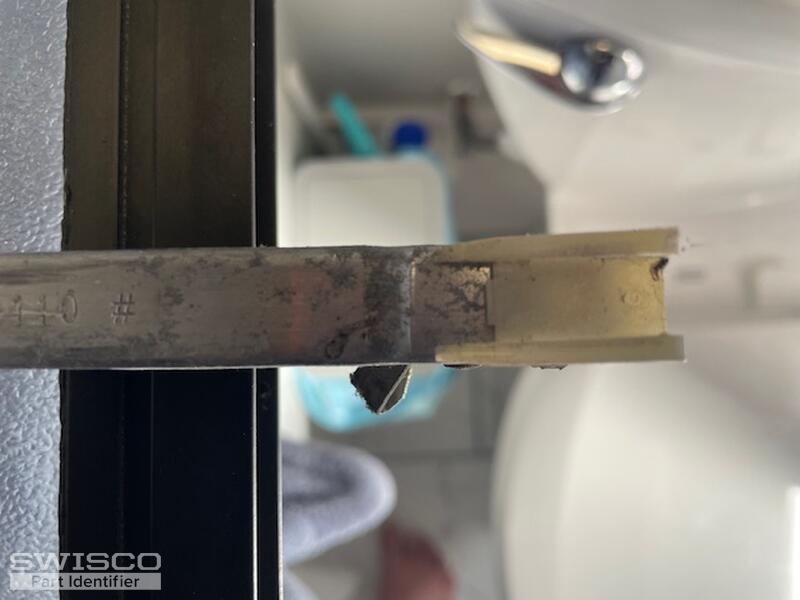

Both Left & Right are the same balance 1/2 inch wide and 12 in long
The stamp # on the parts are 1110
From what I saw of the balances the 395 series looks like the correct one

The window is a single hung
4 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. It looks like both end attachments lack 'wings', or side tabs. If that is true, see our S351-12 or S390-12 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See below. From your photos it looks like your shoe might be 1", but photos of measuring tape are not always reliable, so double and triple-check and see what matches best. For a stamp option choose 1110.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
