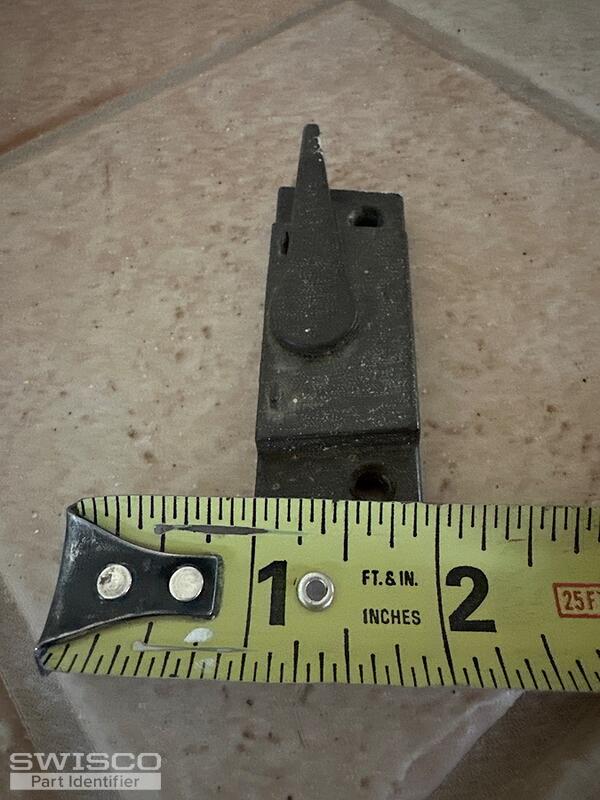

Need help identifying window lock hardware. Screw width is 2-1/4" and overall part depth is 5/16".
Lock screw width is 2-1/16" and depth of screws to face is 11/16"
Thank you.

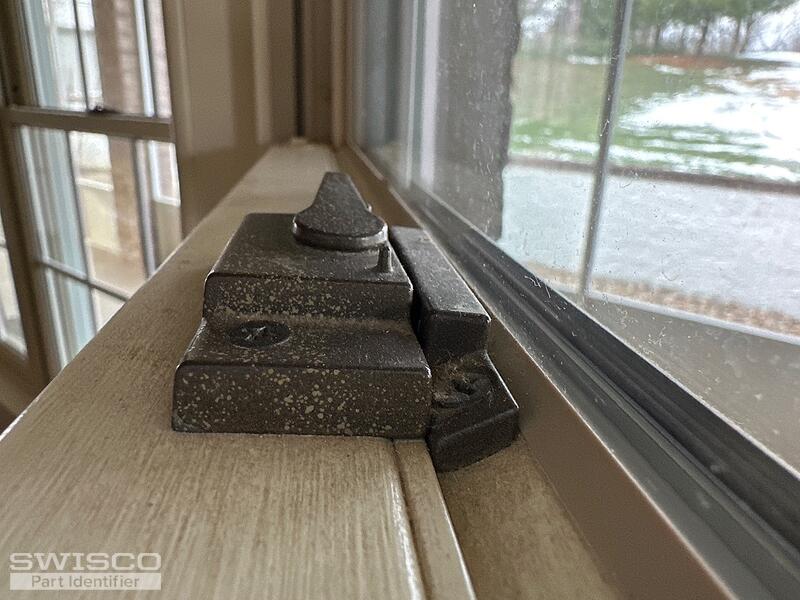

Window sash keeper and lock

Handy Person
Jan 26, 2025 9:38 am
5 user uploaded images
2 Replies

Jasmine from SWISCO
Jan 27, 2025 4:03 pm


Hey there,
Thanks for your post! Your sweep lock can be replaced with the 90-278 Lock. I am confident this should work based on its design and the installation hole dimensions but be sure to double check them.

Dimensions for 90-278
I'm sorry to say we cannot provide you with a replacement for the keeper. We've come across it quite a few times over the years but have not been able to source a suitable replacement for it.
Our sincerest apologies that we could not be of more help with this part of the repair!
