Window sash pivot shoe replacement ( spiral balance) : SWISCO.com

Home Owner from 34655

Nov 4, 2025 10:27 pm

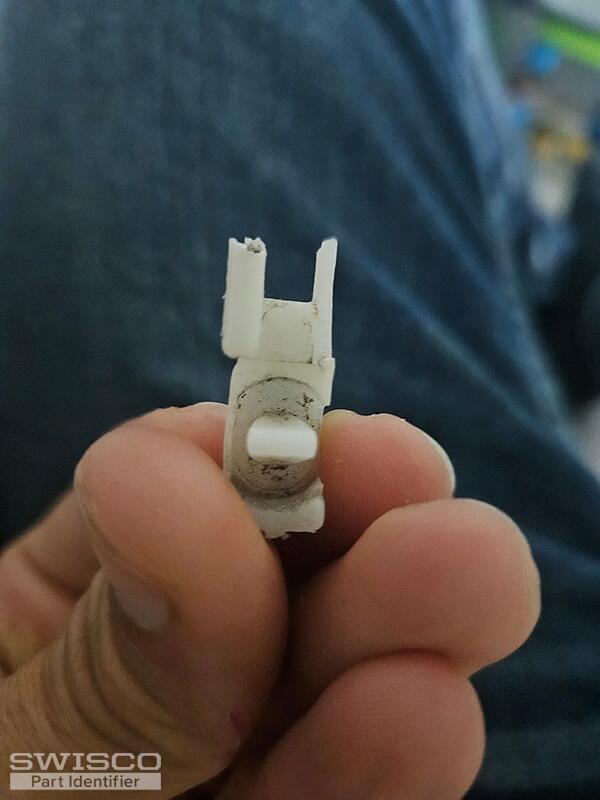

I have all the measurements in the pictures I'm trying to find a replacement for this pivot shoe for all my windows

4 user uploaded images

4 Replies

Jasmine from SWISCO

Nov 5, 2025 12:02 pm

Thanks for your post! This shoe reminds me of the 17-059 Sash Balance Bracket. To determine if this is the correct replacement match, be sure to double check the dimensions below.

These are typically used with 3/8" non-tilt spiral balances.

Alternate image for 17-059

Home Owner from 34655

Nov 5, 2025 12:17 pm

Thanks so much, that was really helpful.
I ordered this part and hopefully it fits

Jasmine from SWISCO

Nov 5, 2025 1:48 pm

My pleasure to assist! Please don't hesitate to reach out with any other hardware repair questions you might have.

Best of luck with your repairs!
