Window sash pull

Contractor from Paragould, AR

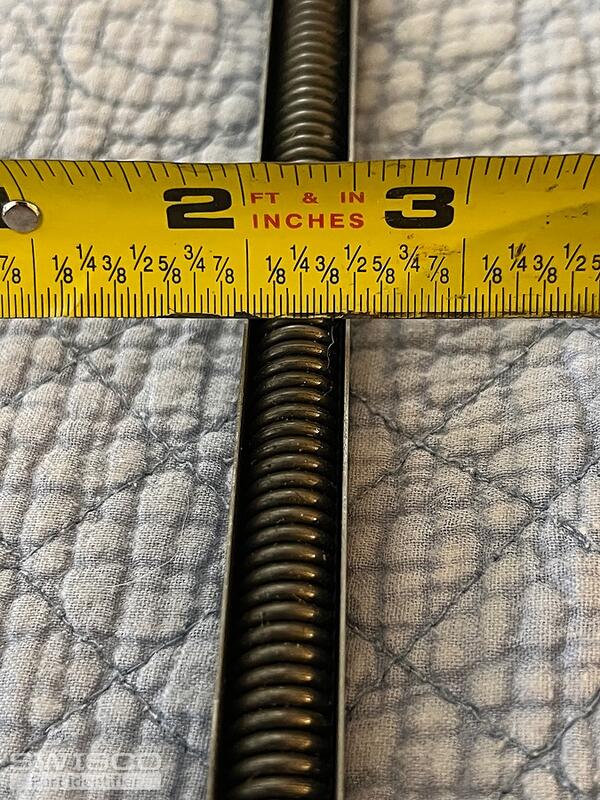

This sash pull is a 1/2" wide,
32 5/8" long
& has a 328 stamp on it.
If you need anything else, please call
4 user uploaded images
8 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but I can't quite make out the style of the bottom fitting attached to your balance channel. If you could show us a clear photo of the front of the fitting and the clip used to attach the top of the balance to the jamb, we can go from there. Thank you!

Contractor from Paragould, AR

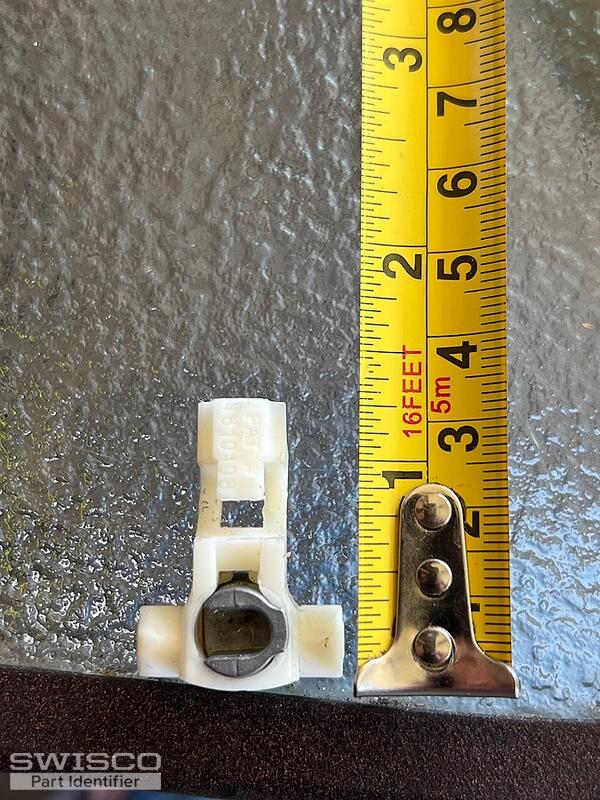

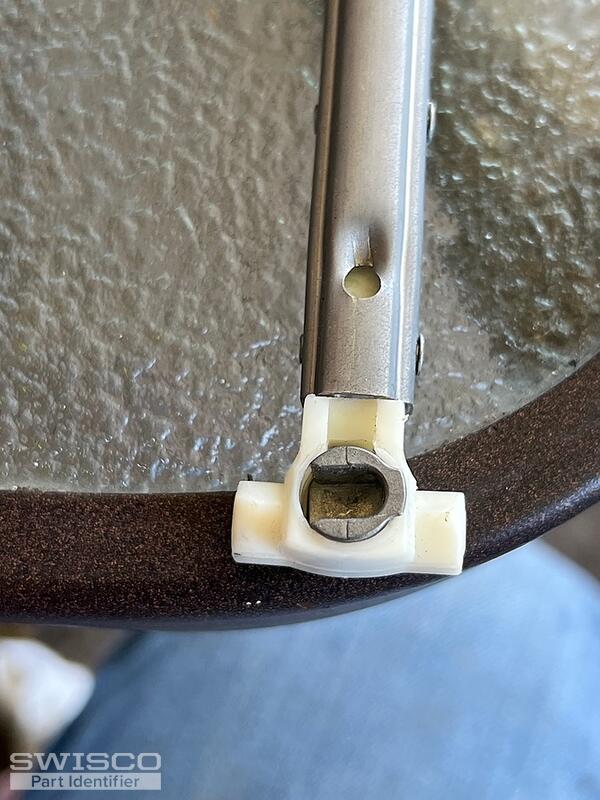

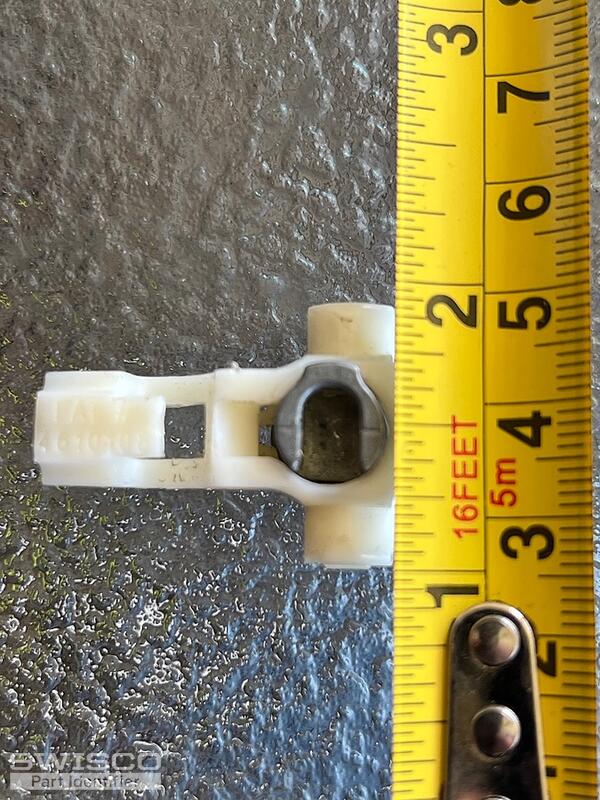

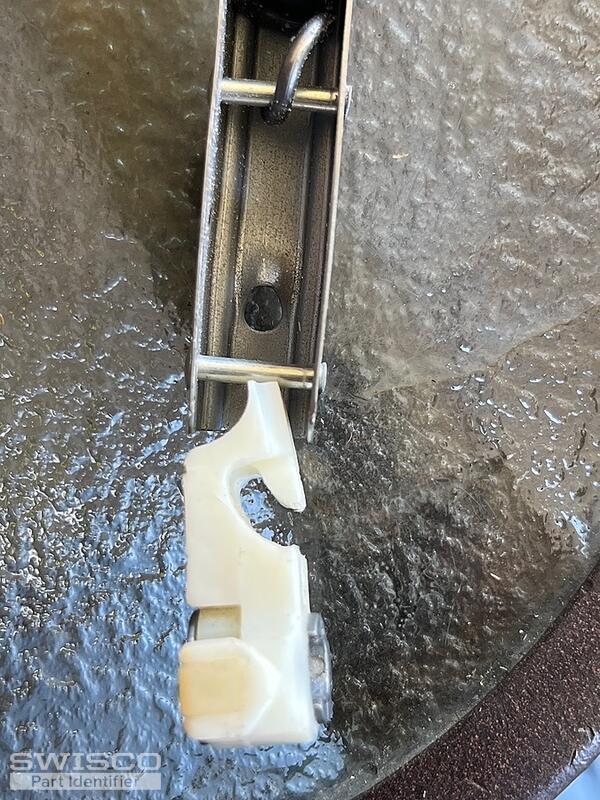

Here's the pictures you requested

Thanks for all your help
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. It looks like you have skinny ribbed balances used with the 15-230 T-lock shoe shown below. We can supply them but it will need to be a custom order. We'll just need to confirm the number of balances that you need, with the minimum being two.

Dimensions for 15-230
Dimensions for 15-230

Contractor from Paragould, AR
I want to order two complete balances using T lock shoe 15-230.
Casey
Casey from SWISCO
SWISCO
Expert

Great, before we send over the order link, we'd like to confirm if your balance has a screw tab or hook attached to the end of the pulley cord. It looks like it may be a hook based on your photo but we want to be sure before sending you an order link.

Contractor from Paragould, AR
Screw tab
Casey
Casey from SWISCO
SWISCO
Expert

Thank you for confirming. We just sent over an order link and price quote for you to review. Take a look and let us know if you need anything else.
