Window sash side slider

A home owner from Charloote North Carolina says:
April 20, 2020
26B RA BS1.
Thumbnail of the uploaded file named 15874134740724381929413745316957.jpg
Thumbnail of the uploaded file named 15874134972564826519561924986269.jpg
Thumbnail of the uploaded file named 15874135142431586808553163320546.jpg

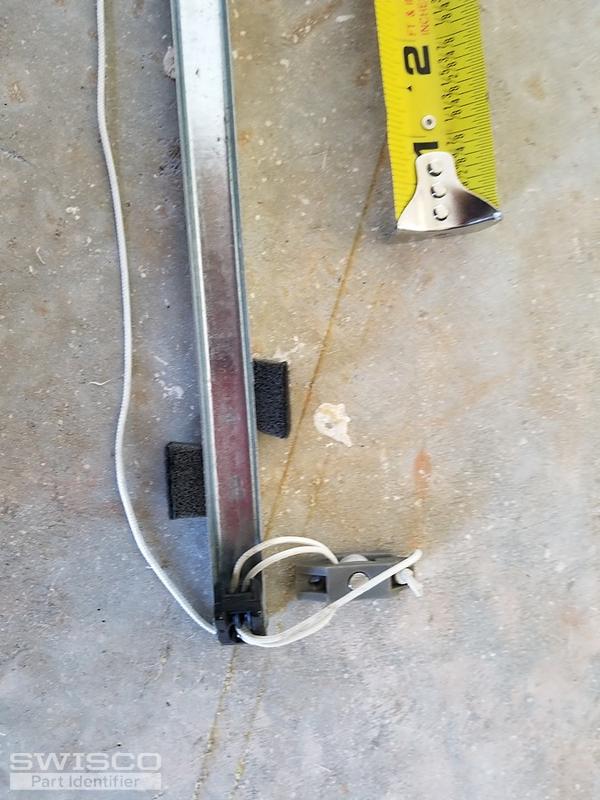

Thumbnail of the uploaded file named 1587413562813159053418993251420.jpg

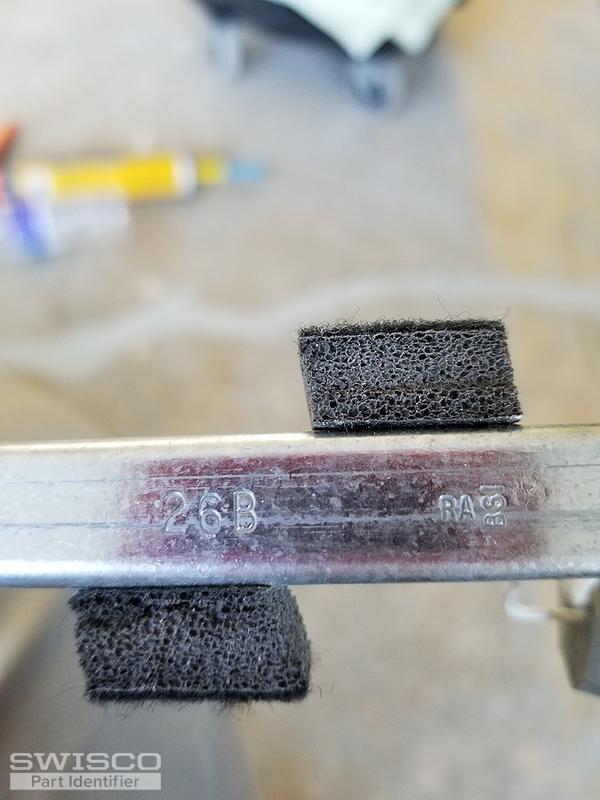

Thumbnail of the uploaded file named 15874136515053404539067569645235.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 23, 2020

Looks like you need a new channel balance. We should definitely be able to supply this, but I need a bit more information before I make my recommendation. Specifically, can you show me a clearer photo of the clip at the end of the cord? This is how your balance installs in the track at the top. I can't really make it out from that photo and it is an important detail. Thanks!
A home owner from Charloote North Carolina says:
April 28, 2020
Sure. Thank you for reply. Here is picture.

Thank you.

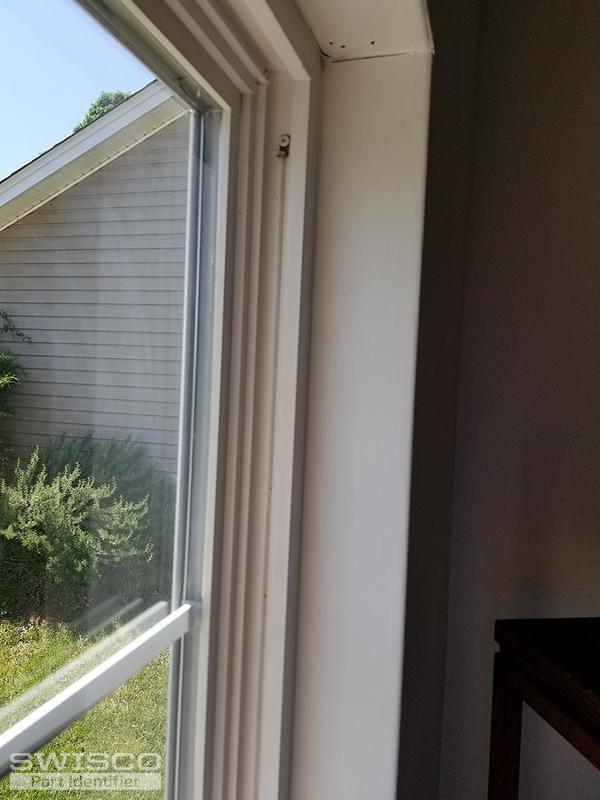

Thumbnail of the uploaded file named 15880894188298628624897301510160.jpg

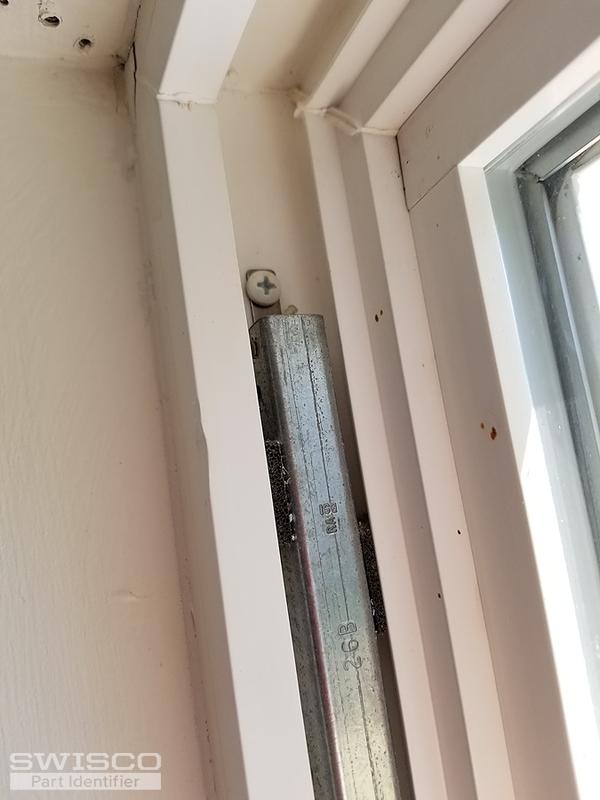

Thumbnail of the uploaded file named 15880894588854625181033078316200.jpg

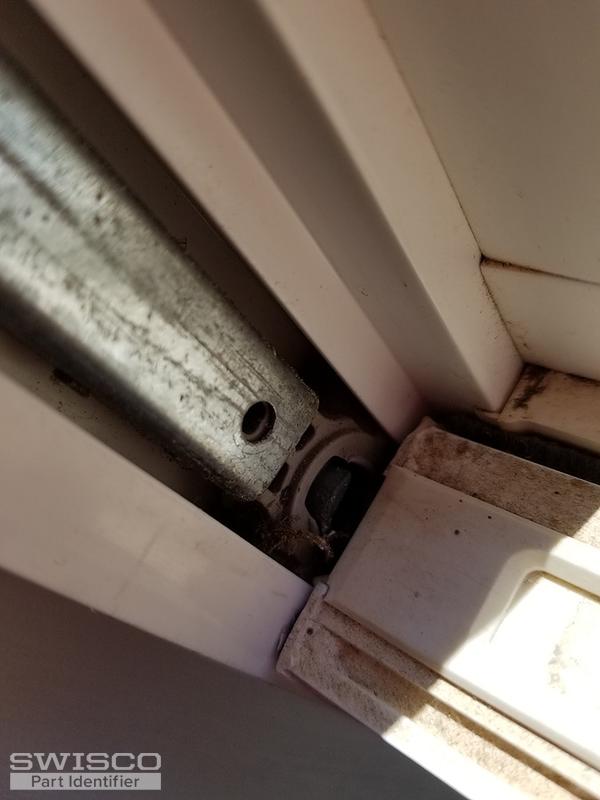

Thumbnail of the uploaded file named 1588089498883145482760502495684.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 28, 2020

Thanks! I recommend our S795-26 channel balance. I'm very confident that this will work for you, but there is one thing you need to consider. The S795-26 comes with a 'closed' cam by default. Your cam is open, which means you need to purchase our 15-195B separately and swap them out when you get them. The video below explains in more detail.
A home owner from Charloote North Carolina says:
April 29, 2020
Thank you. I will follow your recommendation.

26" Series 795 Channel Balance
26" Series 795 Channel Balance
S795-26
$13.45
1-1/4" T-Lock Balance Shoe, Open Cam
1-1/4" T-Lock Balance Shoe, Open Cam
15-195B
$1.97
