Window sash sizing

Question

I have several windows with broken sash parts. When looking at the windows Channel balance look too long. The balance top part appears to be 19-002. The bottom 15-001. The rail is marked 2140 and is 22" long. The window is 22-3/4 high so I think the channel balance is too long. The window weight is 14.6 lbs. The top sashguide was 18-008 but was cut to fit. If I want to replace the channel balance with the correct one what length do I need for a 22-3/4 inch high window?

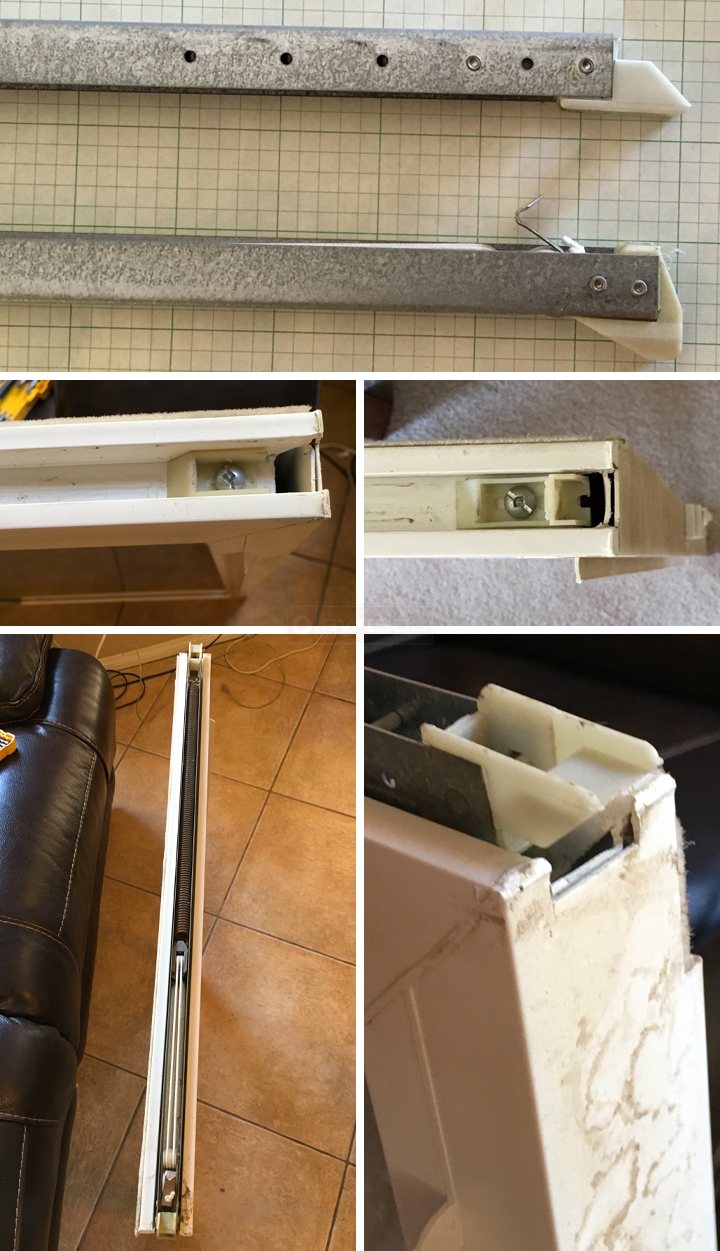

User submitted photos of window hardware.

Tom · Accepted Answer

Thanks for posting. You mention that your balances are too long. Did you ever find that your windows never worked right in the past? If they worked fine, I see no reason to change anything. However if you always had problems, let me know the height of the visible glass and the weight of the sash.
