Window sash springs

Handy Person

Mar 28, 2021 12:03 pm

I am trying to figure out how to remove the Springs to replace some in my windows but I can't figure out how to remove this from inside the track. Your help would be greatly appreciated.

1 user uploaded image

4 Replies

Bob from SWISCO

Mar 30, 2021 11:25 am

Please watch the video below which shows how to remove and replace coil balance systems. If you can show me the pivot shoe that the coils attach to, I can tell you the replacements you need.

Handy Person

Mar 30, 2021 1:00 pm

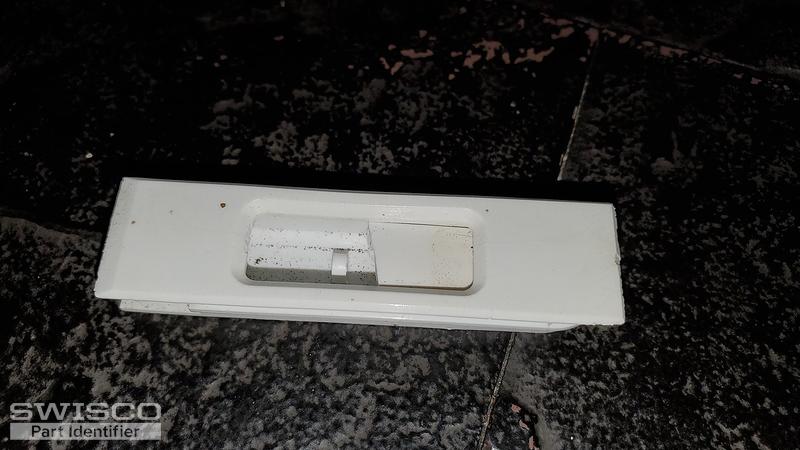

The top latches and bottom pivot I will replace as well.
Can you please tell me stock numbers for these parts and the coul balance?

3 user uploaded images

Bob from SWISCO

Mar 30, 2021 2:16 pm

For the tilt latches, see our 26-243 and 26-244. For the pivot bar, see our 26-030. Again, for the pivot shoe and coil balances I will need to see the pivot shoe out of the window for full identification. Many thanks.
