Window screen corner

Professional from Astoria NY

Oct 11, 2023 10:07 am

Trying to find the correct replacement for these corner joints. I can't find any manufacturer mark on the screen that I have. Thank you.

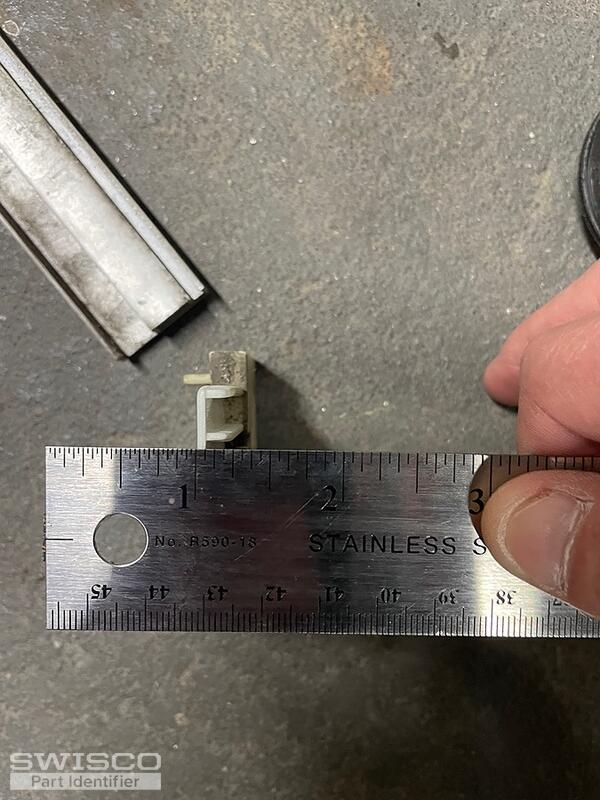

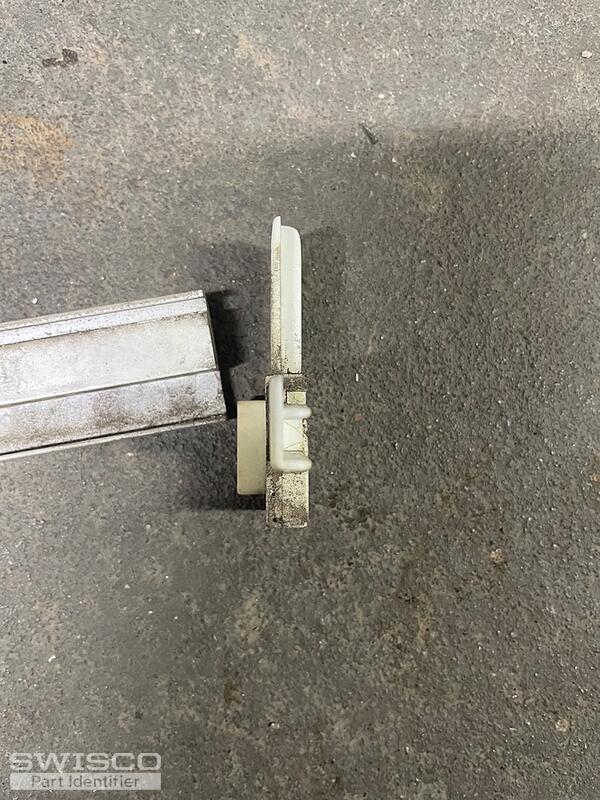

2 user uploaded images

4 Replies

Casey from SWISCO

Oct 11, 2023 3:33 pm

Hello,

We'd be happy to look into this for you but we would need to see the corner uninstalled. We'll also need you to write out the exact thickness of the frame opening where the corner installs to narrow down your options. Thank you!

Professional from Astoria NY

Oct 11, 2023 5:47 pm

The openings on the frame is 1/4 and 1/8. In addition to the corners will need part numbers for the frame itself.

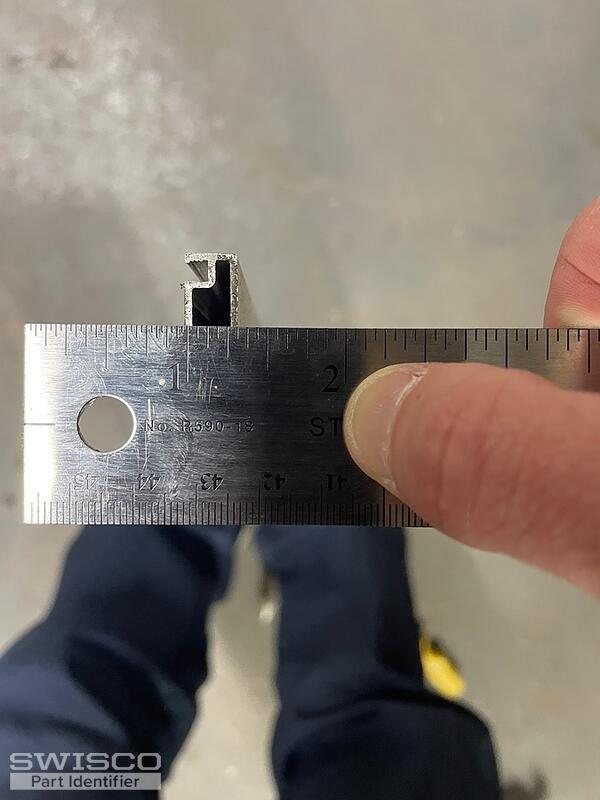

5 user uploaded images

Dave Sr. from SWISCO

Oct 13, 2023 9:00 am

I don't believe that the screen corner shown in your photos is still available for your "extruded" screen frame. The screen corners that we carry are used on "roll" metal screen frames. With that being said, take a look at the corner options related on this page to see if you might be able to adapt one of them to fit your screen frame.
