Window screen corner

Quick Learner from NH
Jun 11, 2024 6:31 pm

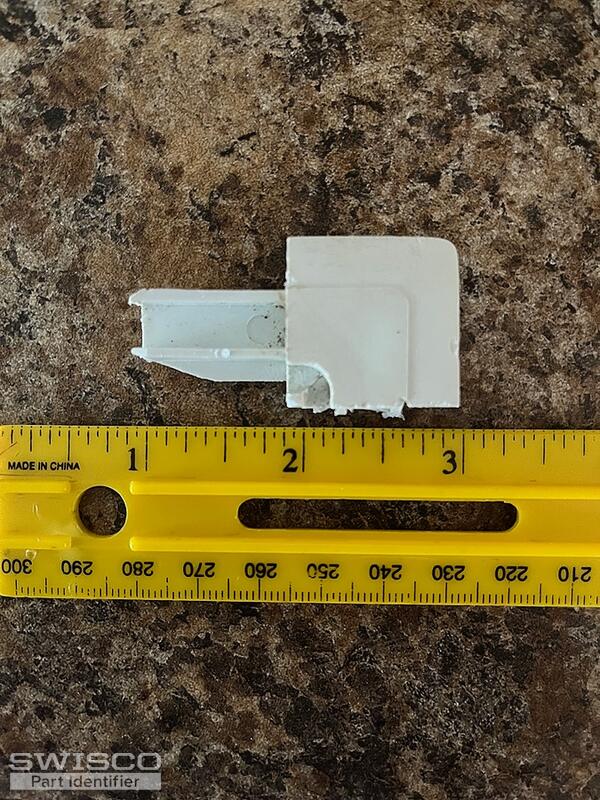

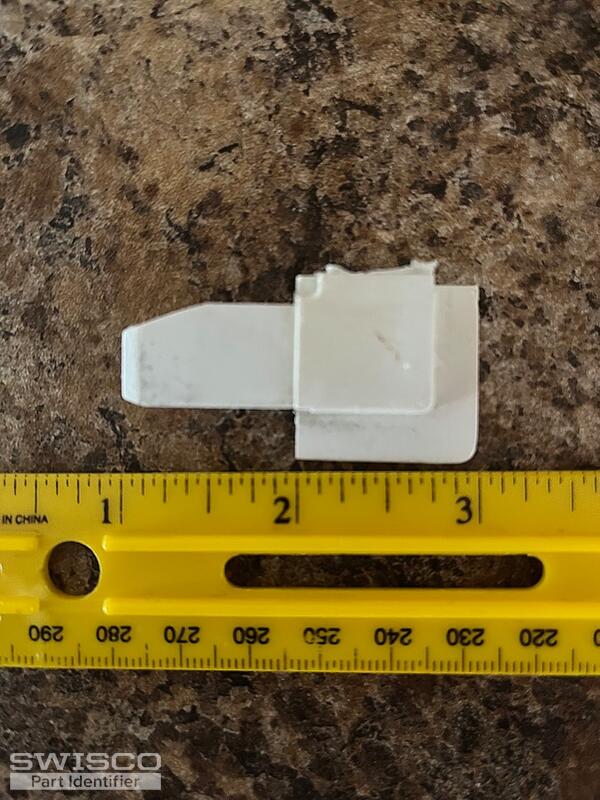

Looking for a replacement for this. Thank you. Aluminum frame screen
IMG_4648 IMG_4647
2 user uploaded images
5 Replies
Tom
Tom from SWISCO
Jun 13, 2024 12:45 pm
SWISCO
EXPERT

We may have a corner that can replace this, but before I recommend anything I'll need to know the size of the frame itself. Can you tell me its thickness and depth? I can then check our inventory for anything that might be compatible with that size.

Quick Learner from NH
Jun 13, 2024 2:04 pm

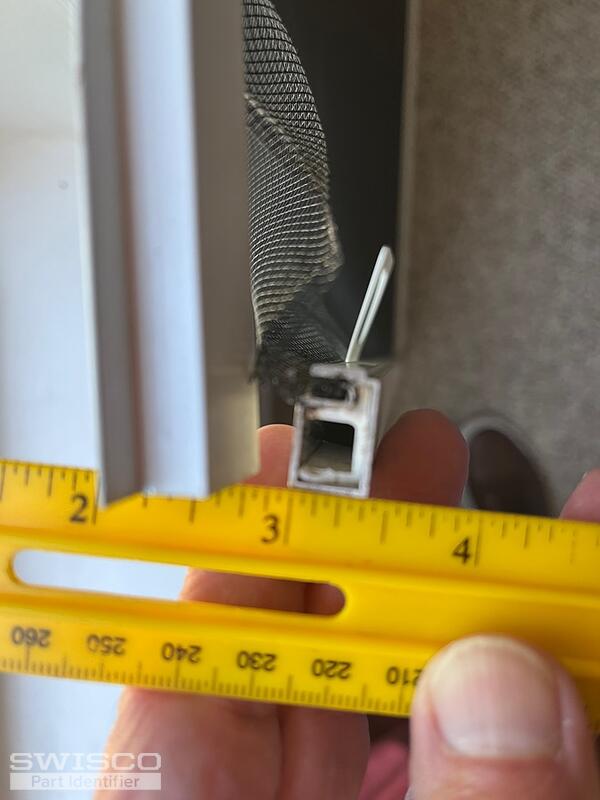

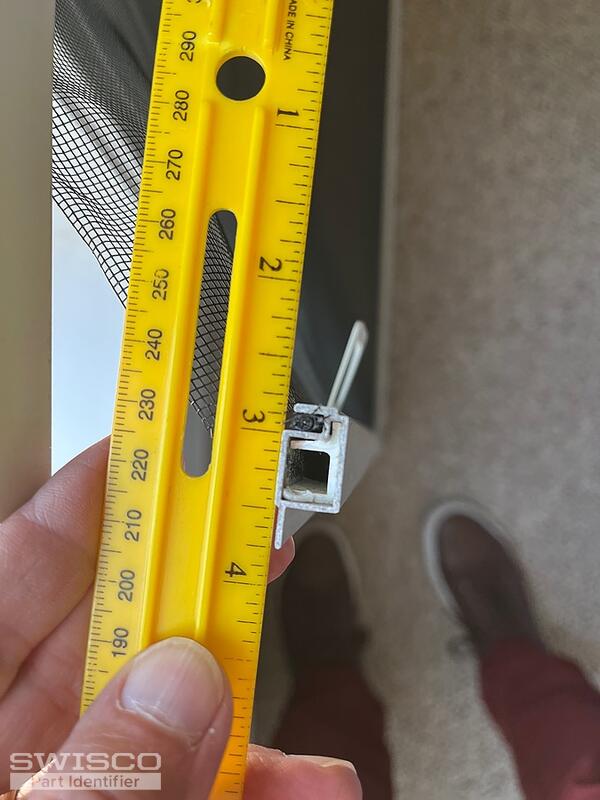

Here are pictures of the frame. Thank you
IMG_4654 IMG_4653
2 user uploaded images
Dave Sr.
Dave Sr. from SWISCO
Jun 17, 2024 1:21 pm
SWISCO
EXPERT

Thanks for the additional information. Unfortunately, I'm not sure we can supply you an exact corner to fit your extruded screen frame. I don't believe the corners are still available. My first choice would be the 95-265 corner, however take a look at all the suggested overlap corners to see if you could adapt any of these to your screen frame. My ideas are 95-205, 95-207, and 95-265. You might need to do some trimming for them to fit your frame but if you're handy and don't mind getting creative it should be possible.

Quick Learner from NH
Jun 26, 2024 4:13 pm
Thank you for all your help. I discovered that the part 95-265 would fit in my application if the inner flange piece was removed. Easy to do.
Dave Sr.
Dave Sr. from SWISCO
Jun 27, 2024 10:31 am
SWISCO
EXPERT

Awesome, I'm glad to hear it! Best of luck on the project and please feel free to contact us if you had any follow up questions.
