Window screen frame corners

Home Owner from Grayslake Illinois

Jun 4, 2025 2:50 pm

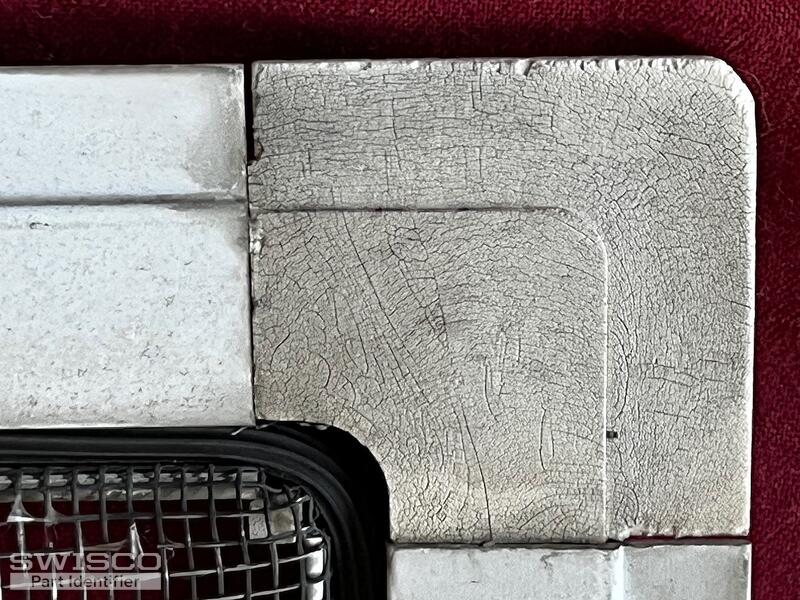

I am looking for 92 of the plastic corners that fit into the aluminum frame rails that hold together my window screen frames. The windows are Cresant windows and the house was built in 2005.

2 user uploaded images

7 Replies

Home Owner from Grayslake Illinois

Jun 4, 2025 5:29 pm

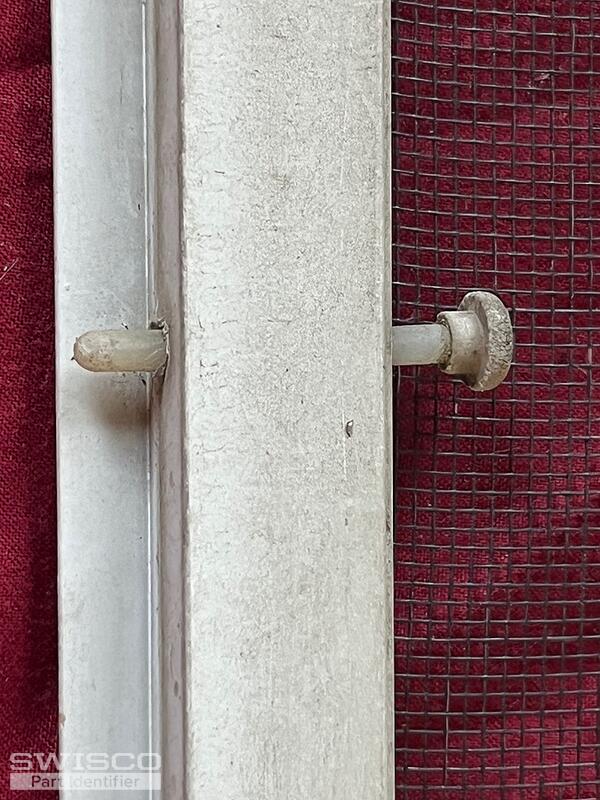

I forgot to add I will also need the plastic corners pins that secure the bottom of the screen frame into the window opening. I will need about 50 pins. Thanks Joe

Casey from SWISCO

Jun 9, 2025 3:33 pm

Hello,

Take a look and compare the dimensions of the 70-195 screen pin to yours.

Dimensions for the 70-195 window screen pin

As for the corners, we may be able to help but we'll need to start by having you write out the exact thickness of the frame opening where the corner installs to narrow down your options. It would also help to see an undamaged corner uninstalled. Thank you!

Home Owner from Grayslake Illinois

Jun 10, 2025 9:48 am

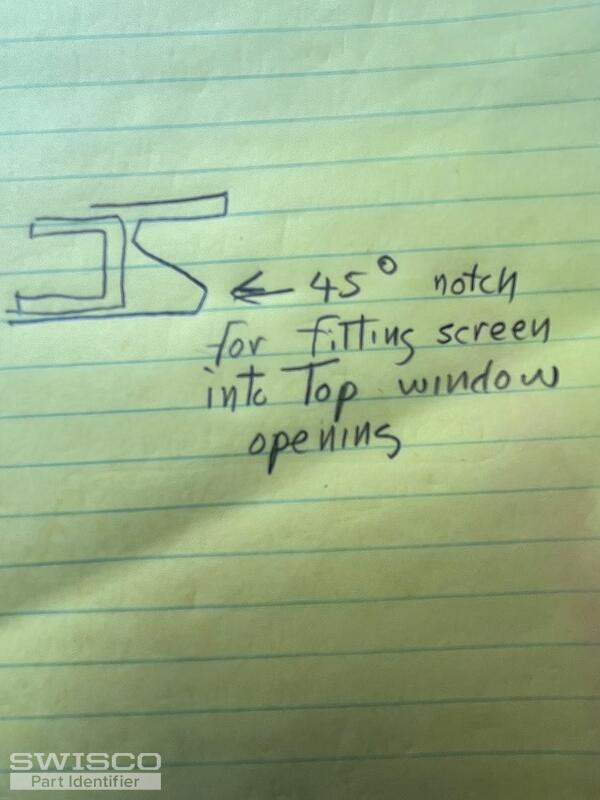

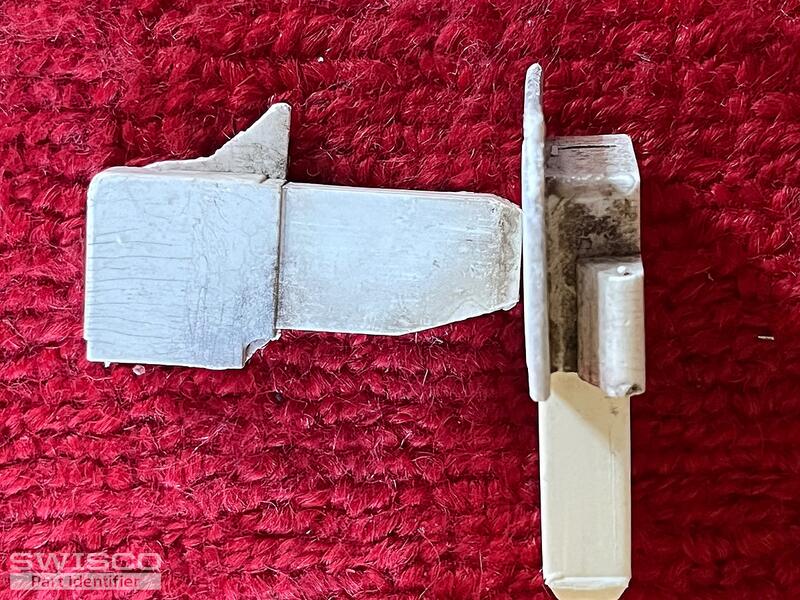

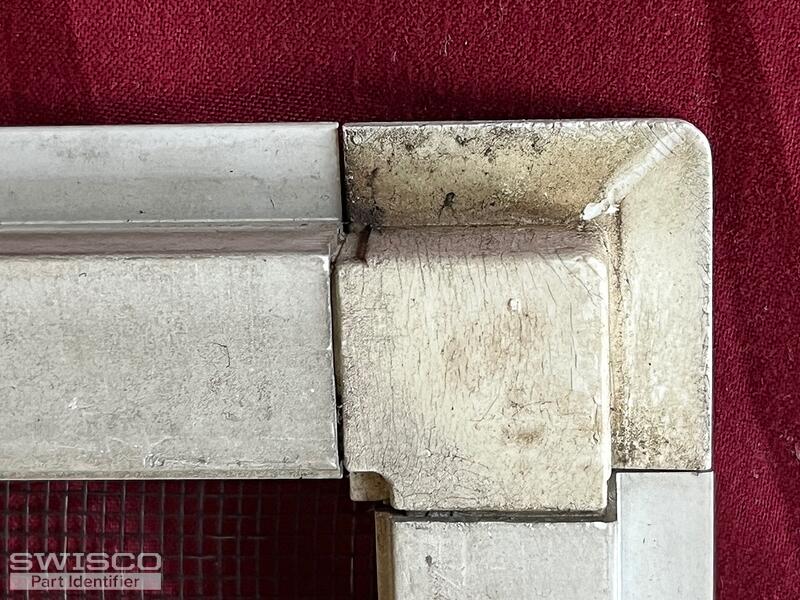

Hi Casey, Thanks for your response. The pins look like they should work. I am reluctant to take apart a frame to remove a damaged corner piece but have sent you more photos that might more effectively get across the shape and function of the corner piece. Let me know if I should disassemble a frame. Thanks

5 user uploaded images

Casey from SWISCO

Jun 10, 2025 12:47 pm

Thanks for getting back to us. The additional photos help but we'll still need you to write out the exact thickness of the frame opening where the corner installs. In the meantime, you're welcome to look through our selection here.

Home Owner from Grayslake Illinois

Jun 10, 2025 2:07 pm

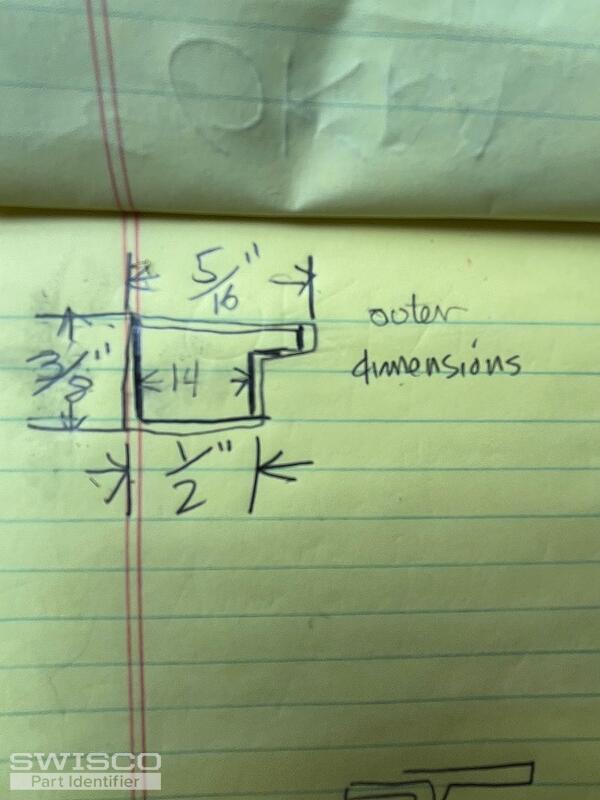

Casey, Here are the outside dimensions of the aluminum frame rails. Thanks

2 user uploaded images

Dave Sr. from SWISCO

Jun 12, 2025 8:13 am

I agree with Casey that the 70-195 looks like the pin you need. As for the corners, take a look at the 95-206, which have the same back lip extension to hold the top of the screen into the window frame. Also, take a look at the 95-205 and 95-265 corners without the back lip extension. Take note that, in some cases, I had to retrofit the leg to fit into the screen frame. Review the suggested corners and see what you think.
