Window seals for Atrium Bay Window : SWISCO.com

Home Owner from Las Vegas, Nevada

Jun 8, 2023 6:00 pm

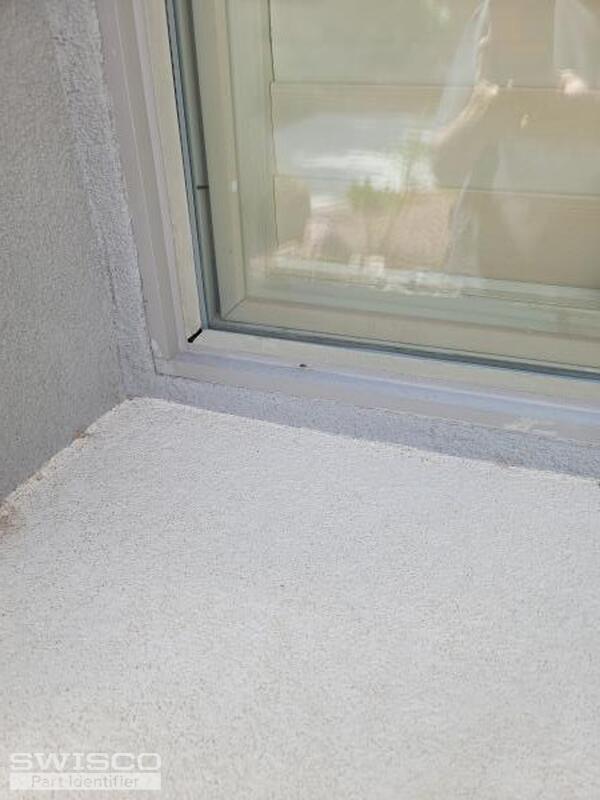

I have two (2) windows from Atrium where the seals have shrunk because of the sun.

Each window is approx 3 ft X 5 foot. I need replacement seals.

Thank you,

Greg

1 user uploaded image

4 Replies

Bob from SWISCO

Jun 9, 2023 11:54 am

Thanks for writing in. There's a few possibilities. Can you remove a sample and show us the end profile dimensions? That would help a ton in narrowing down our options. The video below explains what we'll need to help you.

Home Owner from Las Vegas, Nevada

Jun 9, 2023 3:46 pm

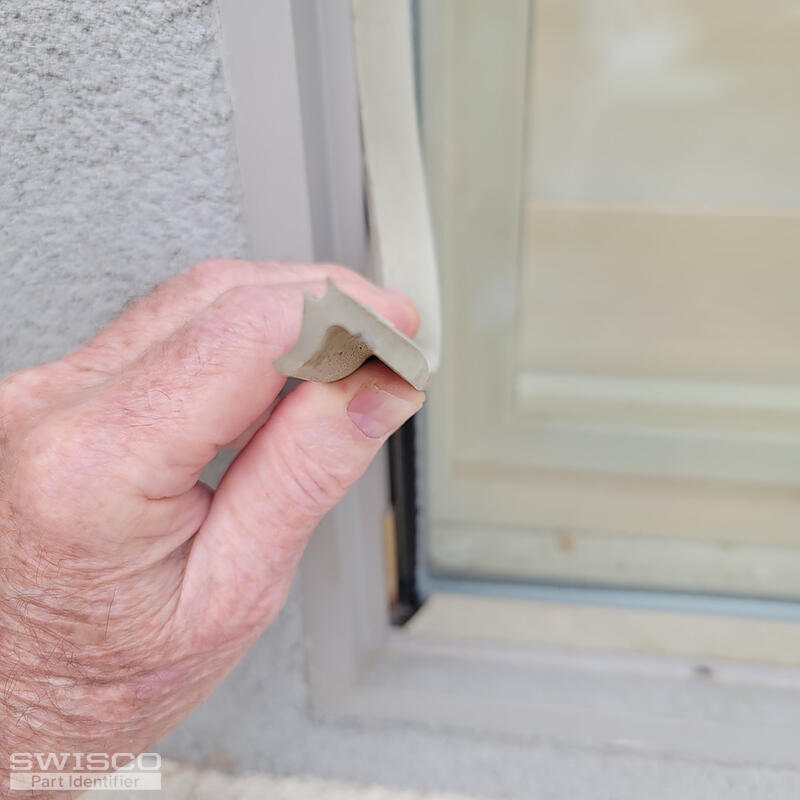

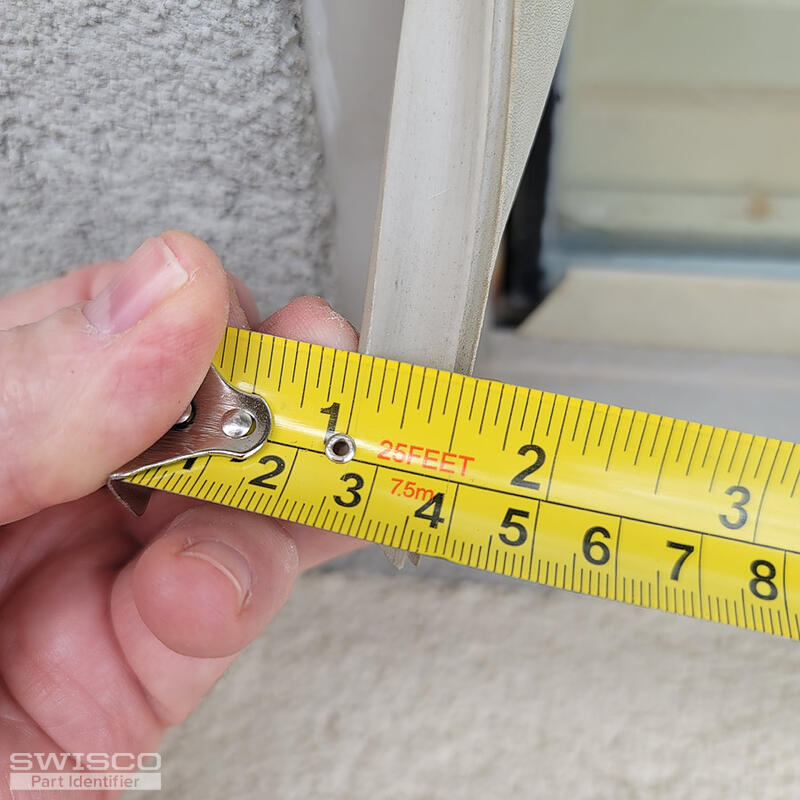

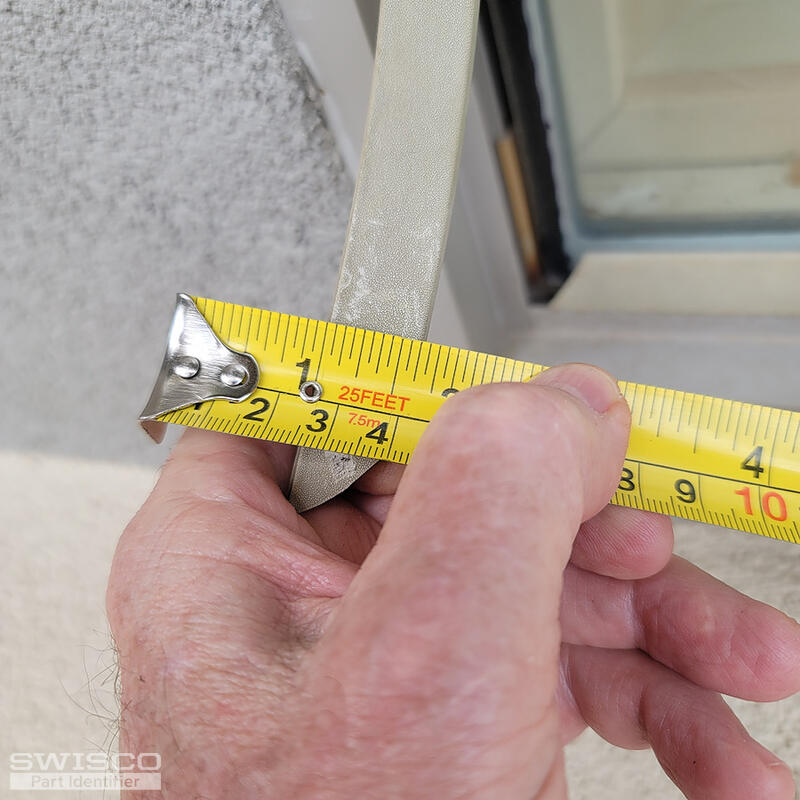

Attached are photos the front of the gasket appears to be 5/8ths wide back of seal 1/2 inch. The seal has shrunk in length it may have shrunk a bit ib width too. As Vegas summers are brutal.

Thank you Greg

3 user uploaded images

Bob from SWISCO

Jun 9, 2023 4:47 pm

Thanks for getting back to me, Greg. This looks like an older type of glazing that is quite a bit thicker than anything we carry--our glazing bead is all thinner vinyl. The closest shape we have to this is our 55-029--again, it's much thinner, and I can't make any promises, but it might work as a substitute. See the dimensions below to confirm. Another possibility is a thicker window gasket, like our 59-067. It's not the same shape, and I think it might be too small, but take a look at the image below for comparison. These are our closest matches. If you try either, let me know how you make out.

Profile diagram of 55-029

Profile view of 59-067
