Window slider

Question

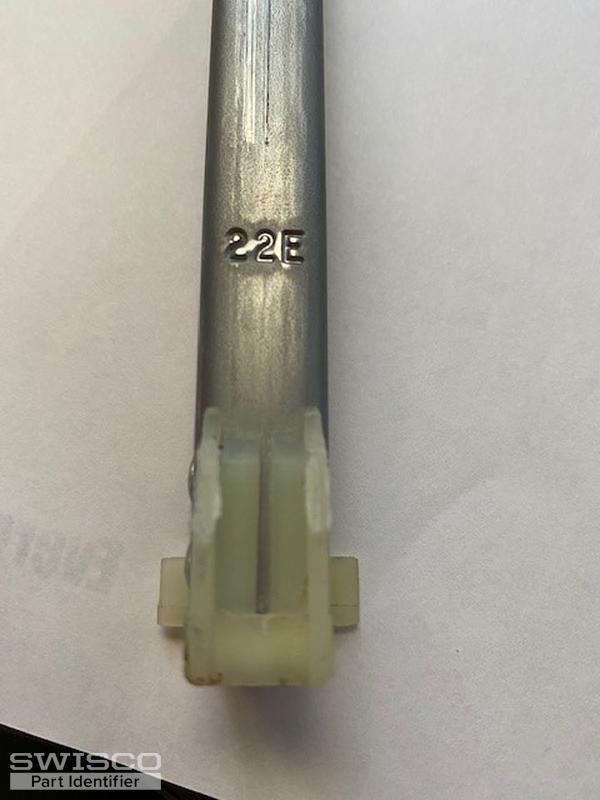

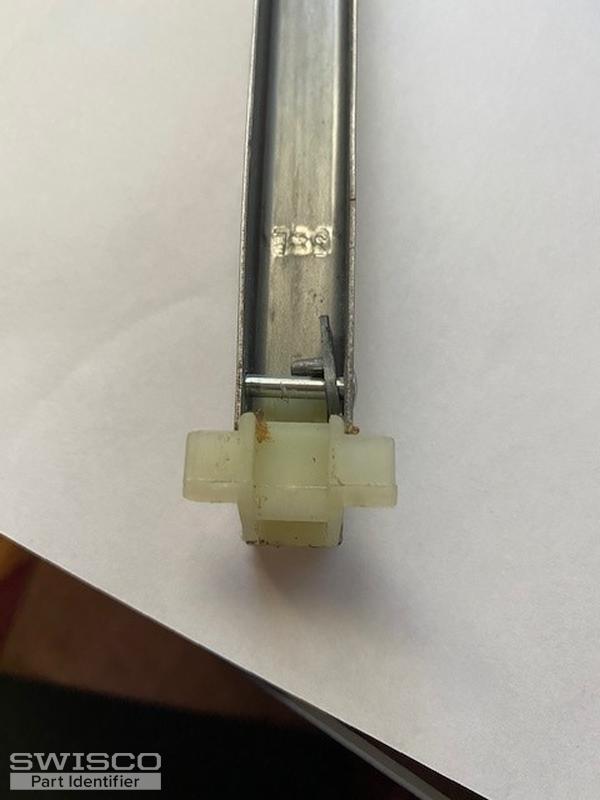

The id number on the track is 22E. The length is 23".
I need (4) complete with spring and pulley system. I can send you additional photos of the pulley system
The track has 6 holes in it. The 1st hole is 5/8" Center to center of rivet.
The next hold is 1/2" center to center 11/16" center to center. The 4th hole is 1 1/8" center to center on hole # 3. # 5 is 7/8" center to center on # 4. #6 is 2" center to center on #5. Center of hole #6 is 6" from end of track.

Can I buy locally? Where can I find instructions to install replacements.
Thank you for helping me. How can I expedite delivery?

Bob · Accepted Answer

This looks like an S380-23 Channel Balance to me. Just make sure the depth of the bottom nylon fitting, or the shoe as we call it, is 1". The depth can be thought of as the 'heel-to-toe' measurement, perpendicular to and just beneath where the metal channel ends. For a new stamp option choose 2250. We offer a range of shipping options including Priority Overnight that you can select during checkout.
