Window spiral balance

Quick Learner from USA

Feb 26, 2018 10:16 am

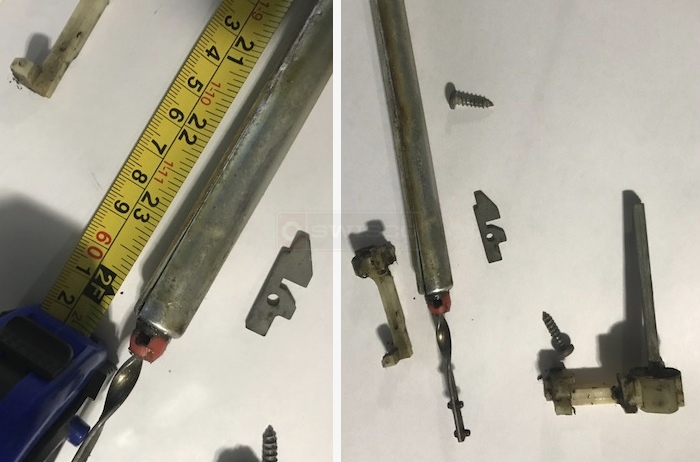

I believe I have properly identified this part as the 24? series 600 Spiral Tilt Window Balance with the Red Tip. Could you verify.
Also, the parts that go with it is needed. I believe I captured all of them in the pictures but could you tell me what they may be so I can order them. I will be ordering 14 for 7 windows.

1 Replies

+ Add a Comment

Paul from SWISCO

Mar 1, 2018 11:42 am

EXPERT

Great observation! Our S600-24 spiral balance with the red tip would make a great replacement for you. The pivot shoe you have been using has since been replaced with the 15-015 pivot shoe. Look it over to confirm all the measurements match up. It would also be worth considering our 75-006 spiral balance charging tool to help you with your replacements.
