Window spiral balance and pivot shoes

Question

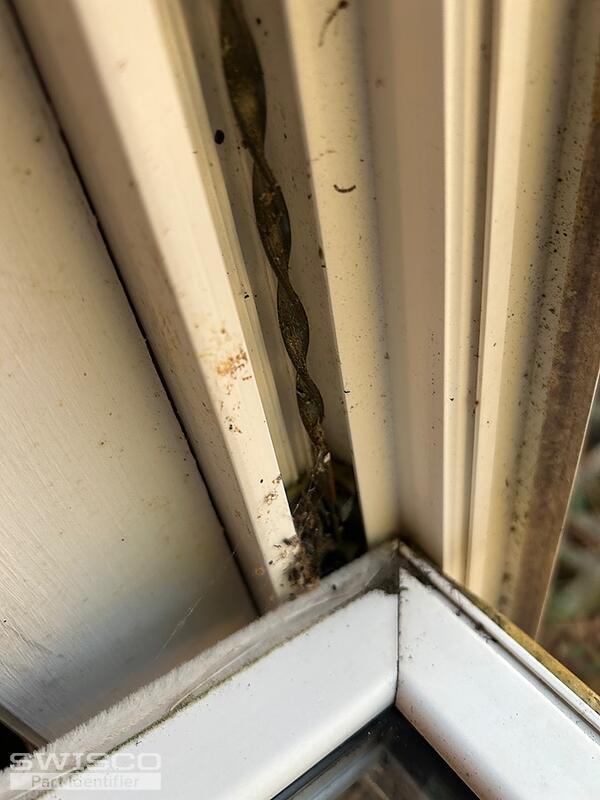

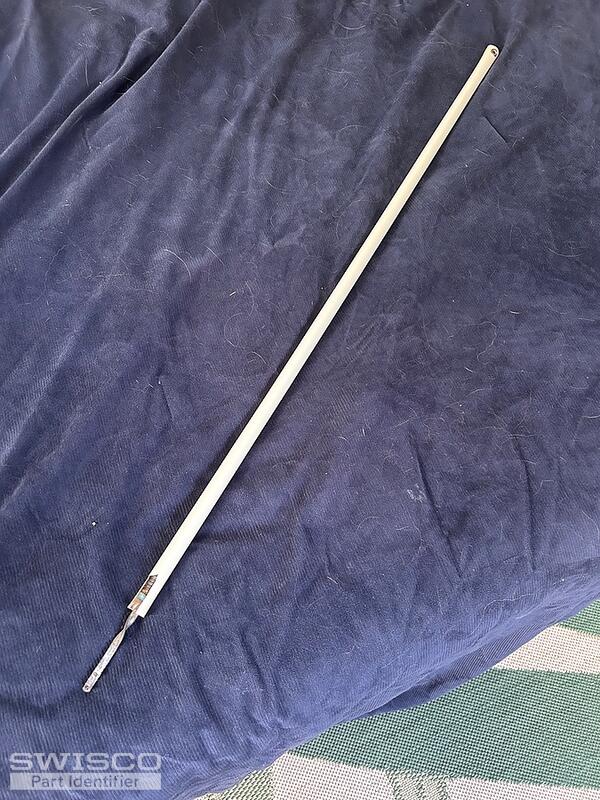

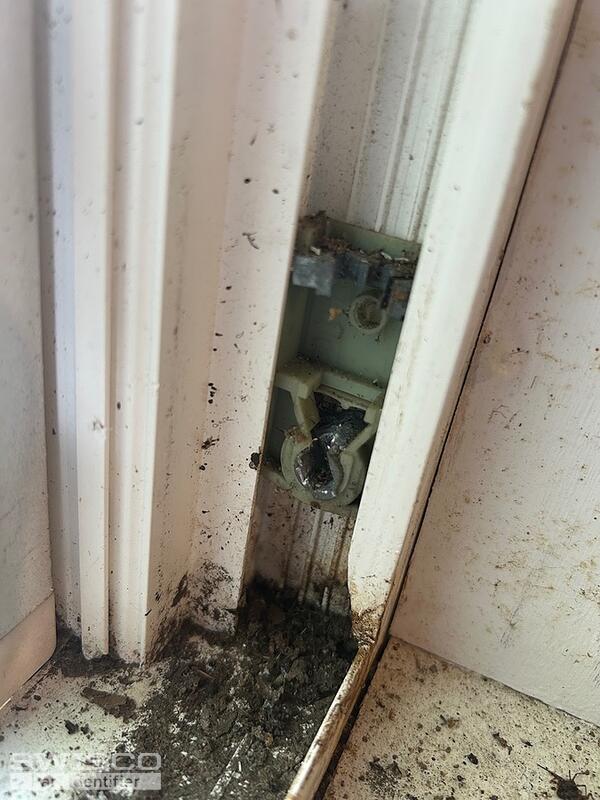

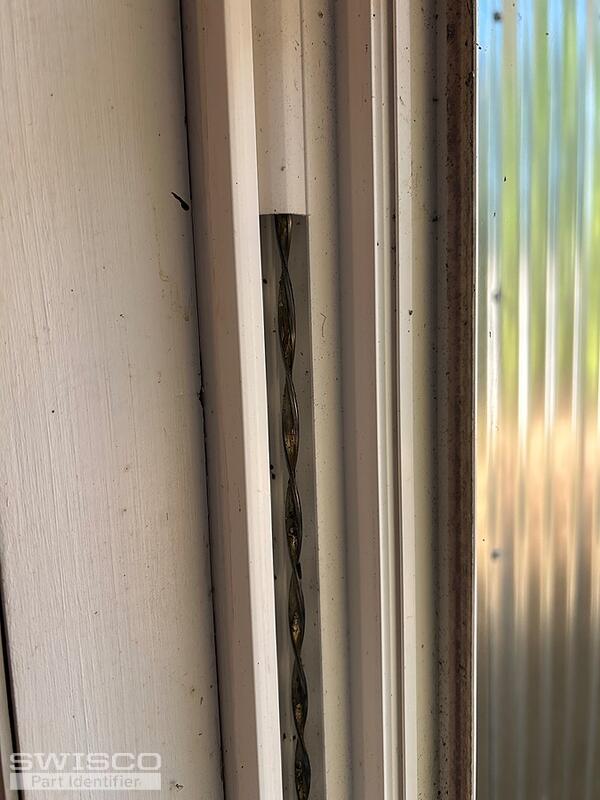

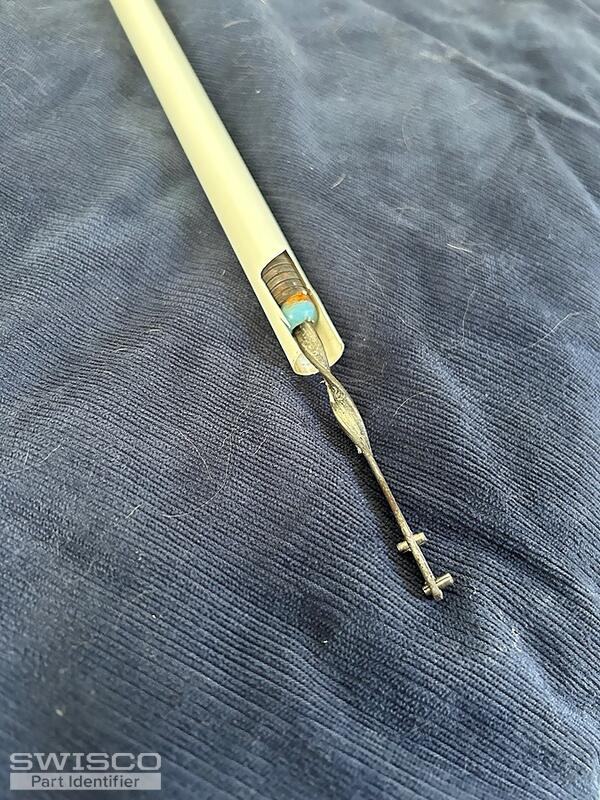

I'm unable to find the window manufacturer on my windows so I'm unsure of which parts to get to replace the pivot shoes and spiral balances. The balances are 28 inches for the tube length, 5/8" diameter and a blue tip

Casey · Accepted Answer

Hello,

Take a look at the (5/8") S600-28 blue tip spiral balances for tilt windows. You'll need to measure the plastic housing tube of an intact balance from the other side to ensure you purchase the correct length.

How to measure the tube length of the S600 spiral balance.

If you determine you need the pivot shoes as well, we would need to see yours removed from the window, as well as have you write out the exact width and thickness. That would help us narrow down your options. See the additional videos related on this page to assist you. Thank you!
