Window spring
Quick Learner from New York
Dec 22, 2023 8:51 pm
Hi there, I took two pictures of the spring needing replacement. The metal tube measures 30inches with a red tip shown in the photos. No visible markings or prints on them.
2 user uploaded images
3 Replies
Quick Learner from New York
Dec 22, 2023 9:05 pm

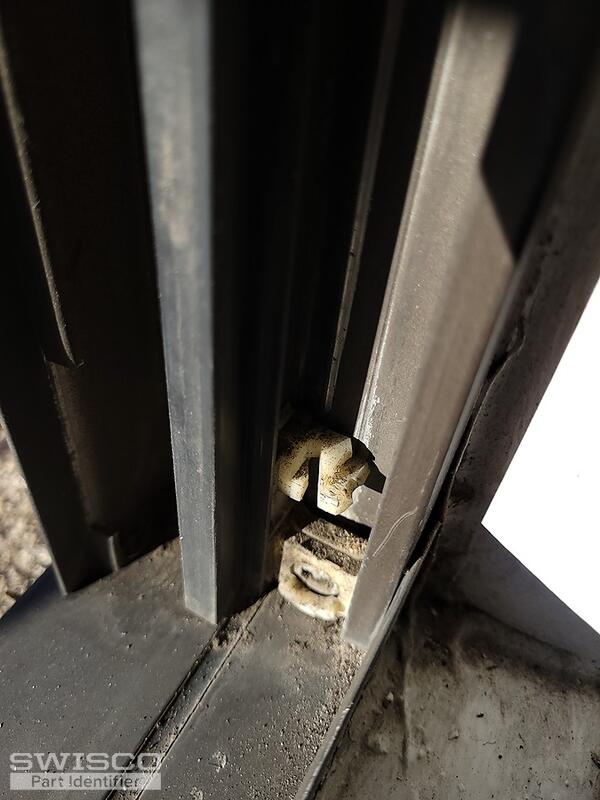

And here are some pictures of its tip and the broken pivot shoe.
Would be great if we could ID the pivot shoe model as well.
Thank you so much.
Would be great if we could ID the pivot shoe model as well.
Thank you so much.
2 user uploaded images
Emily from SWISCO
Dec 27, 2023 9:23 am
Hello!
The balance in your photos looks like either the Series 900 (3/8" diameter tube) or the Series 600 (5/8" diameter tube). However, I'm afraid I can't identify the pivot shoe from these photos. Would it be possible for us to see one in undamaged condition, removed from the window track? It'd be helpful to know the written-out thickness and width as well.
