Window spring

Contractor from Florida
Need replacement springs for traco window

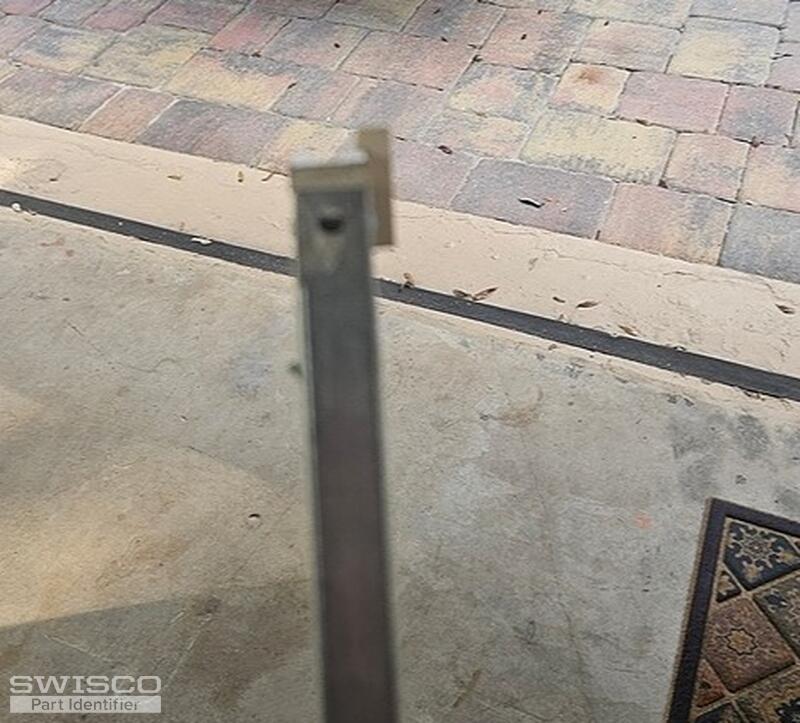

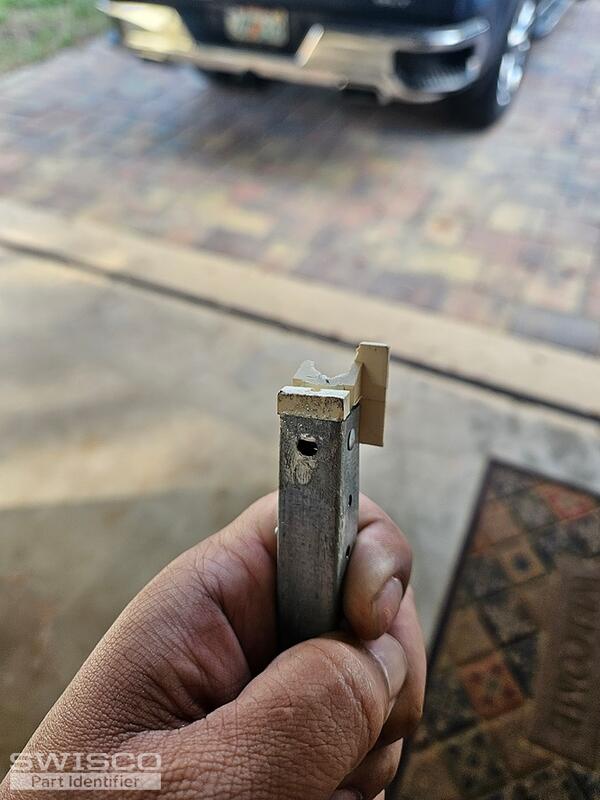

2 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but we are not able to identify your balance based on the photos you've provided. If you could show us the top and bottom fittings of your balance fully removed from the window, as well as the pulley clip, we can go from there. Thank you!

Contractor from Florida

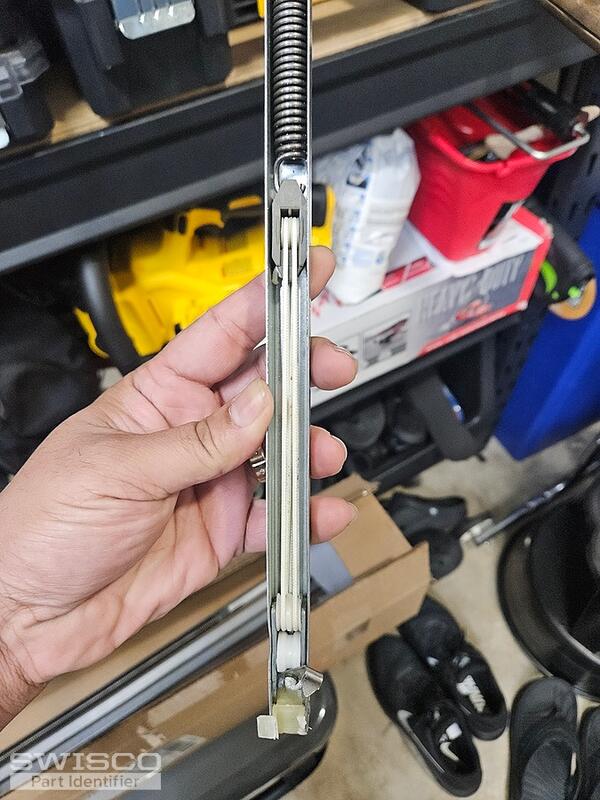

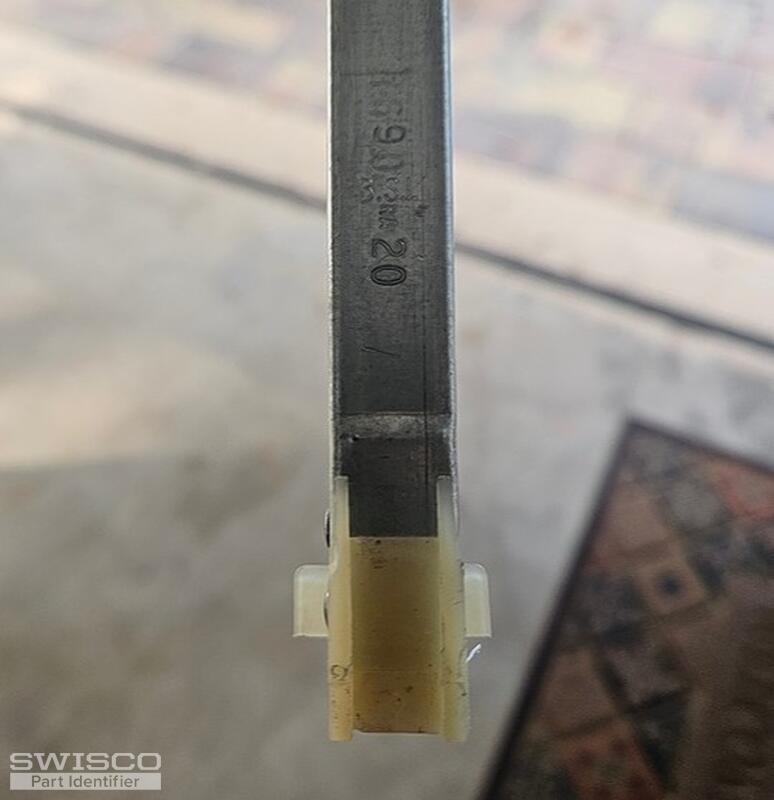

These are pictures of it fully removed
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

It looks like this balance uses the 19-041 top fitting. We don't sell a stock balance that uses this top fitting but we can still supply them through a custom order.

View of the opposite side of 19-041
View of the opposite side of 19-041

Dimensions for 19-041
Dimensions for 19-041

To get started, please measure the bottom shoe as shown below and confirm the depth of your fitting.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

We'll also need to know the exact weight of the window sash your balance support since your stamp code is from an outdated system. Lastly, please tell us the number of balances you need, with the minimum being two.
