Window spring

Start a new Discussion

Quick Learner from Philadelphia

Jul 19, 2025 12:17 pm

Need spring assembly for window - total length - about 30" and diameter about 1/2"

3 user uploaded images

7 Replies

Tom from SWISCO

Jul 24, 2025 12:56 pm

Thanks for reaching out to us. They don't make 1/2" spiral balances, so I recommend double checking the tube size. It should be more like 9/16", which would make this a match for either our Series 303 or Series 200, depending on the length of the internal rod. Look these two parts over and see what you think.

Quick Learner from Philadelphia

Jul 25, 2025 1:50 pm

Thanks, Tom! I am not sure that Series 200 Spiral Balance 29" is exact, but it looks similar. Balance shoe looks exact. What are the corresponding plastic parts that will fit this balance on a window frame? Like Bottom Sash Clips? It is about 3/4" wide.

Tom from SWISCO

Jul 25, 2025 4:29 pm

The parts that the shoe clips onto are the 17-019 (left) and 17-018 (right). Make sure to check your sash to ensure that yours are the same design and size.

Quick Learner from Philadelphia

Jul 28, 2025 7:49 am

Thanks Tom for fast reply.

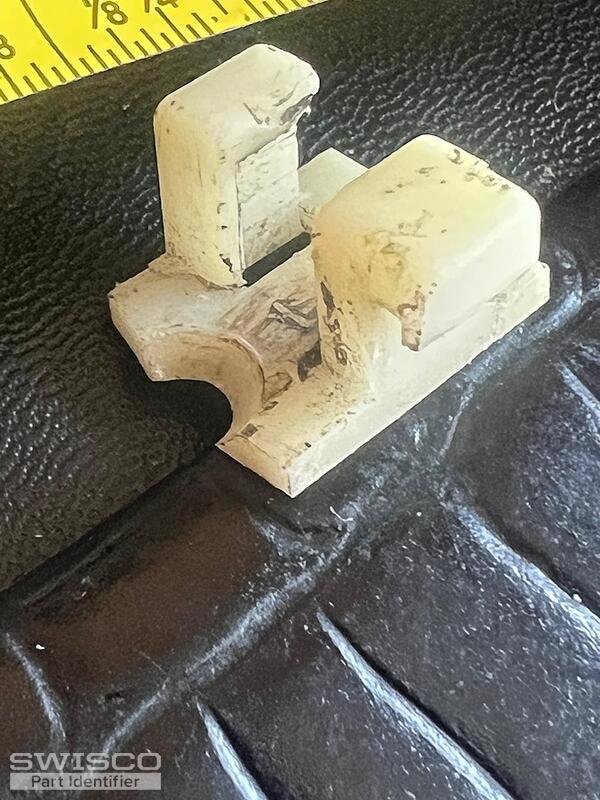

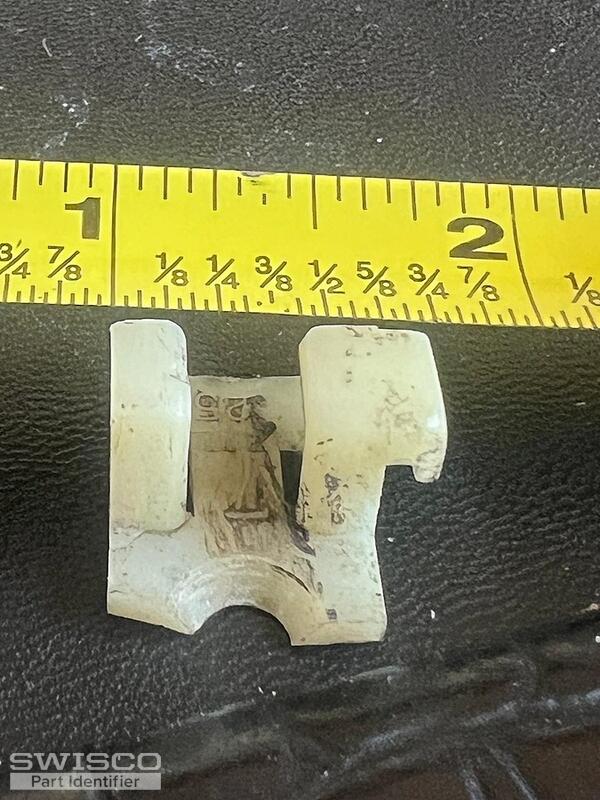

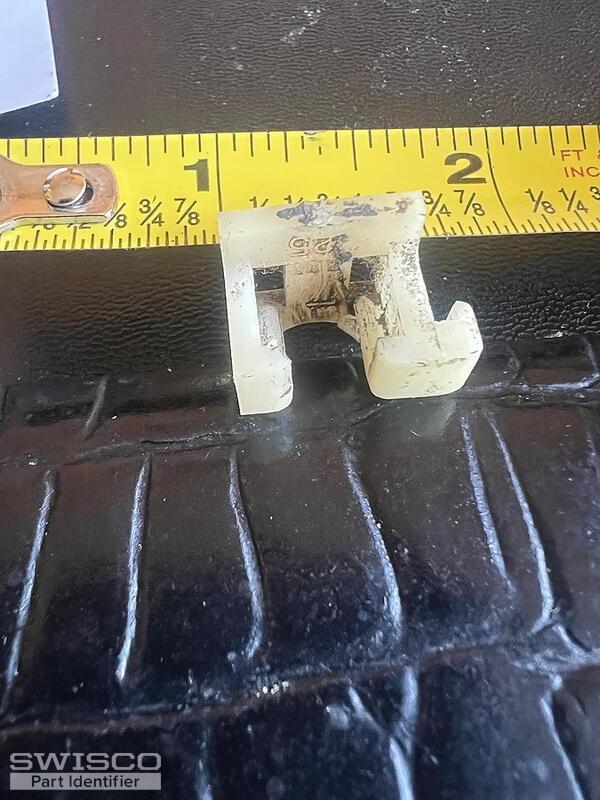

Bottom Sash Clips on my window - old and looks like it is discontinued. Is sash 17-018 (and 17-019) a good substitution even as a screw hole in 17-018(019) is not in the center?

5 user uploaded images

Paul from SWISCO

Jul 28, 2025 12:44 pm

Hey there, maybe I can help. I do recognize your clip and can verify that it's no longer made, but you can use our 17-005 with the Series 200. Just make sure to confirm the tube length, as well as the length of the interior spiral rod, like Tom mentioned.

Quick Learner from Philadelphia

Jul 28, 2025 1:22 pm

Thanks. I have ordered 17-050 - will try to use it with Series 200 29"
