Quick Learner

Jun 29, 2021 1:16 pm

The right side spring assembly broke

1 user uploaded image

7 Replies

Quick Learner from Chehalis Washington

Jun 30, 2021 6:12 pm

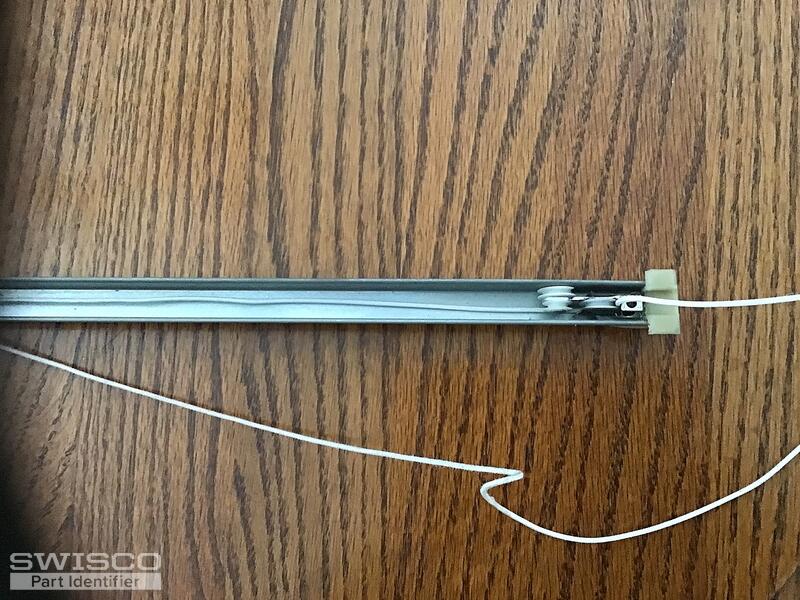

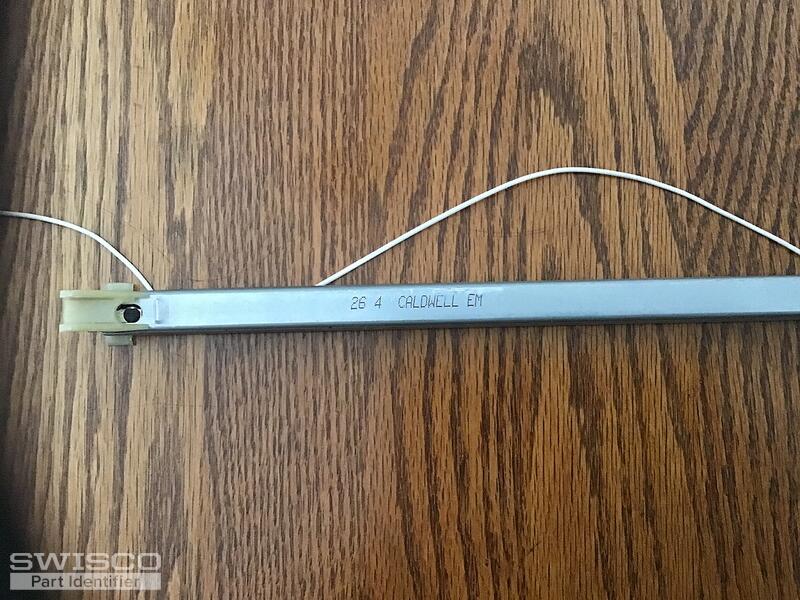

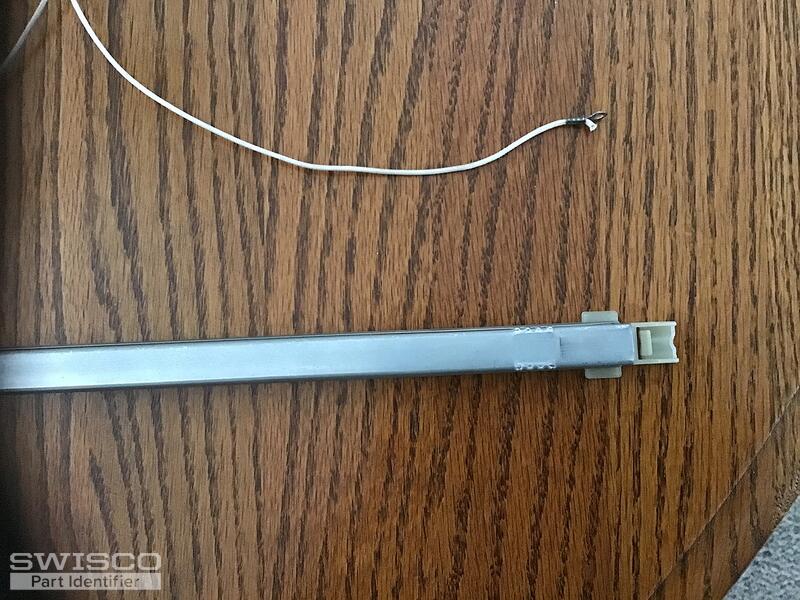

I'm not sure which ones I need but maybe you can see by the pics I send.

5 user uploaded images

Emily from SWISCO

Jul 1, 2021 10:58 am

Hi there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

If you have any further questions just let us know.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Chehalis Washington

Jul 1, 2021 3:28 pm

My channel is 5/8 wide and the plastic guide at the bottom is just over 1 inch. If I get the right one, I'd like to get 4 of them.

Emily from SWISCO

Jul 2, 2021 8:37 am

If your bottom nylon shoe is 1" then you'll need the S380, if it's 1-3/32" then you'll need the S385. You can also place an order on our website at your convenience.

Quick Learner from Chehalis Washington

Jul 2, 2021 10:27 am

Thank you Emily.

Emily from SWISCO

Jul 2, 2021 10:55 am

No problem! If you have any further questions just let us know.
