Window spring assy 1 of two.

Question

To whom it may concern.
I require two spring assemblies and the two screws that mount the spring assy. Also, the two lower plastic assemblies. that

Tom · Accepted Answer

Thank you for your patience during this incredibly busy season. I apologize for the long wait.

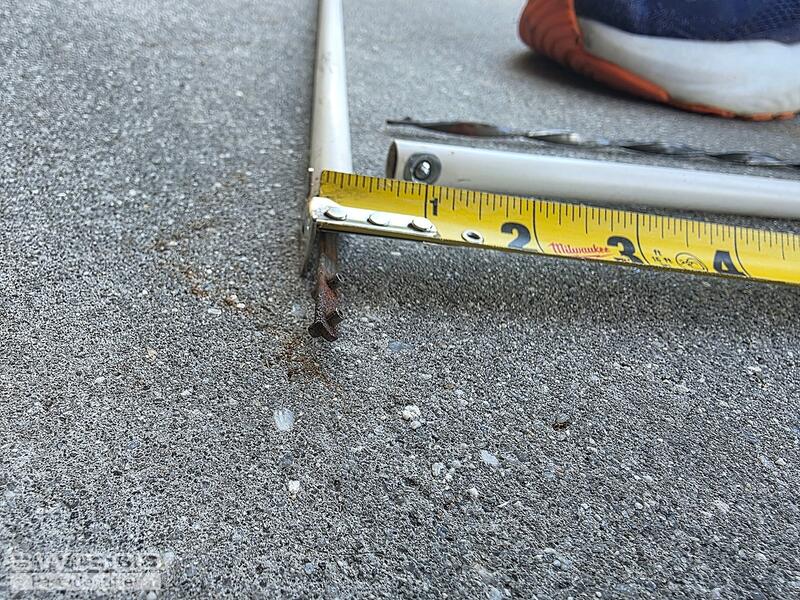

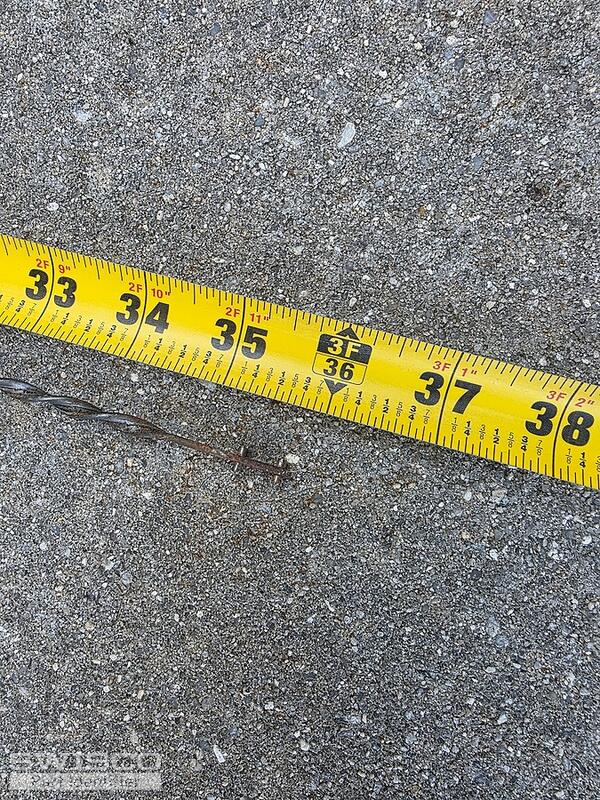

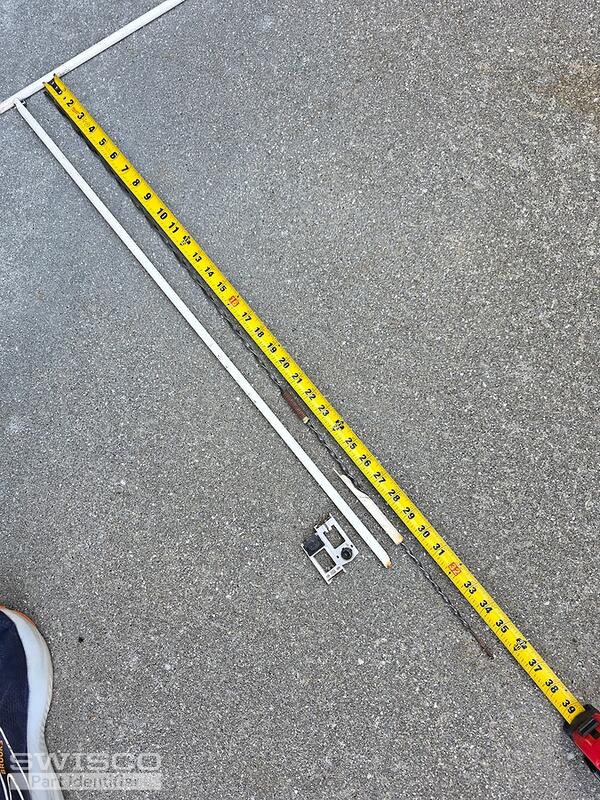

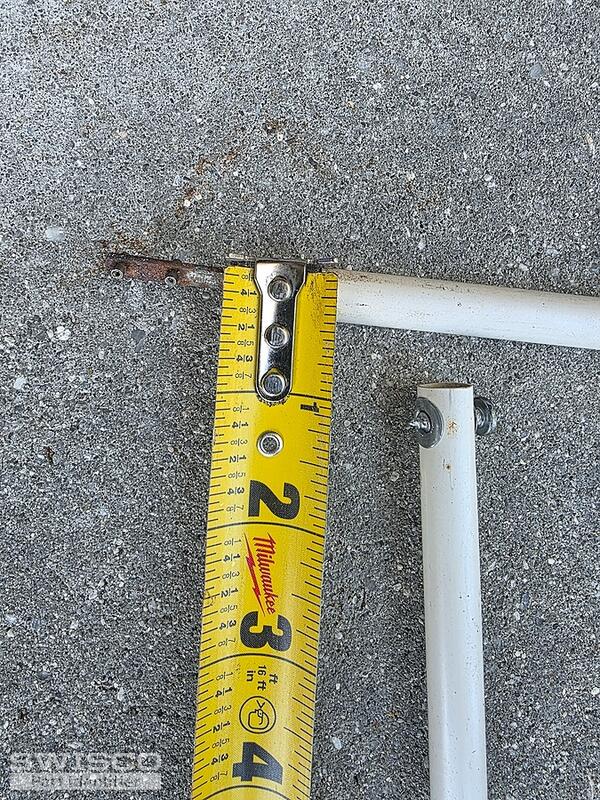

Your balance is either our 3/8" diameter Series 900 or 9/16" diameter Series 600. Please note that we cannot garner precise size from a photo of a tape measure, so you will need to measure your hardware yourself to verify the best option. Those are the only two sizes, so it's only going to be one or the other. Both use the 33-016 screw to install at the top, or any similarly sized screw you have.

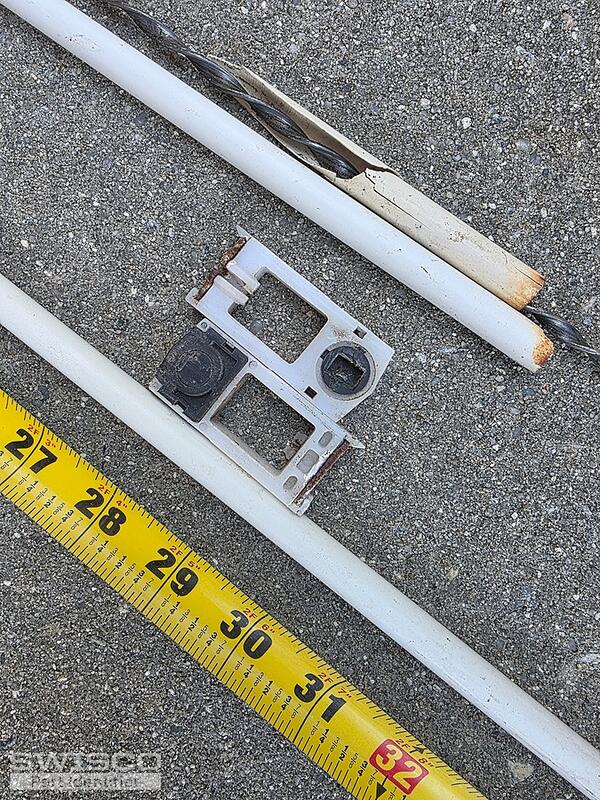

For the pivot shoe, see our 15-212. Make sure to compare all listed dimensions before you buy anything to be 100% sure that they line up.
