Window spring balancer

Start a new Discussion

Home Owner from California

Dec 16, 2017 12:34 pm

Hoping you can help track down this part - thanks so much!!

Patty

4 Replies

Tom from SWISCO

Dec 20, 2017 10:35 am

Looks like you need a coil type balance. Can you show me a picture of the pivot shoe it attaches to? That will help us find a good match.

Home Owner

Dec 20, 2017 2:36 pm

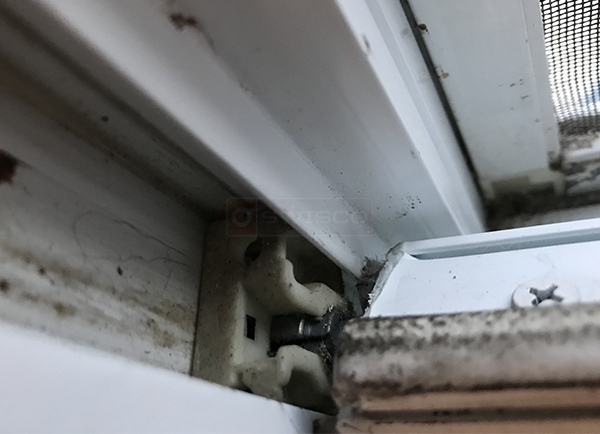

Here is the shoe - thank you so much for helping!!

Kind Regards,
Patty

User submitted photos of window hardware.

Paul from SWISCO

Dec 29, 2017 12:08 pm

Thanks for the photo, Patty. The pivot shoe you show is the 15-191, which uses 1/2" wide Series 160 coil springs. If the coil spring is broken, you will need the spring weight number stamped on the spring when ordering a new spring, since the Series is divided up by different spring weights.
