Window spring identify

Home Owner from Phoenix AZ

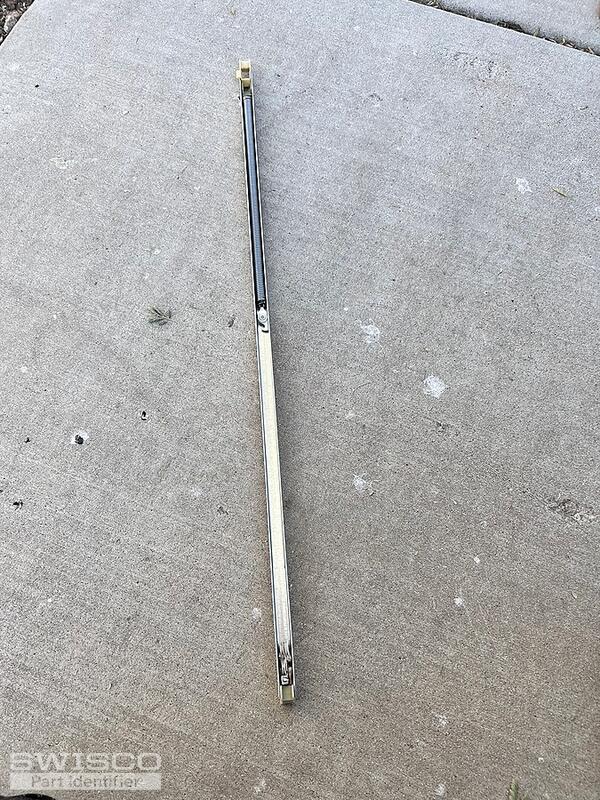

Can you let me know what is the correct part number to order window spring from your web site?
Thank you
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

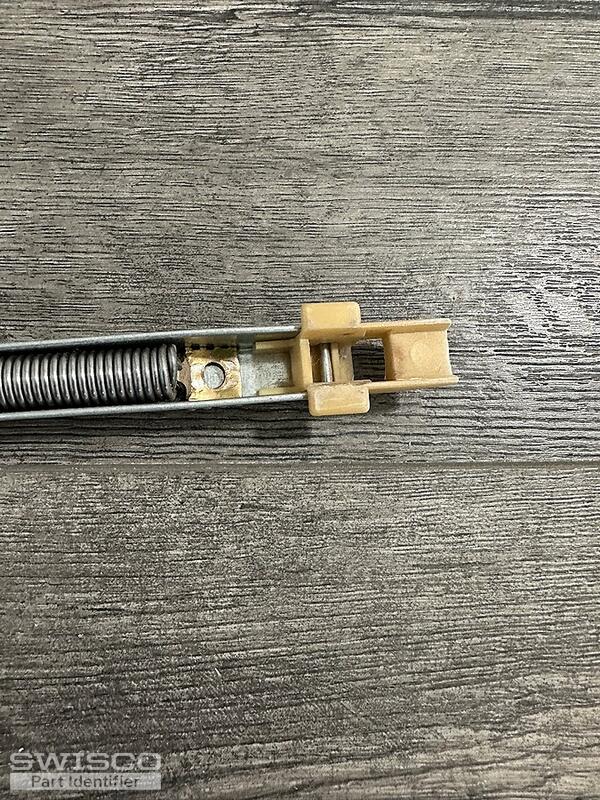

Thanks for your post! I am confident we have the balance replacement needed for your windows. I'll just need to see one more photo to narrow down the correct replacement. May I see a photo of the bracket in the center of the balance? This is the bracket that connects the spring and the string in the middle of the balance.

Please don't hesitate to reach out with any other questions you might have.

Home Owner from Phoenix AZ

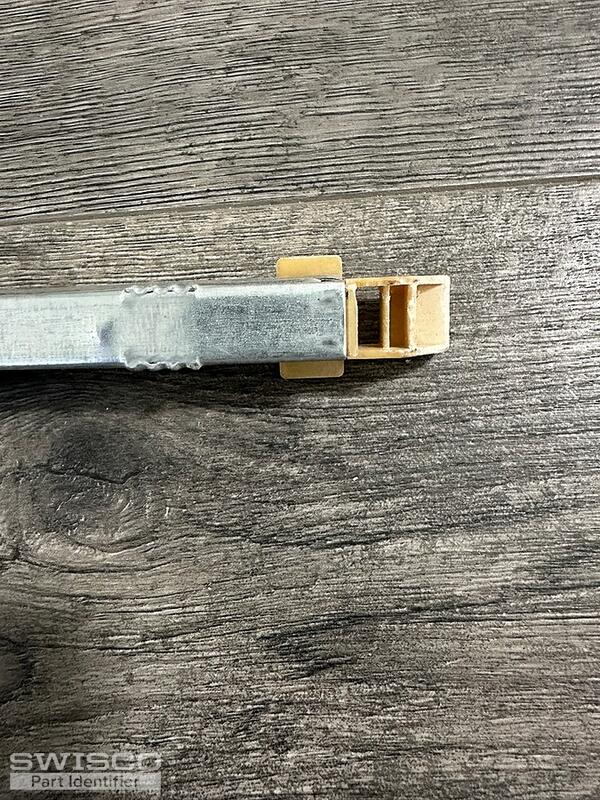

More picture
1 user uploaded image
Jasmine
Jasmine from SWISCO
SWISCO
Expert

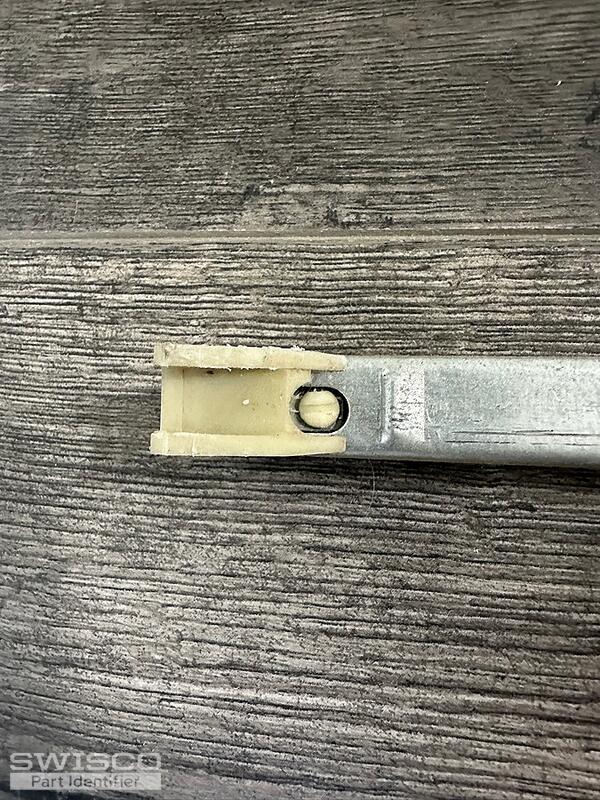

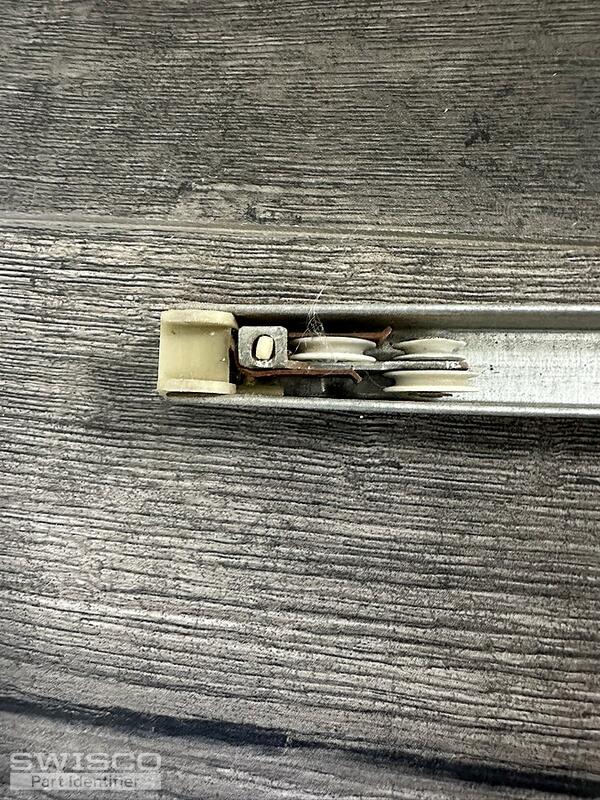

Thanks for the additional photo. Your balance can be replaced with the S395-29. Like yours it is assembled with a winged top guide and a wingless bottom shoe; the channel has a 29" length (not including the attachments).

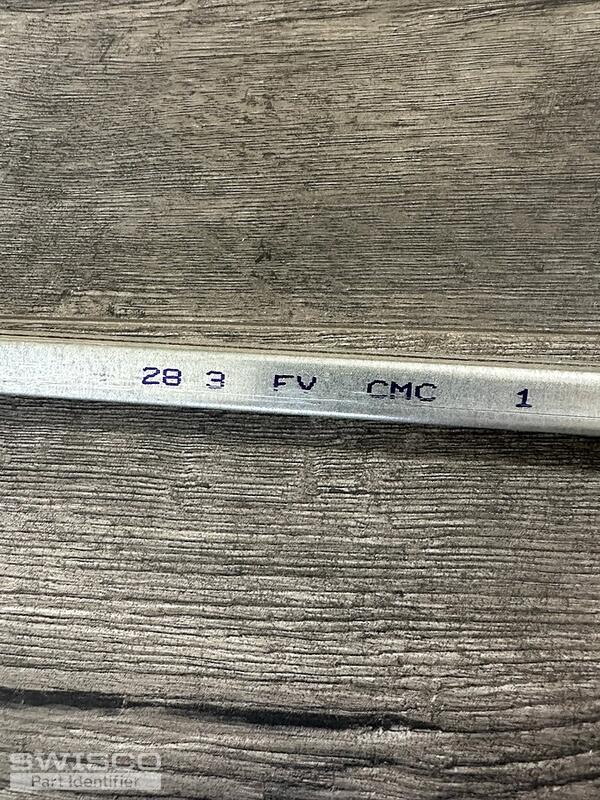

You can select the 2830 stamp option which will support a sash weighing 16 to 23 lbs.
