Looking window spring, shoe and piece that connects the window to shoe
Thanks

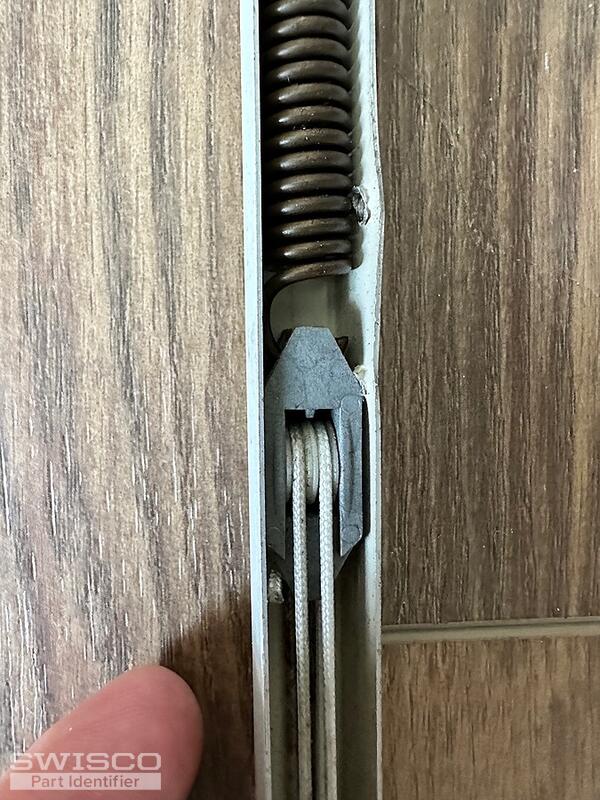

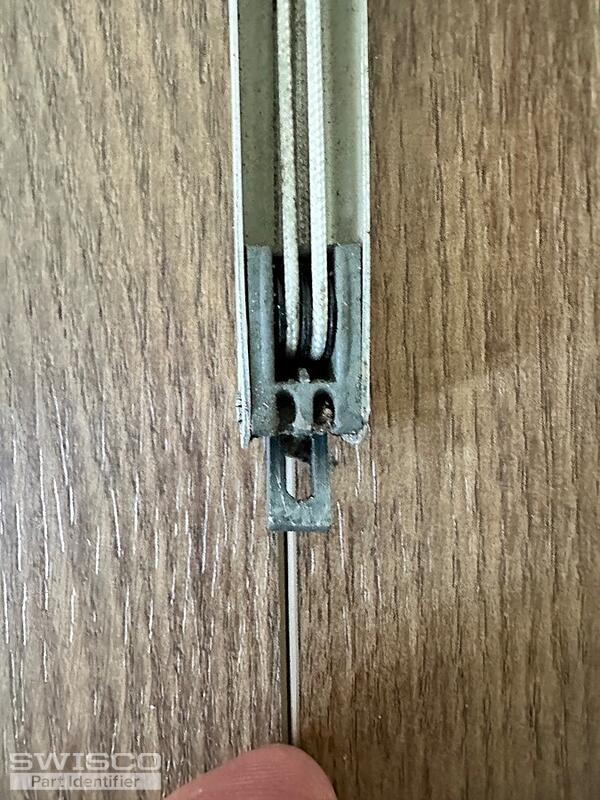

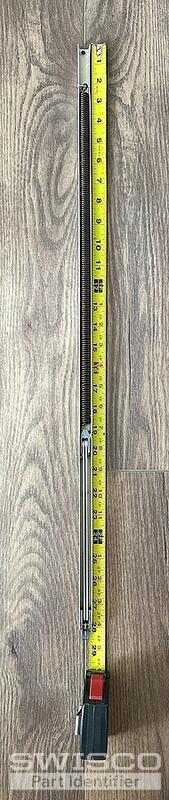

Window spring parts
Quick Learner from West Haven
Sep 15, 2024 2:12 pm
3 user uploaded images
4 Replies
Quick Learner from West Haven
Sep 16, 2024 1:18 pm

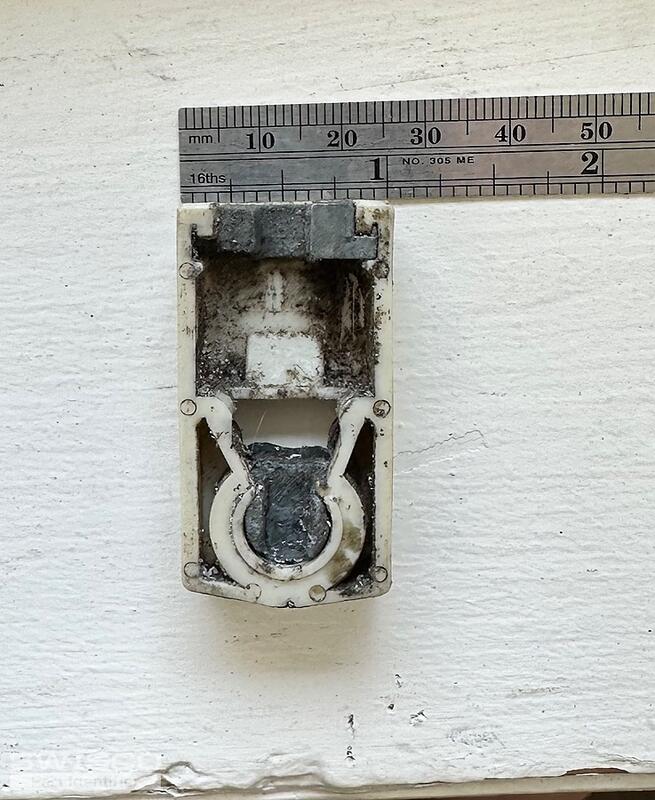

Window shoe is 1" x 1 3/4" by 1/2"
4 user uploaded images
Quick Learner from West Haven
Sep 16, 2024 2:10 pm

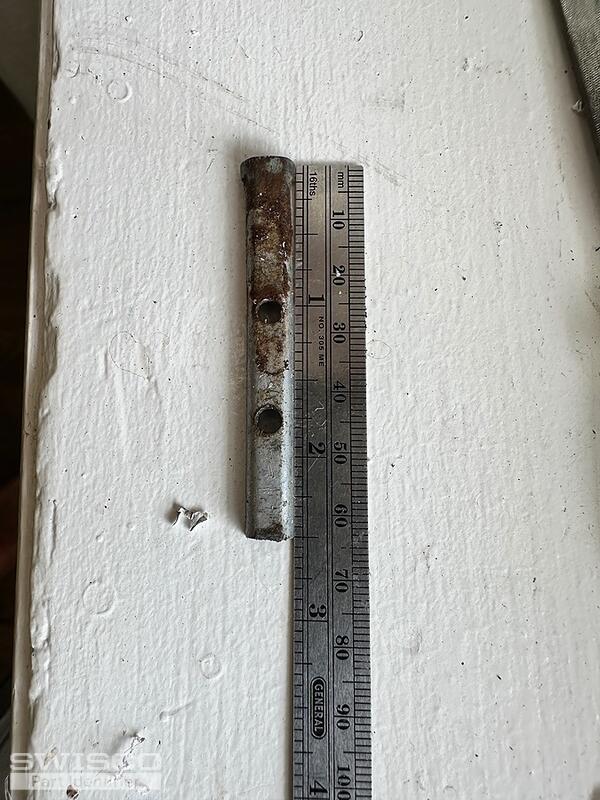

Also need 2.5 inch window pegs
1 user uploaded image
Casey from SWISCO
Sep 18, 2024 2:49 pm
Hello,
Your channel balance resembles the S770-28 (28B). As for the pivot shoe, take a look and compare the specifications of the 15-167 to yours.
Alternate image for 15-167
Unforutnately, we do not carry an exact match for the pivot bar but our 26-368 may work in its place. We also have the 26-021 which may possibly work better. Look over the dimensions below to determine which would be the best replacement.
Dimensions for 26-368
Alternate image for 26-021
