Window spring parts

Home Owner from Side of window
Please help window brand is Earthwise

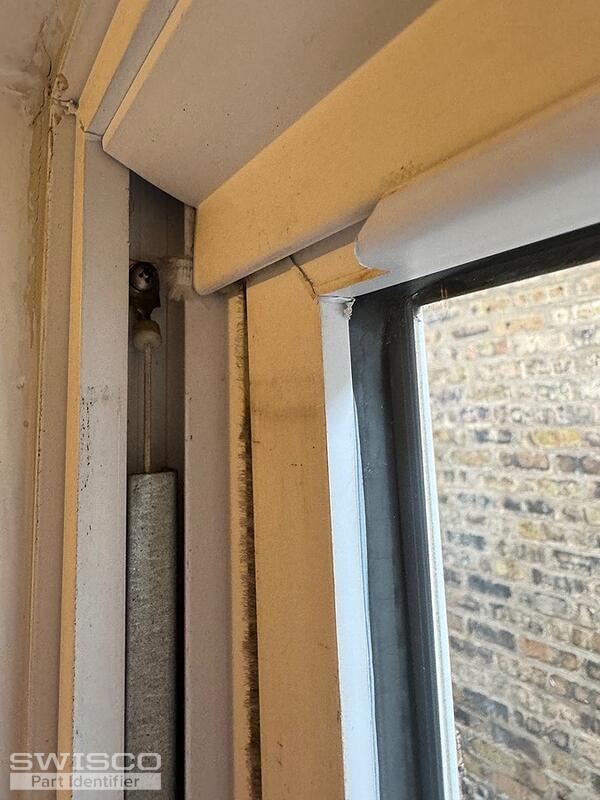

3 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! I am confident we can provide you with a replacement for your channel balance assembly but there are a few details I'll need to gather before I can make a recommendation.

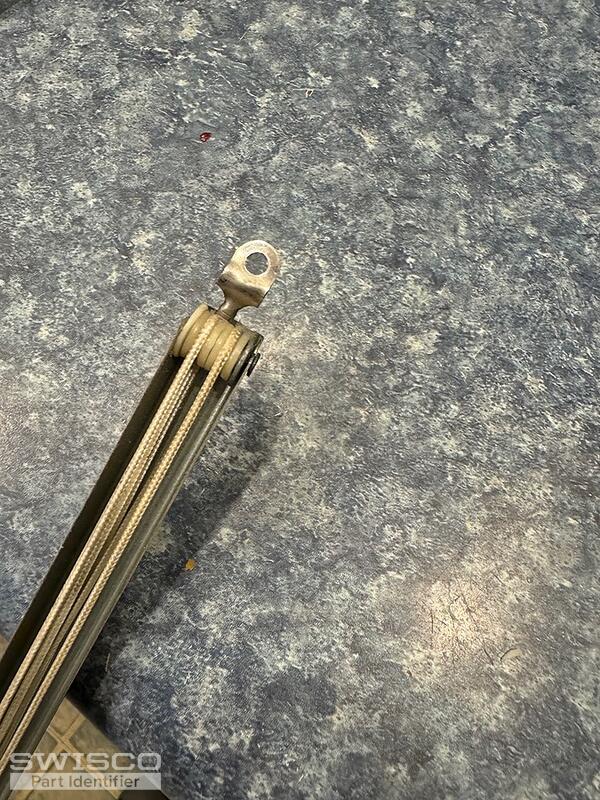

To start, may I see a photo the top attachment on the balance and the installation hole it attaches to? I'd also like to see a photo of an undamaged shoe (if possible). I suspect it has a 1-1/4" width but you'll need to double check the dimension; you'll also need to confirm whether the metal cam that fit into the shoe is closed off or opened in the back.

Please don't hesitate to reach out with any other questions you might have in the meantime.

Home Owner from Side of window
Thank you

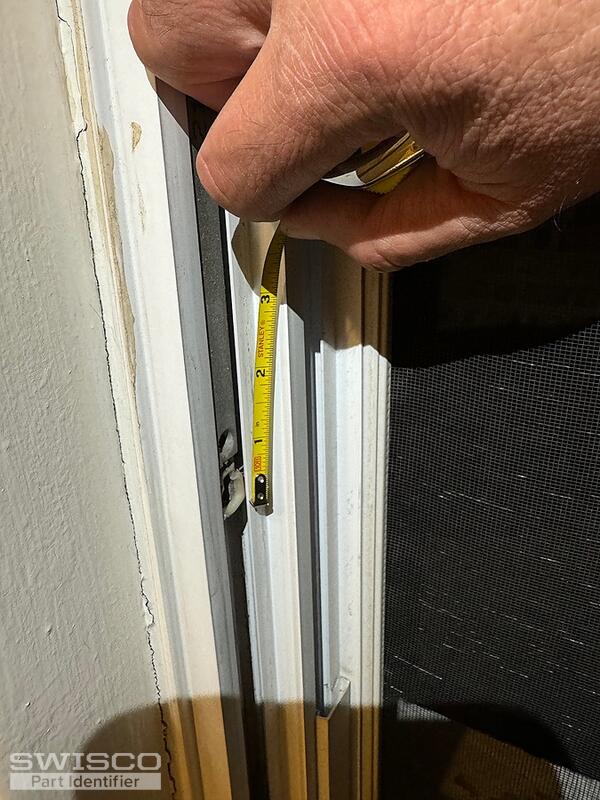

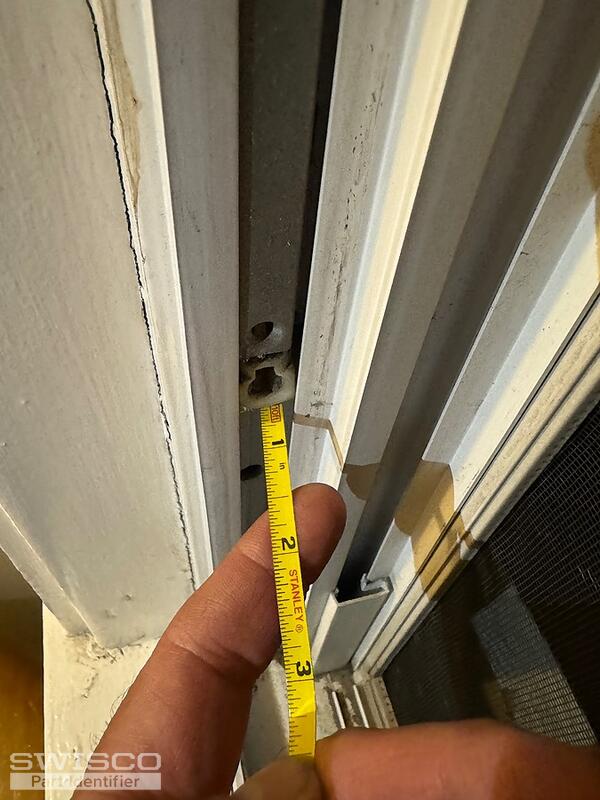

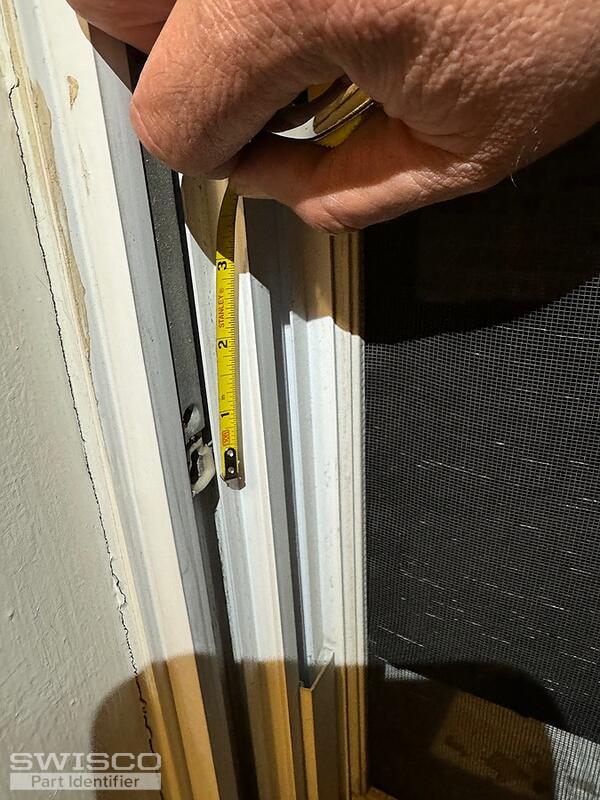

5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. I believe you can use the S795-22 to replace your existing balances. Although, to determine if this is the right fit for your window, you'll need to be sure to double check the length of the metal channel.

This balance will come assembled with the 15-195 1-1/4" T-Lock Shoe. I would suggest double checking the width of the shoe before making your purchase. The measurement taken in your photos is the thickness of the shoe, the width is across the bottom of the T-shape.

Regarding the stamp, you'll likely need the 22D stamp to replace the 21 4 stamp on your balance. Be sure to confirm that your sash weight falls between 21 to 24lbs.
