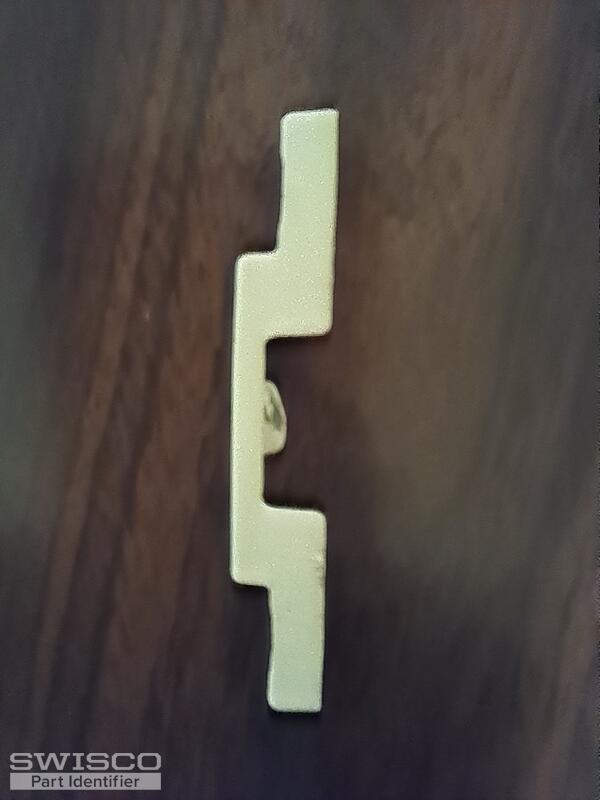

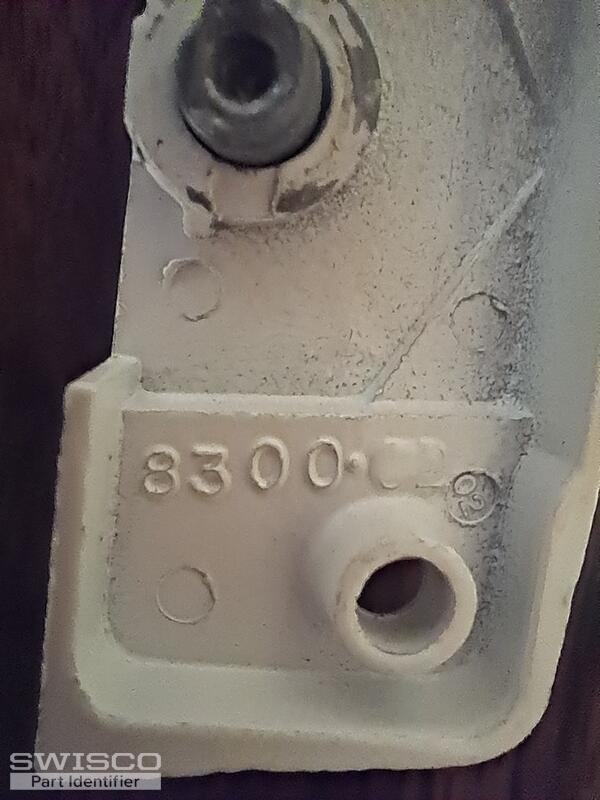

Looking to replace broken locks on Napco windows from 2002. Lock has 8300 on backside. 8301-2 on back of lever. 8313 00-1 on the gray metal part of lock. Measurement at the widest is 2 7/8". The screw holes on the locking part are 2 1/16 - 1/8 " wide. Screw holes on latch are 2 3/16 - 1/4 ".
Thank you for your help. Have not been able to find a close match locally. Really don't want to make more holes the the window.
Window sweep lock. White. Metal.
Quick Learner from Plainfield, IL USA
Aug 6, 2024 9:57 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Aug 8, 2024 1:12 pm
Hello,
Your sash lock is a similar style to the 90-278. Note that the installation holes measure 2-1/16" apart as shown below. Take a look and see if the specifications could work for your application. Thanks for posting!
Dimensions for 90-278
