Window swing arms

Quick Learner from Wayland MA

Sep 4, 2020 1:17 pm

Hello
Could you please help me identifying what part number to order

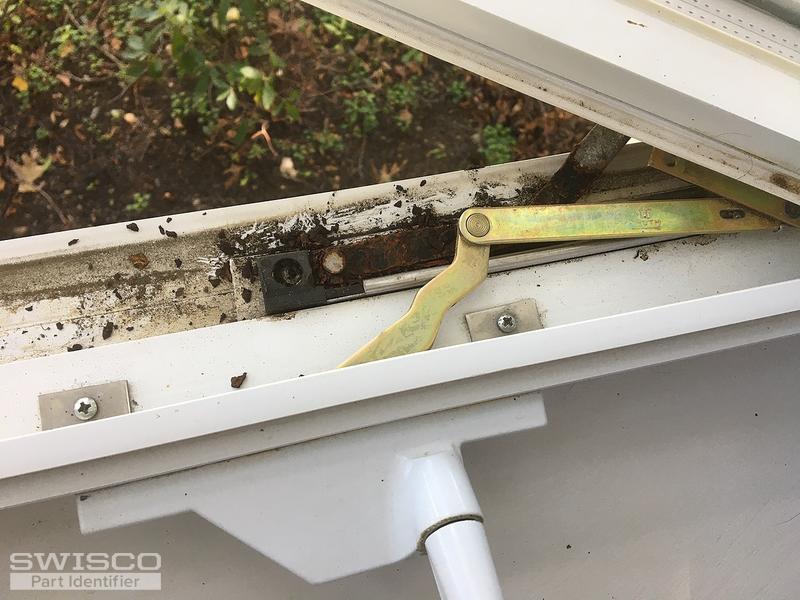

Attached photos are from our left and right windows. These arms are on the bottom side of the window and one of the brackets on those arms is completely rusted and disintegrated.
Would be great if you are able to identify the part number for right and left window bottom part. Also let me know any tips on measurements to Make sure I order the right part

4 user uploaded images

4 Replies

Casey from SWISCO

Sep 9, 2020 10:40 am

Hello,

Your operator looks like a match to our 38-188 dyad crank. Take a look and see how the dimensions compare. There is also a list of related items on the operator product page. Thank you!

Quick Learner from Wayland MA

Sep 9, 2020 12:01 pm

Hello
Thank you for getting back Casey. I was not able to find the link to the 38-188 dyad crank.

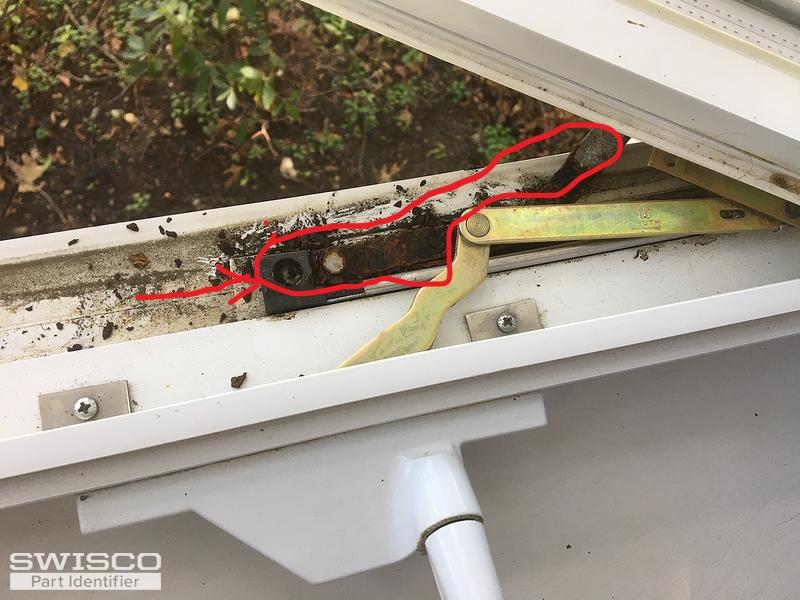

The crank on the windows is working fine but there is one piece rusted below - please see picture marked.
Not sure if its part of the crank assembly or can buy separate. (Looking for parts that fit for right and left windows)
Thanks much for your help.
Rishi

1 user uploaded image

Casey from SWISCO

Sep 9, 2020 12:53 pm

Ah, I see. The part you've circled below the operator is actually the window hinge. Take a look at our 36-048 hinge set and see how it compares to yours.
