Window tilt balances, pivot shoes, and top/bottom latches on window and frame

A quick learner from Anaheim, CA says:

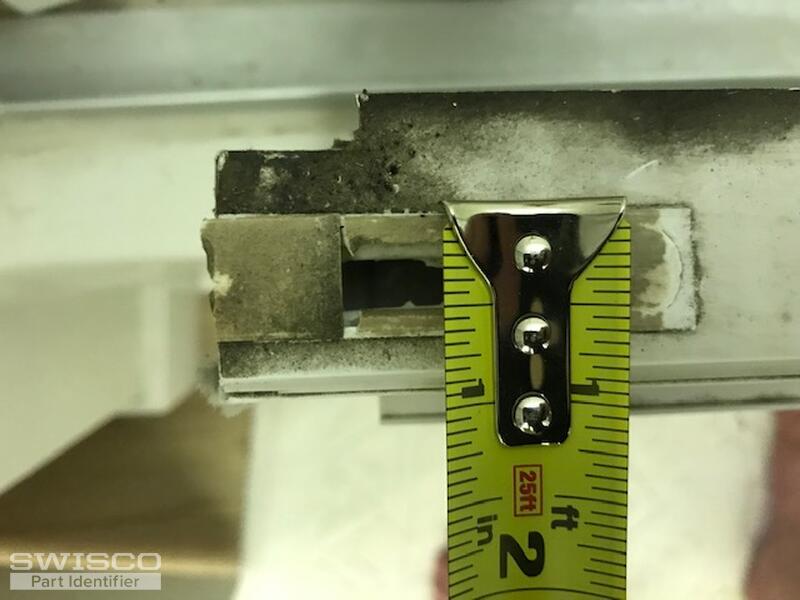

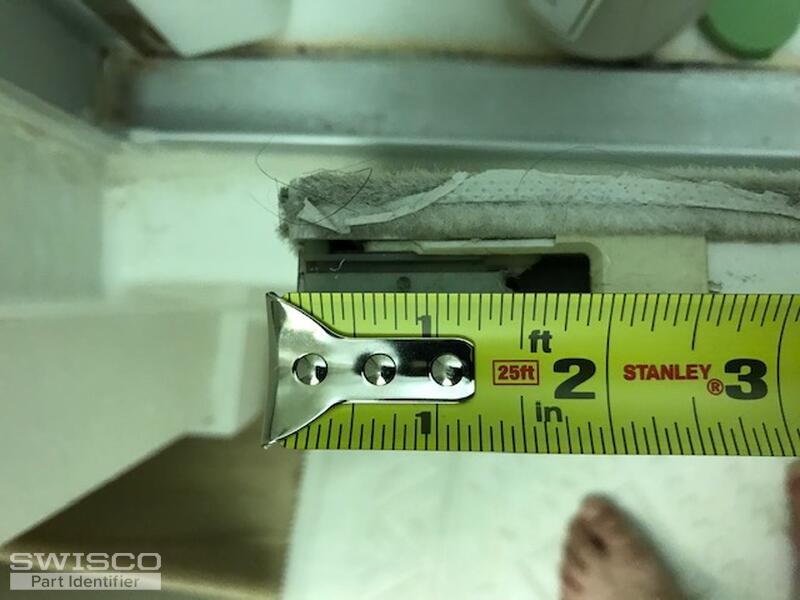

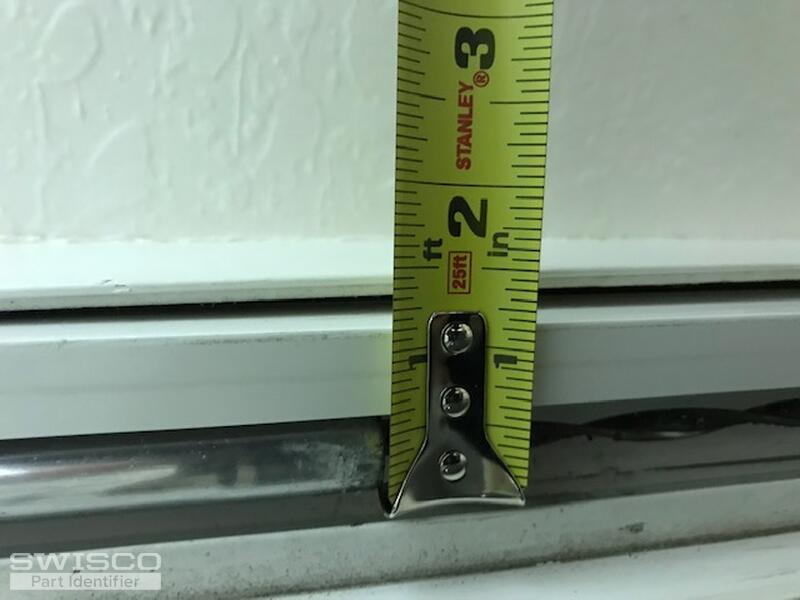

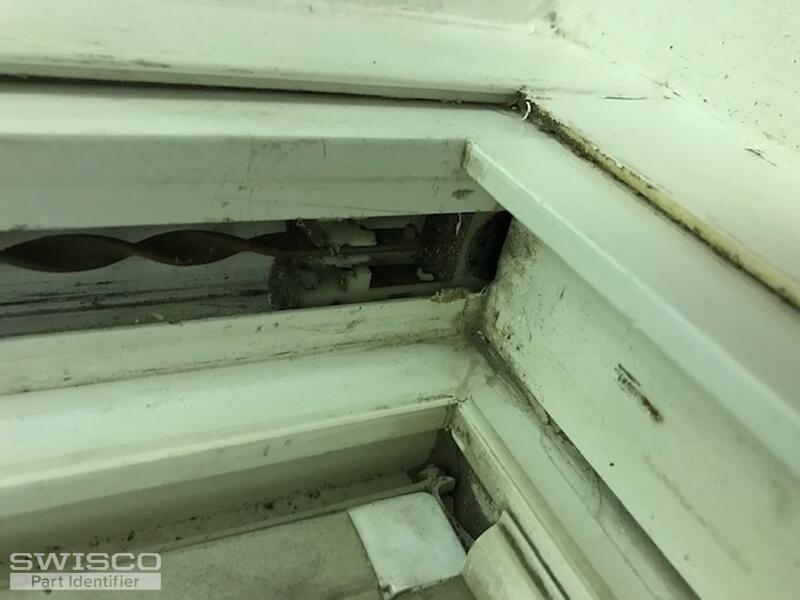

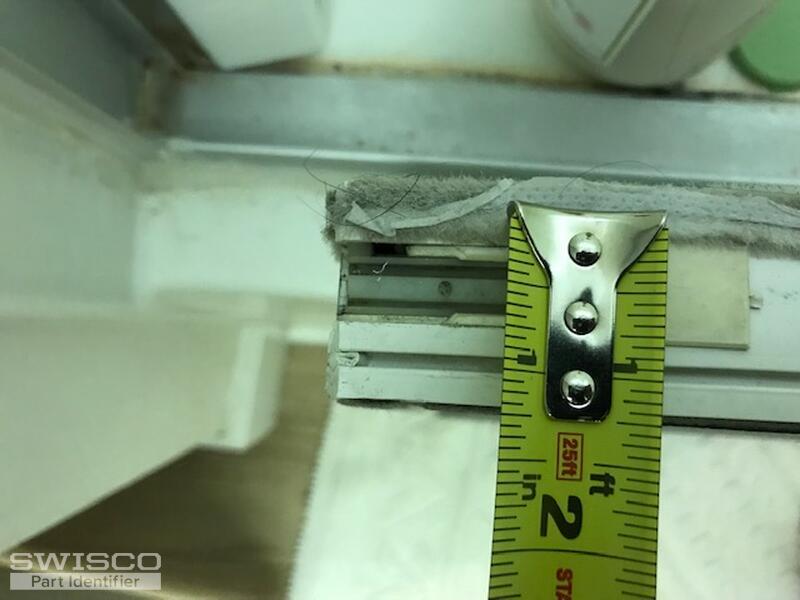

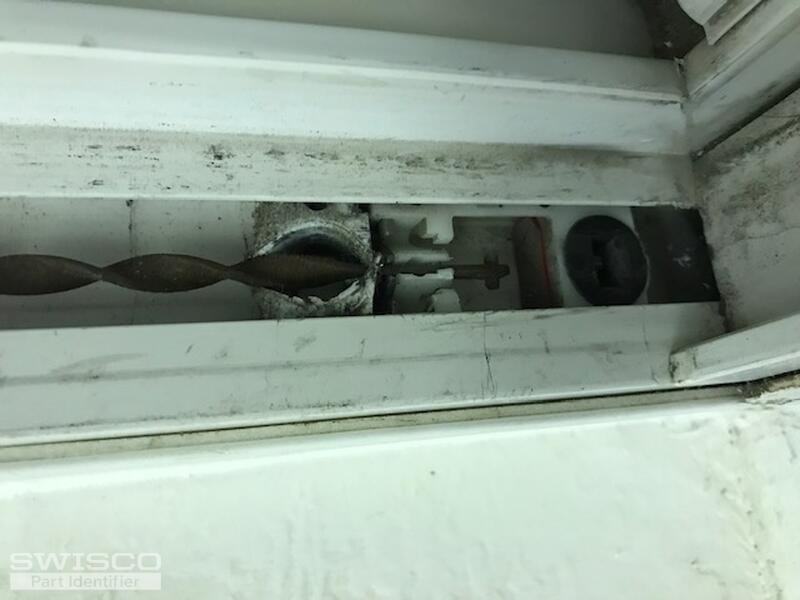

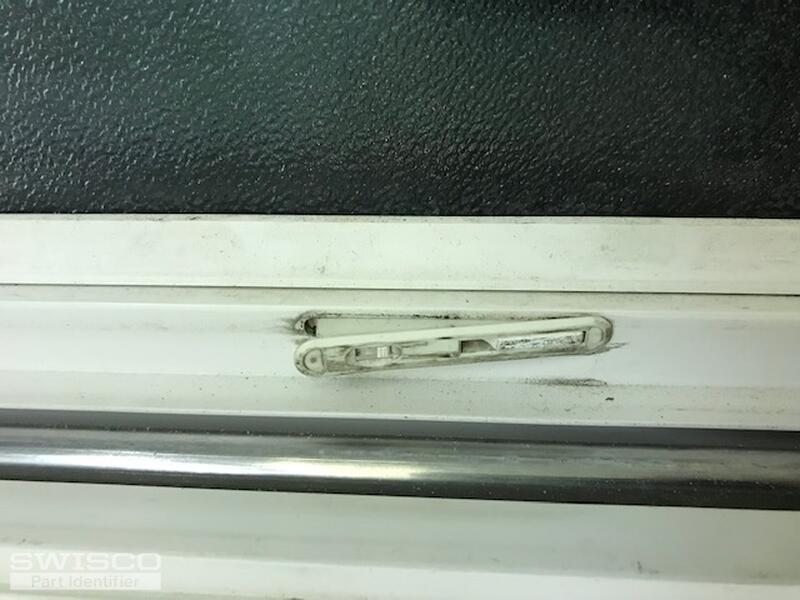

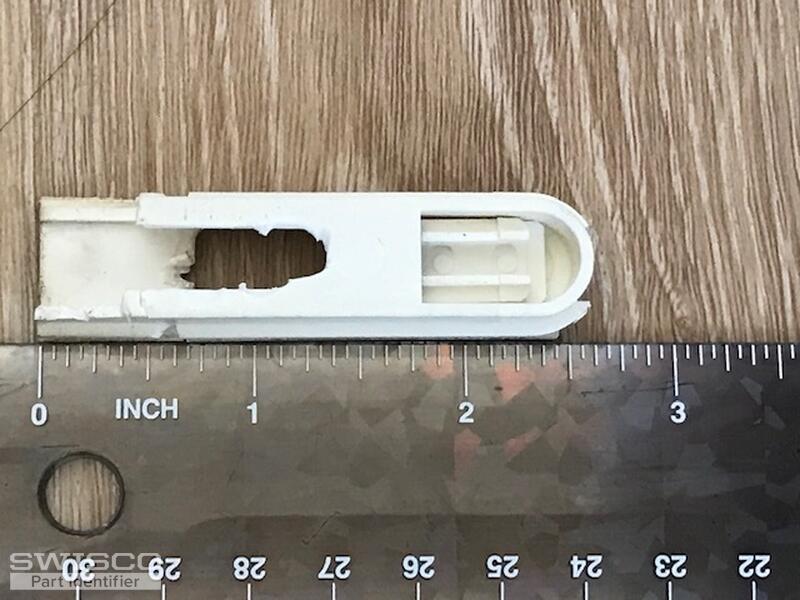

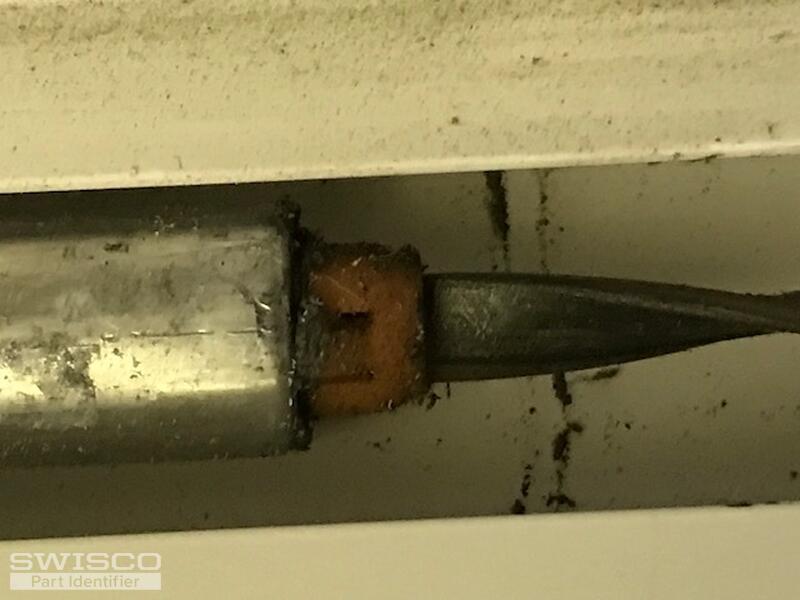

I need to order the part for my tilt window tilt balances, pivot shoes, and top/bottom latches on my window as shown in the attached photos. The window balance tube is 5/8" diameter and 24" long.
Thumbnail of the uploaded file named IMG_9724.jpg
Thumbnail of the uploaded file named IMG_9796.jpg
Thumbnail of the uploaded file named IMG_9802.jpg
Thumbnail of the uploaded file named IMG_9805.jpg
Thumbnail of the uploaded file named IMG_9809.jpg
A quick learner from Anaheim, CA says:
More photos.
Thumbnail of the uploaded file named IMG_9725.jpg
Thumbnail of the uploaded file named IMG_9734.jpg
Thumbnail of the uploaded file named IMG_9801.jpg
Thumbnail of the uploaded file named IMG_9802.jpg
Thumbnail of the uploaded file named IMG_9805.jpg
A quick learner from Anaheim, CA says:
More photos.
Thumbnail of the uploaded file named IMG_9799.jpg
Thumbnail of the uploaded file named IMG_9801.jpg
Thumbnail of the uploaded file named IMG_9803.jpg
Thumbnail of the uploaded file named IMG_9805.jpg
Thumbnail of the uploaded file named IMG_9806.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for reaching out to us. If your spiral balance is 5/8" in diameter then my top recommendation would be the S600-24.

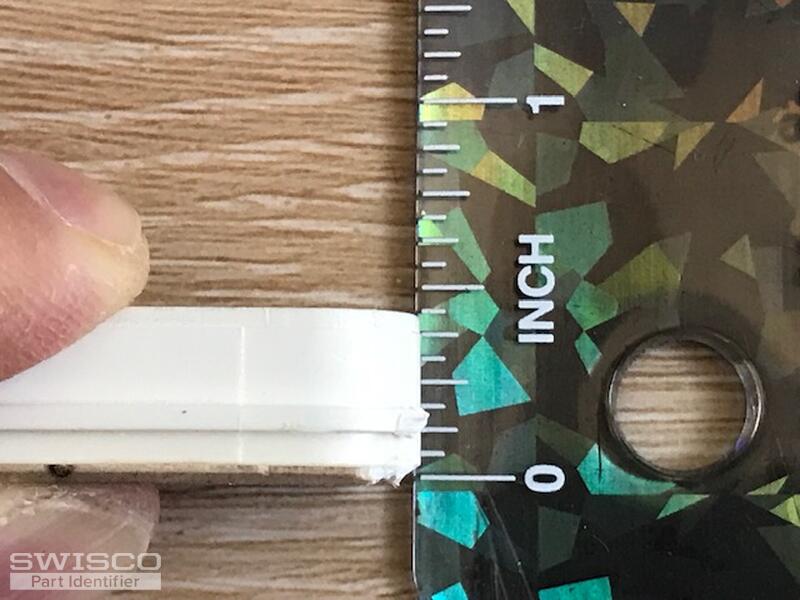

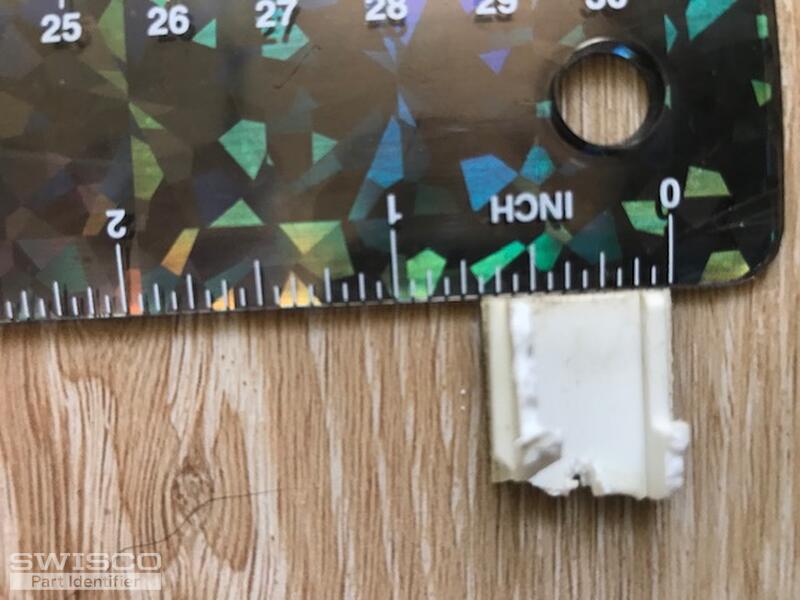

As for the tilt latch, it's tough to make out what it is when it's so damaged. A strong possibility is our 26-243 and 26-244 (sold separately), but you will need to carefully review our photos and information to verify.

Lastly, I cannot determine the size of your pivot shoe to make a recommendation. Start with the 15-047 and see how well its dimensions compare to your original.
